HIGH EFFICIENCY FIG PASTE PROCESSING MACHINE / FIG JAM MAKING MACHINE

HIGH EFFICIENCY FIG PASTE PROCESSING MACHINE / FIG JAM MAKING MACHINE photo-1
HIGH EFFICIENCY FIG PASTE PROCESSING MACHINE / FIG JAM MAKING MACHINE photo-2
HIGH EFFICIENCY FIG PASTE PROCESSING MACHINE / FIG JAM MAKING MACHINE photo-3
HIGH EFFICIENCY FIG PASTE PROCESSING MACHINE / FIG JAM MAKING MACHINE photo-4
HIGH EFFICIENCY FIG PASTE PROCESSING MACHINE / FIG JAM MAKING MACHINE photo-5
Negotiable MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
2013
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

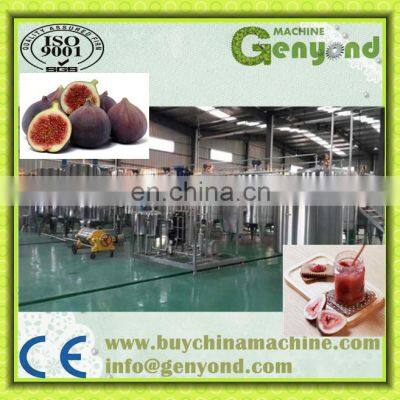

full automatic fig jams processing line for sale

1. Processing Line

Washing – spraying – air drying--Precooked softening--beating---screw pump----vacuum concentration (dispensing excipients)---screw pump---pneumatic filling---cap sealing-----sterilization----packaging



2.main equipments

1). Small floating wash, spray, clean, dry, choosing good  fruit machine

Material:SUS304 2B,Stainless steel roller design. Front with spray, floating per hour capacity: 200 ~ 300 kilograms of fresh fruit.



2).Miniature delicate beater

Type

DSM - 1

Size

935 x 320 x 1200 mm

Power

4.5 KW

Capacity

350 kg/hour

The first phase screen size

Φ 1.5 mm

The second phase screen size

Φ 0.6 mm (optional)

Stand structure, single channel to run the program

Touching material part is the SUS304 stainless steel



3) muti-functional vacuum concentrating tank

Mainly used for jam, dairy products, sugar and pharmaceutical kind of element and various material with full after mixing, heating sterilization. It is widely used in the the food, beverage, pharmaceutical industry. The material is  SUS304 or 316 stainless steel, GMP production standard.

Equipment parameters:

Effective capacity: 200 l,

Plate for 304 # stainless steel;

Circular glass audition, with light.

Bladder polishing for 300 mesh, the appearance of the 2 b inferior smooth;

The scraper agitator to material for vacuum concentration;

Fully enclosed top with 0 ° manhole, and fly dust breather hole, 360 degrees of rotation CIP cleaning head;

Digital thermometer, temperature display range 0 °C - 100 °C;

Equipment for three layer insulation with heating, temperature control structure.

Double top feed port φ 51;

Equipment contains stainless steel operating platform.

HIGH EFFICIENCY FIG PASTE PROCESSING MACHINE / FIG JAM MAKING MACHINEHIGH EFFICIENCY FIG PASTE PROCESSING MACHINE / FIG JAM MAKING MACHINEHIGH EFFICIENCY FIG PASTE PROCESSING MACHINE / FIG JAM MAKING MACHINEHIGH EFFICIENCY FIG PASTE PROCESSING MACHINE / FIG JAM MAKING MACHINE
