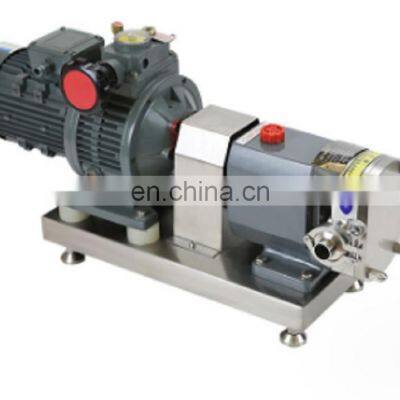

Stainless Steel High Viscosity Rotor Pump Food Grade Transfer Pump Sanitary Colloid Pump
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Business Type:
Trading Company
Year Established:
2013
Factory Size:
Below 1,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Stainless Steel Plate Heat Exchanger Food Heating Heat Exchanger Plate Hot Water Circulation CoolerNegotiableMOQ: 1 -
Industrial Ice Cream Production LineNegotiableMOQ: 1 Set
-
Margarine Shortening Ghee Production LineNegotiableMOQ: 1 Set
-
Factory Margarine Shortening Ghee Production Line Processing Plant Ghee Making Machine PriceNegotiableMOQ: 1 Set
-
Factory Margarine Shortening Ghee Making Machine Processing Plant Production LineNegotiableMOQ: 1 Set
Product Description
--------------Rotary Lobe Pump Product Despription--------------
Sanitary Stainless Steel SS316 Syrup Honey Pump Chocolate Pump Rotor Rotary Lobe Pump
Character:
1,There Is A Certain Gap Between Rotor And Rotor, No Friction Coefficient,So Pump Have A Long Service Life Time.
2, It Is Easy To Install And Disassemble,And It Is Convenient To Maintain, Clean .There Is Less Wearing Parts.
3, High Efficiency And Energy Saving, Stable Transportation, Low Failure Rate, No Leak Sealing And Low Noise.
4, The Viscosity Of The Transportable Medium Is ≤2000000 Cp, And The Pump Can Transfer Slurry Containing 70% Solids.
5, It Can Transport Gas, Liquid And Solid Three-Phase Mixture Materials.
6, With Vfd, The Flow Can Be Adjusted At Will, And The Pump Can Be Used As A General Metering Pump.
7, If Need,We Can Do The Pump With Heating Jacket.
8, Applicable Temperature: -50 °C -250 °C.
9, Types Of Inlet/Outlet Connection: Flange Joint,Threaded Connection; Quick Connection.
10,Seal Type: Mechanical Seal And Packing Seal.
2, It Is Easy To Install And Disassemble,And It Is Convenient To Maintain, Clean .There Is Less Wearing Parts.
3, High Efficiency And Energy Saving, Stable Transportation, Low Failure Rate, No Leak Sealing And Low Noise.
4, The Viscosity Of The Transportable Medium Is ≤2000000 Cp, And The Pump Can Transfer Slurry Containing 70% Solids.
5, It Can Transport Gas, Liquid And Solid Three-Phase Mixture Materials.
6, With Vfd, The Flow Can Be Adjusted At Will, And The Pump Can Be Used As A General Metering Pump.
7, If Need,We Can Do The Pump With Heating Jacket.
8, Applicable Temperature: -50 °C -250 °C.
9, Types Of Inlet/Outlet Connection: Flange Joint,Threaded Connection; Quick Connection.
10,Seal Type: Mechanical Seal And Packing Seal.
Rotor pump is also named rotary lobe pump, three lobe pump, sole pump,etc. When the 2 simultaneous reverse rotating rotors(with 2-4 gears)revolve, it produces suction force at the inlet(vacuum),which intakes the material delivered.The 2 rotors divide the rotor housing into many smaller parts and revo-Ive in the sequence of a→b→c→d.When it revolves to position a,only housing I is filled with medium;when it revolves to position b,housing B encloses part of the medium,when it goes to position c,housing A encloses medium,and finally it goes to position d,then housing A,B and II are interlinked and the medium is transported to the outlet.As this process is repeated,medium(material)is transpor-ted continuously.
Working Principle of Rotary Lobe Pump:
The rotary lobe pumps we also called them lobe rotor pumps. They are one popular transfer pump to conveying the food, beverage, pulp and paper, chemical, pharmaceutical and so on. The rotor lobe pump relies on two synchronously rotating rotors that generate suction (vacuum) at the inlet during the rotation. Thereby sucking in the material to be conveyed. Both rotors split the rotor chamber into different spaces. Then operate in the order of 1-2-3-4. The medium is delivered to the discharge port. In this cycle, the medium (material) is continuously transported out by the source.
Different Kind of Lobe Options for the Rotor Lobe Pump
1.Single Lobed Rotor: More suitable for conveying media which containing large granular materials. The breaking rate of large granular materials is low. But on other hand it is not popular one for used, Because its pulsation is large and pressure is low, also the volume is small for the space of transferred materials.
2. Two-Lobed Rotor (Butterfly Rotor) More suitable for conveying media which containing small and medium-size granular materials. The breaking rate to these materials is low and getting slightly pulsating. The volume is a little less than three-lobed rotor for the space of transferred materials.
3.Three-Lobed Rotor It is widely used one rotor. The volume is bigger than other type of rotors for the space of transferred materials. Also each performance is higher than other rotors. Just it has a certain rate of breakage to the particulate materials on the transport way.
4.Multi-Lobed Rotor(4-12) The volume is more smaller for the space of transferred materials and breaking rate more higher when the quantity of rotary vane of rotor be increased, . Just the transport way more stable.
-------------- Application------------------
Dairy Products: Yogurt, Cream, Ice Cream, Cheese And Whey.
Beverages: Beer, Wort, Yeast, Soft Drinks, Fruit Concentrates, Fruit Drinks.
Food: Tomato Sauce, Vegetable Paste, Seasoning, Sweeteners, Yeast Paste, Salad, Meat Emulsion, Edible Oil.
Candy: Syrup, Cream Stuffing, Fruit Puree, Fruit Filling, Pudding, Jam, Jelly, Chocolate.
Cosmetics: Creams And Lotions, Hair Gels, Hair Dyes, Essential Oils.
Drugs: Pill, Extract, Emulsion, Paste.
Chemicals: Fats, Solvents, Resins And Polymers, Dyes...
Beverages: Beer, Wort, Yeast, Soft Drinks, Fruit Concentrates, Fruit Drinks.
Food: Tomato Sauce, Vegetable Paste, Seasoning, Sweeteners, Yeast Paste, Salad, Meat Emulsion, Edible Oil.
Candy: Syrup, Cream Stuffing, Fruit Puree, Fruit Filling, Pudding, Jam, Jelly, Chocolate.
Cosmetics: Creams And Lotions, Hair Gels, Hair Dyes, Essential Oils.
Drugs: Pill, Extract, Emulsion, Paste.
Chemicals: Fats, Solvents, Resins And Polymers, Dyes...
Rotor pump is also named rotary lobe pump, three lobe pump, sole pump,etc. When the 2 simultaneous reverse rotating rotors(with 2-4 gears)revolve, it produces suction force at the inlet(vacuum),which intakes the material delivered.The 2 rotors divide the rotor housing into many smaller parts and revo-Ive in the sequence of a→b→c→d.When it revolves to position a,only housing I is filled with medium;when it revolves to position b,housing B encloses part of the medium,when it goes to position c,housing A encloses medium,and finally it goes to position d,then housing A,B and II are interlinked and the medium is transported to the outlet.As this process is repeated,medium(material)is transpor-ted continuously.
