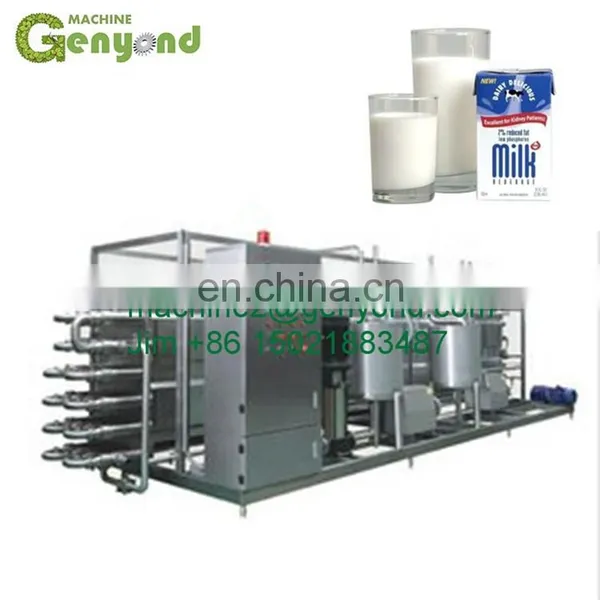

Automatic MILK Tube UHT Sterilizer with factory price
- T/T Credit Card
You May Like
Product Description
Tubular UHT sterilizer,It is suitable for all kinds of aseptic filling packaging like brick tetra pak, paper package, glass bottle...
Features Specifications: Tube UHT sterilizer (tube uht sterilizer,sterilization machine)
We has three mainly speceification of tube UHT sterilizers as follow:
·Hot water spray retort : The machine performs various types of high-pressure sterilization. Sterilization is achieved through the use of non-atomized hot water droplets. The sterilized comprises a retort that is capable of receiving multiple trays of materials, a pressurized air intake system for introducing pressurized air into the retort, an exhaust system and multiple spray units capable of spraying liquid such that at least one spray unit is disposed adjacent to each tray of material. It is further defined to include a heat exchanger and a pump for removing the liquid from the retort, passing it through the heat exchanger and delivering the liquid to the spray units.
·Shower spray rotary (still) retort sterilizer: TY shower spray rotary (still) retort sterilizer is specially designed to sterilize foods in pouches and flexible plastic containers such as pop cans , plastic bottles, glass bottles and heating bags, etc.
Shower spray retort sterilizer sprays high pressured hot water to the packaging food by nozzles located at the processing tank.
·Hot Water Immersion Retort sterilizer: hot water spray retorts are specially designed to sterilize foods in pouches and flexible plastic containers .
sterilizer(tube uht sterilizer,sterilization machine)
sterilizer:
SYSTEM MERIT
1, Automatic degree of system is high
2. small temperature difference of heat exchange
3. high precision of temperature control
4.strong capability of anti-fouling
5.small energy consumption
6. good traceability of product
for milk,juice,etc.

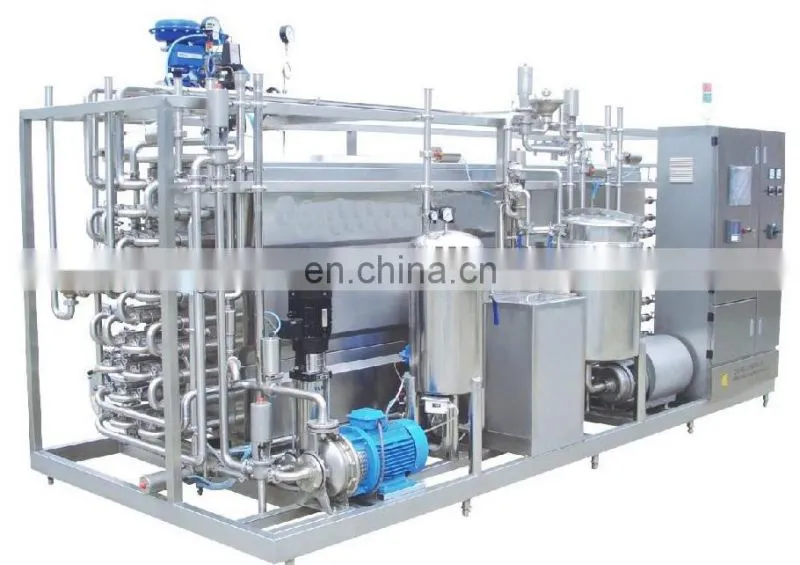

The unit comprises:
- Frame

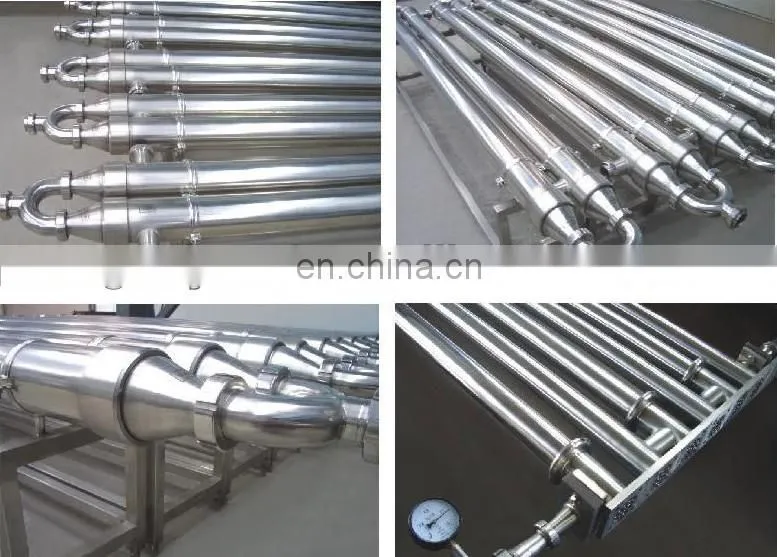

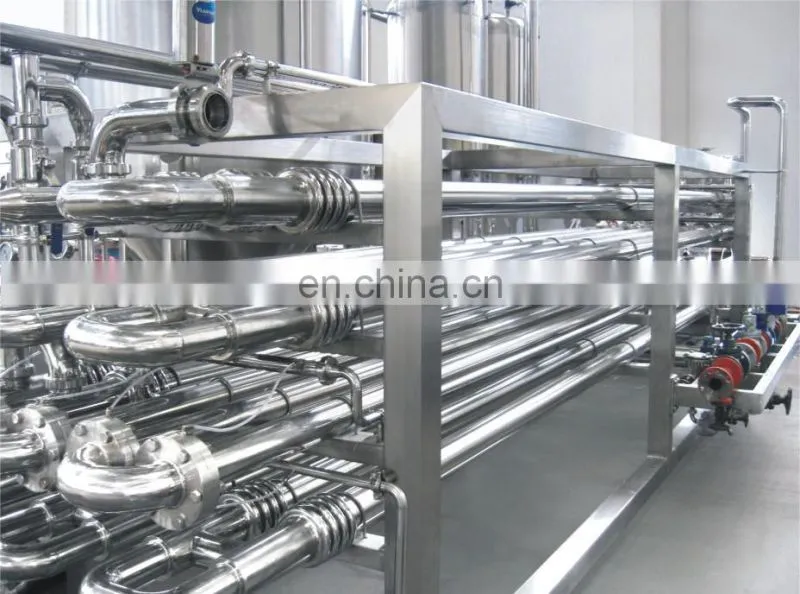

- Set of tubular heat exchangers with:
Regenerating section
Sterilization section
Hot water section
Cooling section
- Balance tank
- Product pump
- Holding tube
- Hot water pump
- Control panel with:
PLC controller
Color Human Machine Interface
Alarm for high and low temperature
Alarm for high temperature and low flow in hot water section
Start/stop buttons for pumps
Indicator for and control of pasteurizing temperature
- Set of internal pipes, valves and fittings
The unit is designed for CIP via recirculation over the balance tank and dosing of chemicals automatically.
Parameters
Temperature profile: 5°C→65°C →95°C / 30S→140°C / 4S→25°C
Ice water 1:1 (≤2°C Spare) Cooling water 1:1(30°C Spare)
modle | GY-UHT-1 | GY-UHT-2 | GY-UHT-3 | GU-UHT-4 | GY-UHT-5 |
Production capacity(L/H) | 1000 | 2000 | 3000 | 4000 | 5000 |
Inlet temperature | 5°C | 5°C | 5°C | 5°C | 5°C |
Holding time(s) | 4-15 | 4-15 | 4-15 | 4-15 | 4-15 |
Sterilize temperature | 105~143°C | 105~143°C | 105~143°C | 105~143°C | 105~143°C |
Product outlet temperature | 20 | 20 | 20 | 20 | 20 |
Icewater inlet temperature | ≤2°C | ≤2°C | ≤2°C | ≤2°C | ≤2°C |
Steam pressure | 0.5MPa | 0.5MPa | 0.5MPa | 0.5 MPa | 0.5 MPa |
Steam consumption | ~150Kg/h | ~210Kg/h | ~280Kg/H | ~350Kg/h | ~420Kg/h |
Compressed air pressure | 0.6MPa | 0.6MPa | 0.6MPa | 0.6MPa | 0.6MPa |
Compressed air consumption | 50L/H | 50L/H | 60L/H | 60L/H | 70 L/H |
External dimension (homogenizer excluded) | 3500×2000×2500 | 3500×2000×2500 | 4500×2500×2200 | 5000×2000×2200 | 5000×2000×2200 |
Total weight of machine | 1700kg | 2000Kg | 2200 Kg | 2500Kg | 2800kg |
