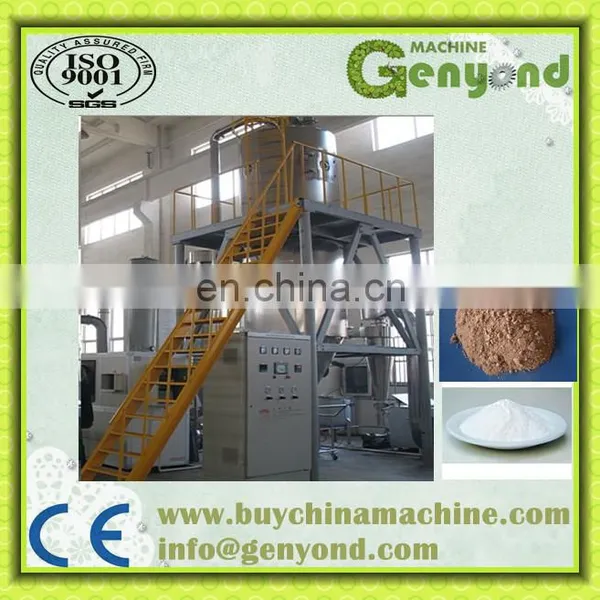

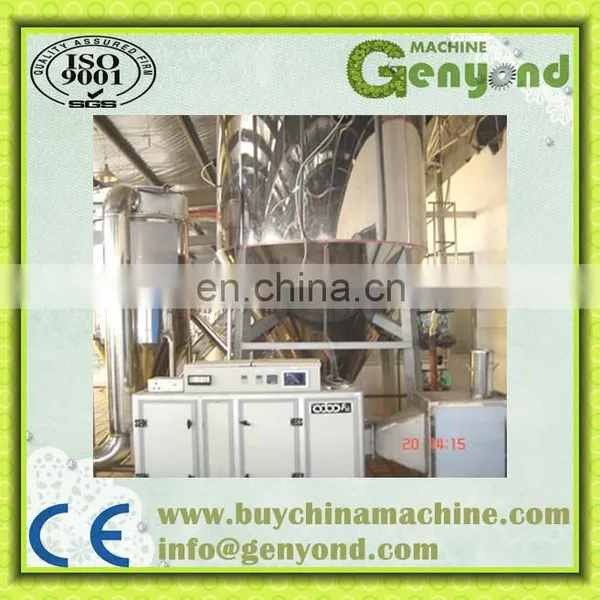

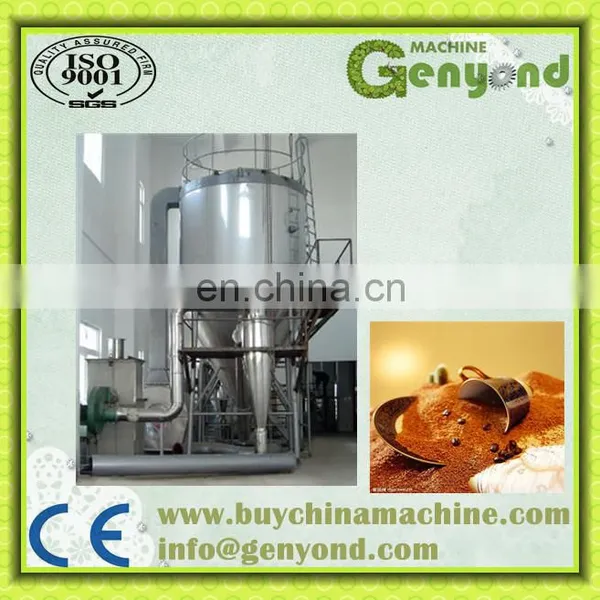

Centrifugal Atomizer Industrial China Spray Dryer
- T/T Credit Card
You May Like
-
japanese Tofu making machine for soybean milk /tofu processing
-
industrial boxed Tofu equipment for soybean milk /tofu maker processing machine
-
automatic japanese Tofu making machine for soybean milk /tofu processing
-
Sanitary Stainless Steel Mini Milk Pasteurizer Machine
-
Factory Genyond Complete soybean milk / powder / tofu production plant processing line
-
commercial soya milk /tofu production line
Product Description
Introduce
Spray drying is the technology most widely used in the liquid technology shaping and in the drying industry.The drying technology is most suitable for producing solid powder or particle products from liquid materials,such as:solution, emulsion, suspension and paste-state liquid materials, For this reason,when the particle size and distribution of the final products, residual water contents, mass density and the particle shape must meet the precise standard, spray drying is one of the most desired technologies.
Working Principle
After been filtered and heated the air enters into the air distrbutor on the top of the dryer.The hot air enters into the drying room in the spiral form and uniformly. Passing through the high-speed centrifugal sprayer on the top of the tower,the material liquid will rotate and be sprayed into the extremely fine mist liquid beads.Throug the very short time of contacting the heat air,the materials can be dried into the final products.The final products will be discharged continuously from the bottom of the drying tower and from the cyclones. The waste gas will be discharged from blower.
Technical parameters
| itemparameterspec | LPG | |||||
| 5 | 25 | 50 | 100 | 150 | 200-2000 | |
| inlet temperature °C | 140-350 automatically controlled | |||||
| outlet temerature °C | ~80-90 | |||||
| Max.water evaporation capacity | 5 | 25 | 50 | 100 | 150 | 200-2000 |
| centrifugal spraying nozzle transmission mode | compressed air transmission | Mechanical transmission | ||||
| Rotation speed rpm | 25000 | 18000 | 18000 | 18000 | 15000 | 8000-15000 |
| sprayingdesc diameter mm | 50 | 100 | 120 | 140 | 150 | 180-340 |
| Heat supply | Electricity | Electricity+steam | Electricity+steam,fuel oil and gas | Settled by users themselves | ||
| Max.Electric heating power kw | 9 | 36 | 63 | 81 | 99 | |
| overall dimensions m | 1.8×0.93 ×2.2 | 3×2.7 ×4.26 | 3.7×3.2 ×5.1 | 4.6×4.2 ×6 | 5.5×4.5 ×7 | Depends on the concrete conditions |
| Dried powder restoring tate % | ≥95 | ≥95 | ≥95 | ≥95 | ≥95 | ≥95 |
| Note:For the water evaporation capacity, material property,the inlet and outlet tempratures,please refer the following diagram for reference. | ||||||
Applications
1, Chemical Industry: Sodium fluoride(potassium),alkaline dyestuff and pigment, dyestuff intermediate, compound fertilizer, formic silicic acid, catalyst, sulphuric acid agent, amino acid, white carbon and so on.
2, Plastics and resin: AB,ABS emulsion,uric acid resin,phenolic aldehyde resin,urea-formaldehyde resin,formaldehyde resin,polythene,poly-chlotoprene and etc.
3, Food Industry: Fatty milk powder,protein,cocoa milk powder,substitute milk powder,egg white(yolk),food and plant,oats,chicken juice,coffee,instant dissoluble tea,seasoning meat,protein,soybean,peanut protein,hydrolysate and so forth.
Sugar, corn syrup, corn starch, glucose, pectin, malt sugar, sorbic acid potassium and etc.
4, Ceramic: aluminium oxide,ceramic tile material,magnesium oxide,talcum and so on.
1. We will assemble and test the machine before packing,and provide English manual.
2. If customer need, our engineers for assembling and training.
The buyer shall bear the engineers round trip tickets fees, basic accommodation and Transportation,
the allowance shall be paid by buyer.
3 we are factory.
4.what capacity do you want. and we provide both half automatic and full automatic machines.
5. pls tell me detail functions of machine , so that we can recommend the best quality and the best price machine for you.
Company Profile
Shanghai Genyond Technology Co., Ltd. is a manufacturer of extracting unit and fruit & vegetable processing line with well-equipped testing facilities and strong technical force.With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in food and beverage and other industries.Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!
