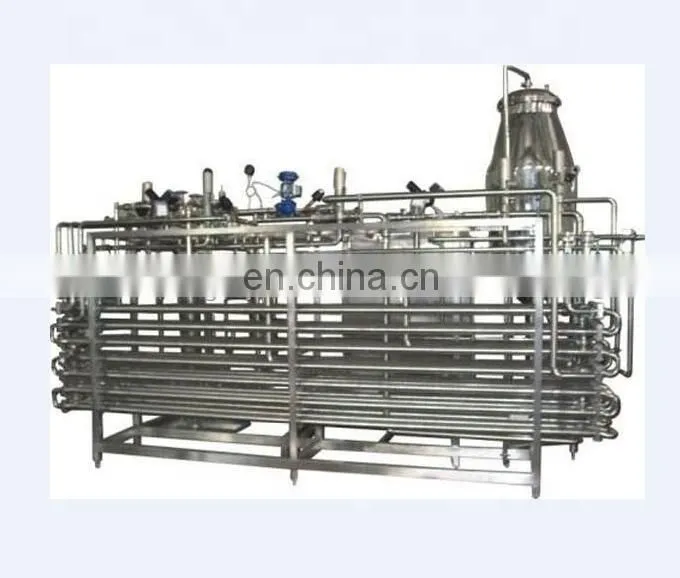

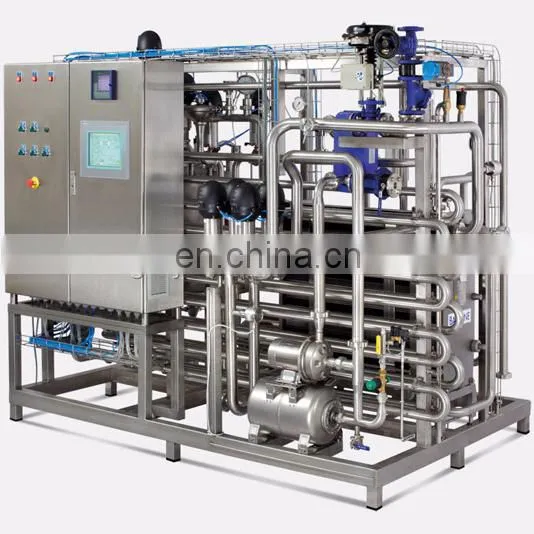

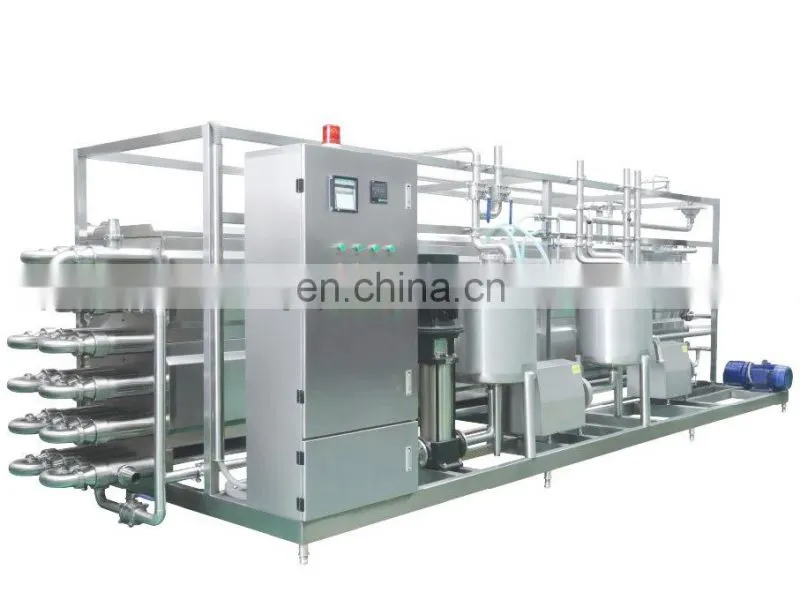

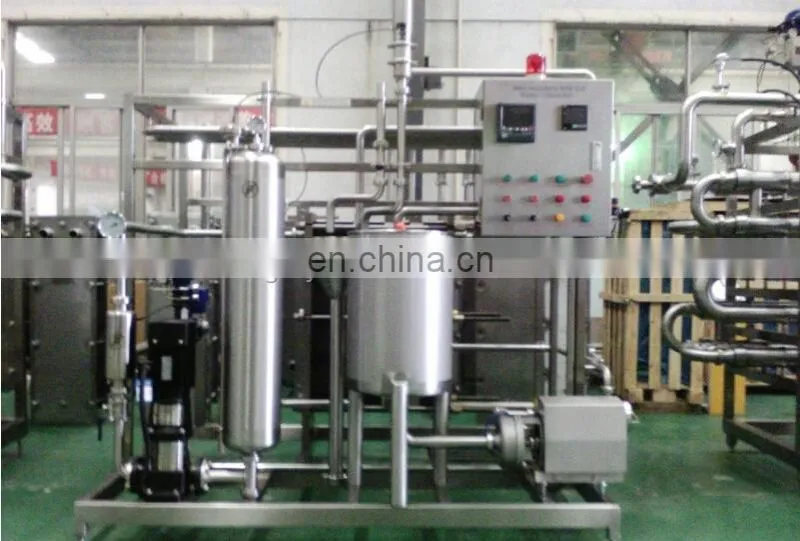

5000L UHT Milk Sterilization Machine
- T/T Credit Card
You May Like
-
Auto Ice Cream Popsicle Making Machine
-
Centrifugal Atomizer Industrial China Spray Dryer
-
Japanese Tofu Making Machine for Soybean Milk /tofu Processing
-
Industrial Boxed Tofu Equipment for Soybean Milk /tofu Maker Processing Machine
-
Automatic Japanese Tofu Making Machine for Soybean Milk /tofu Processing
-
Sanitary Stainless Steel Mini Milk Pasteurizer Machine
Product Description
milk sterilization machine introduce:
UHT milk sterilization machine adopt tube type sterilization is widely used for liquid food "aseptic" and "the sterile" heat treatment of automatic system,
the viscosity of the products range is very big, and can adapt to the fibers and particles.
our UHT milk sterilization machine series production capacity can be from 1 ~ 20t/h,
typical of the sterilization temperature of 90 ~ 140 °C, be able to connect any filling machine, aseptic or other types , sterilization machine control system installed in the chassis, control without a all adopt the international famous brand products,
including PLC program controller and engineering control screen,steam pressure reducing valve and regulator, the purge valve, valve, material pump, voltage hot water pump,
valve and pipe by other items such as all the accessories selects high fluid quality and high reliability.
The sterilization machine design for precision products/water temperature control. Products from balance pump into the pot, preheat to homogeneous temperature, and preheat to 90 ~ 95 °C, the stability of the milk proteins, and then super high temperature sterilization, finally cooled to filling temperature, the system with hot water sterilization is the circuit,
saving energy source section. The pipe diameter. Shape (straight or corrugated) and the choice of the products by bundle need to decide,
each group of heat exchanger just six O form washer (only in the medium and each year just a second look,
can choose hot filling, add 90 °C. Economic processing means, can be used to receive the same unit semi-automatic the effect.
Modle list:
|
modle |
GY-UHT-1 |
GY-UHT-2 |
GY-UHT-3 |
GU-UHT-4 |
GY-UHT-5 |
|
Production capacity(L/H) |
1000 |
2000 |
3000 |
4000 |
5000 |
|
Inlet temperature |
5°C |
5°C |
5°C |
5°C |
5°C |
|
Holding time(s) |
4-15 |
4-15 |
4-15 |
4-15 |
4-15 |
|
Sterilize temperature |
105~143°C |
105~143°C |
105~143°C |
105~143°C |
105~143°C |
|
Product outlet temperature |
20 |
20 |
20 |
20 |
20 |
|
Icewater inlet temperature |
≤2°C |
≤2°C |
≤2°C |
≤2°C |
≤2°C |
|
Steam pressure |
0.5MPa |
0.5MPa |
0.5MPa |
0.5 MPa |
0.5 MPa |
|
Steam consumption |
~150Kg/h |
~210Kg/h |
~280Kg/H |
~350Kg/h |
~420Kg/h |
|
Compressed air pressure |
0.6MPa |
0.6MPa |
0.6MPa |
0.6MPa |
0.6MPa |
|
Compressed air consumption |
50L/H |
50L/H |
60L/H |
60L/H |
70 L/H |
|
External dimension (homogenizer excluded) |
3500×2000×2500 |
3500×2000×2500 |
4500×2500×2200 |
5000×2000×2200 |
5000×2000×2200 |
|
Total weight of machine |
1700kg |
2000Kg |
2200 Kg |
2500Kg |
2800kg |
