5V 10A 80 Channel Prismatic Cell Tester Capacity Grading Machine Charge Discharge Machine

Name: 5V 10A 80 Channel Prismatic Cell Tester Capacity Grading Machine Charge Discharge Machine
Brand: TOP&TWSL
Availability: InStock

FOB Price

US$ 3900 - 7800 / Piece

1 Piece(Min. Order)

Port shenzhen
Payment TermsT/T
Delivery Detail30 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name

TOP&TWSL

Model Number

TOP-64

Product Description

5V 10A 80 Channel Prismatic Cell Tester Capacity Grading Machine Charge Discharge Machine

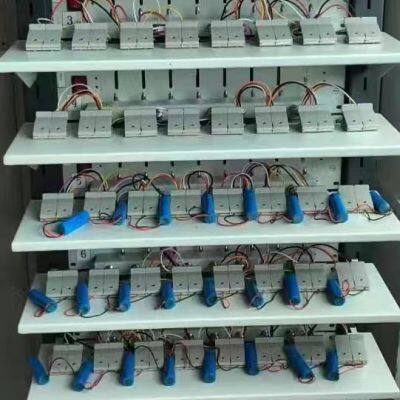

The equipment is mainly composed of computer, communication interface and battery detection cabinet. The battery detection cabinet is composed of a fixture and a board for placing the fixture, a constant current and constant voltage source, a storage control circuit, a sampling circuit, a single-chip microcomputer and a control panel.

Supporting Software Functions

A) Graphic operation interface is used to display the data of voltage, current, time and capacity of each battery, and display the corresponding working status and abnormal conditions in various colors;

B) Battery capacity indication of any section (up to 100 sections);

C) Data points can be recorded according to the change conditions of voltage, current and time to form a complete charging and discharging curve data, and the time interval of curve data points is ≤ 4 Second;

D) Carry out battery sorting function under various conditions (capacity, time, open circuit voltage, discharge platform, etc.);

E) Automatically calculate constant current charging ratio, capacity loss, discharge efficiency, average voltage, median voltage and other data;

F) Set operator authority and operate in different levels;

Display charge discharge curve and cycle chart;

Cell Grading Machine Parameters

No	Item	Parameter
1	Channels	80 channels
2	Machine size	500mm×400mm×250mm
3	Box color	Default beige (can be customized)
4	Suitable cell type	coin cell, pouch cell and cylindrical cell
5	Clamp type	upper positive and lower negative, fixture (tip/flat/two pieces) optional
6	Clamp spacing	40mm
7	Support battery height	adjustable within 100mm
8	Working power supply	AC220V±10%, 50HZ
9	Working power consumption	≤120KW
10	Working environment	temperature 0～40℃, relative humidity ≤80%
11	Cooling method	fan
12	Voltage measurement range	0～5V
13	Battery voltage range	charging 0～4.5V; discharging 4.5～2V
14	Constant voltage range	2.5～4.5V
15	Voltage accuracy	±(1‰ reading+1‰ full scale)
16	Voltage resolution	1mV
17	Voltage stability	≤1‰
18	Current range	charging 10mA～10A; discharging 10mA～10A
19	Current accuracy	±(1‰ reading+1‰ full scale)
20	Current resolution	1mA
21	Current stability	≤1‰

Product Description

Battery Analyzer Capacity Tester

TOP-C512 18650/26650/32650 Battery Capacity Tester for 5V3A/5A 512 Channel Li-Ion Battery Charging Discharging Testing Tester BK- 3512L

Performance characteristics

Main Technical Parameters

Number of device channels	512 (Single CPU control)
Constant current range	0.05 ~ 6A, resolution 1mA
Accuracy of current measurement	±0.1%FS
Sampling current accuracy	±0.1%FS
Voltage measurement range	0 ~ 5V, resolution 1mV
Accuracy of voltage measurement	±0.1%FS
Charging and discharging voltage range	Charging: 0 ~ 4.5V, discharging: 4.5 ~ 2V
Constant voltage setting range	3 ~4.5V
Accuracy of constant pressure setting	±0.1%FS
Time range	0-30000 min / step, accuracy: ± 0.1%
Heat dissipation mode	Cold wind
Battery Clamp	Cylinder clamp, polymer clamp
Work loop source	Temperature: 0 ~ 40 ℃, relative temperature ≤ 85% (no water condensation)
External size	1600mm (W) × 550mm (L) × 1840mm (H)
Working power supply	Three phase four wire system, AC380V ± 150%, 50Hz
Power consumption at full load	≤9KW
Minimum configuration of computer system:	1. Dual core CPU or above, 2. 4G or above memory, 3. 500GB or above hard disk space, 4. EGA / VGA color display, one CD-ROM, one mouse 5. Windows XP or above operating system, one 6. RS232 serial communication port available. 7.The computer system shall be self configured by the user, and the number of the computer system shall be determined according to the actual needs.
General equipment configuration and standards	1. Appearance color of equipment, Case: silver white, Cabinet: silver white. 2. Attach the Chinese operation manual and software U disk.

WE AITOP specialized manufacturing machine for Lithium battery assembly line (Auto pvc peeling/ paste paper /sorting/test/Welding/injection molding/Labeling/bagging Machine ) more than 10 years.
1, Our machines can do 18650/26650/32650/21700 etc ,Cylindrical batteries testing, sorting and spot welding in great speed.
2, You can design your own voltage and internal resistance.
3, We have a complete production line for power battery packs.
4, Our machines are widely used in battery factories for mobile phone, power bank, laptop , ebikes and electric vehicle .
5, We have an oversea sales office in New Delhi, India and now is quite popular.India , most battery factory machine support by us,Like intex,kites air,erd,ambrane,bmt,iccon ETC.
Any chance you like our products, please feel free to contact us.
We can provide you a perfect solution for power battery packs production!Such as attached Solutions.

we have strict quality control system and high efficiency work team and received a high evaluation and recognition of our customers.

Contact us :

Shenzhen AITOP Intelligent Equipment Co. LTD

Sales Manager
Phone/Whatsapp/Wechat:008618520989583/008618435204981

/18098989643/+8618820281861

Email:sales(@)

Packing and shipping

*Be Packed by Wooden Box
*Lead Time: Standard Machine: 7-10 working days after we received your battery pack samples.
*Customized Machine: 15-30 days

Our Service
Pre-sales
1) Inquiry and consulting support. All will be replied in 12 hours.
2) View our Factory and testing the machine, demonstrate how the machine work.

After-Sales
1) Training how to install the machine, training how to use the machine.
2) Engineers available to service machinery overseas
3) 1-year guarantee ( free maintain in a year)
4) Replacement parts and other accessories provided

Looking forward to establish good business relationship with you in the new future,any question,please
