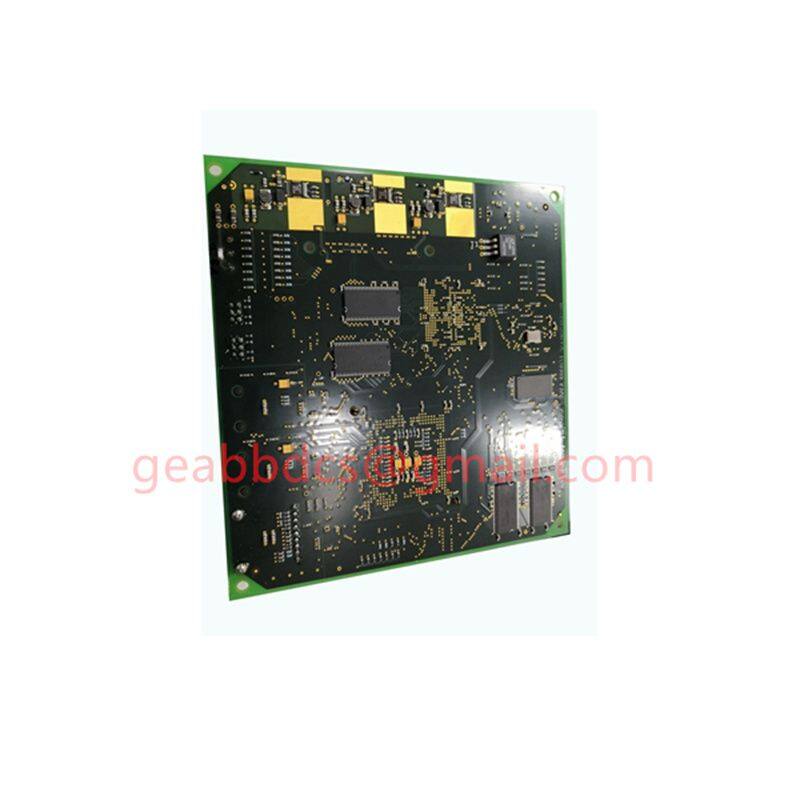

408368B IAM MODULE Industrial Control System Automation Spare Parts
You May Like
Product Details
| Brand Name | 408368B IAM MODULE | Model Number | 408368B IAM MODULE |
Product Description
mechanical properties
*External dimensions: (136x106x54) mm
*Shell: IP30 protection level, corrugated aluminum reinforced casing
*Installation method: 35mm guide rail installation
*Net weight: 800g
work environment
*Working temperature: -10 ℃~70 ℃, optional wide temperature product (-40~85 ℃)
*Storage temperature: -40 ℃~85 ℃
*Relative humidity: ≤ 90% (non condensing)
Bus data interface
*9-pin Sub_ D-jack connector, pin definition in accordance with Profibus DP protocol specifications
*Supports Profibus DP bus standard
*Signal delay (electrical port): ≤ 4Bit
*Communication speed: 9.6Kbps, 19.2 Kbps, 45.45Kbps, 93.75Kbps, 187.5Kbps, 500Kbps, 1.5Mbps, 3Mbps, 6Mbps, 12Mbps
*Equipped with 4000V lightning protection, 1.5A overcurrent protection, and 600W surge protection functions
*Terminal resistance: This device does not come with a terminal resistance, please connect it externally as needed
*Terminal resistance: This device does not come with a terminal resistance, please connect it externally as needed
Power supply and protection
*Power supply: Dual power redundant input, DC (12-36V), typical DC24V, power consumption less than 4W, with reverse protection function, industrial terminal interface
*Relay alarm output: Bus data interface fault alarm output, contact capacity: DC48V/1 A, industrial terminal interface
mechanical properties
*External dimensions: (136x106x54) mm
*Shell: IP30 protection level, corrugated aluminum reinforced casing
*Installation method: 35mm guide rail installation
*Net weight: 800g
work environment
*Working temperature: -10 ℃~70 ℃, optional wide temperature product (-40~85 ℃)
*Storage temperature: -40 ℃~85 ℃
*Relative humidity: ≤ 90% (non condensing)
Contact information: 15359293870
WhatsApp:+86 15359293870
Contact person: KELLY
Email: geabbdcs@gmail.com 386353502@qq.com
Official website:
Performance indicators:
Data electrical interface
*1-2 5Pin terminal interfaces, in accordance with CiA organization recommendations and ODVA organization recommendations
*Supports CAN BUS/DeviceNet/CANOpen bus standards
*Communication speed: DeviceNet/CANOpen all and common CAN speed levels, up to 1M
*Equipped with 4000V lightning protection, 1.5A overcurrent protection, and 600W surge protection functions;
*Terminal resistor: This machine is equipped with an optional 120R terminal resistor, which can be added by shorting pin 1 and pin 5 of the 5Pin data electrical interface.
Fiber optic interface
*Fiber wavelength: multimode 850nm, 1310 nm; Single mode 1310 nm, 1550 nm.
*Transmission fiber: multimode 50/125 um, 62.5/125 um, 100/140 um; Single mode 8.3/125um, 9/125um, 10/125um.
*Transmission distance: Multi mode 2Km, single mode 20Km, optional for further distances.
*Fiber optic interface types: SC, FC, ST optional, standard SC optical interface.
Power supply and protection
*Power supply: Dual power redundant input, DC
