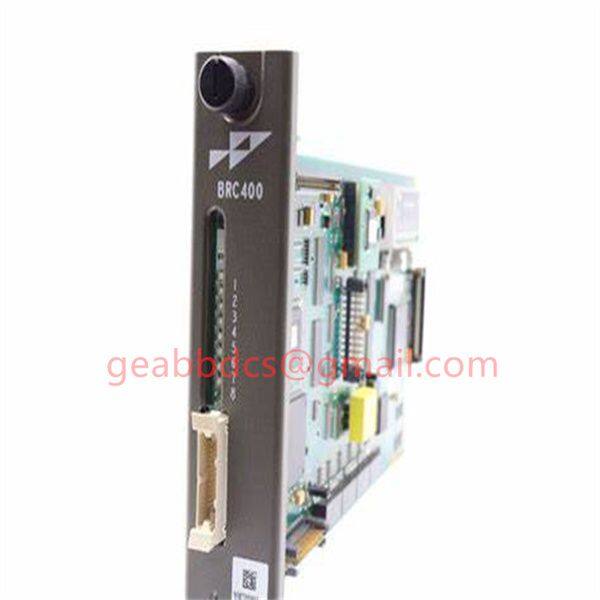

BRC400 Harmony Bridge Controller

Network topology structure

The application of PROFIBUS fiber optic repeaters is flexible, and can achieve point-to-point networking, chain network, star network, redundant dual network, and fiber optic ring network self-healing protection. Logically independent dual bus electrical interface, capable of backup of electrical interfaces and single device access to dual redundant bus systems; Point to point connection enables the connection of two Profibus DP bus segments through optical fibers; Implement multi segment Profibus DP bus connection on the fiber optic bus of the dual optical port chain network. At the same time, this series adopts dual optical ports to achieve dual fiber ring network redundancy function. When a fiber optic failure occurs in a certain area, the system will rebuild the network link within 10ms to ensure normal communication of the system and achieve self-healing protection function for signal transmission. This series adopts our company's self-developed proprietary ring network protocol Ci ring, which does not require settings and quickly completes the network's ring formation and ring removal functions. It is plug and play, does not require configuration, and greatly simplifies the installation and debugging process for users.

Bus data interface

*9-needle Sub_ D-socket connector, pin definition in compliance with Profibus DP protocol specifications

*Supports Profibus DP bus standard

*Communication speed: (rate adaptive, it is recommended to set the dial switch to a specific communication speed) 9.6Kbps, 19.2 Kbps, 45.45Kbps, 93.75Kbps, 187.5Kbps, 500Kbps, 1.5Mbps, 6Mbps, 12Mbps

*Signal delay (electrical port): ≤ 11Bit

*Equipped with 4000V lightning protection, 1.5A overcurrent protection, and 600W surge protection functions

*Terminal resistor: This device does not come with a terminal resistor, please connect it externally as needed

*Fiber optic interface

*Fiber wavelength: multimode 850nm, 1310nm; Single mode 1310nm, 1550nm

*Transmission fiber: multimode 50/125um, 62.5/125um, 100/140um; Single mode 8.3/125um, 9/125um, 10/125um

*Transmission distance: multi-mode 2km, single-mode 20km, optional for further distances

*Fiber optic interface types: SC, FC, ST optional, standard SC optical interface

*Optical path error rate:<10-9

*Signal delay (optical port): ≤ 2.3us/node

*Power supply and protection

*Power supply: Dual power redundant input, DC (12-36V), typical DC24V, power consumption less than 4W, with reverse protection function, industrial terminal interface

*Relay alarm output: Fiber optic link fault alarm output, contact capacity: DC48V/1 A, industrial terminal interface

Mechanical characteristics

*External dimensions: (136x106x54) mm

*Shell: IP30 protection level, corrugated aluminum reinforced casing

*Installation method: 35mm guide rail installation

*Net weight: 800g

Work environment

*Working temperature: (-10~+70) ℃, optional wide temperature range (-40~+85) ℃

*Relative humidity: ≤ 90% (non condensing)

*Storage temperature: (-40~+85) ℃

Contact information: 15359293870

WhatsApp:+86 15359293870

Contact person: KELLY

Email: geabbdcs@gmail.com   386353502@qq.com

Official website: http://www.geabb.com

Product specifications:

Security level: PL e

Safe input: 8 digital inputs

Security level (SIL/PL): SIL 3- SILCL 3- PL e - Cat.4

Working temperature (° C): -10 fifty-five

Signal: LED indication for operational status and fault diagnosis. LED indications: input, OSSD output, reset request, and status output conditions

Safe output type: 2 OSSD PNPs (400 mA at 24 VDC) with short-circuit, overload, and reverse polarity protection

Connection: detachable wiring terminals, screw contacts

Safe output: 2 OSSD pairs (400 mA)

Status output: 2 PNPs (100 mA)

Test output: 4

Storage temperature (° C): -20+ eighty-five

Provide MSC connectors: No

Connection with MSC BUS: Yes

Start/restart input and EDM: 2

MCM casing: Yes

USB input: Yes

Packaging size HxLxW (mm): approximately 36 x 127 x 113

Power supply (VDC): 24 ± 20%

Dimensions H x W x D (mm): 108 x 22.5 x 114.5

Protection level: IP20 shell - IP2X wiring terminal

Tightening: 35mm DIN rail fastening, in accordance with EN 50022-35 standard

Gross weight (g): 206,8

Related models:

MI802

MR4

MBEC

MXL 3B

MO4

MOR458

ADSR0

ADSR1

ADSRE4
