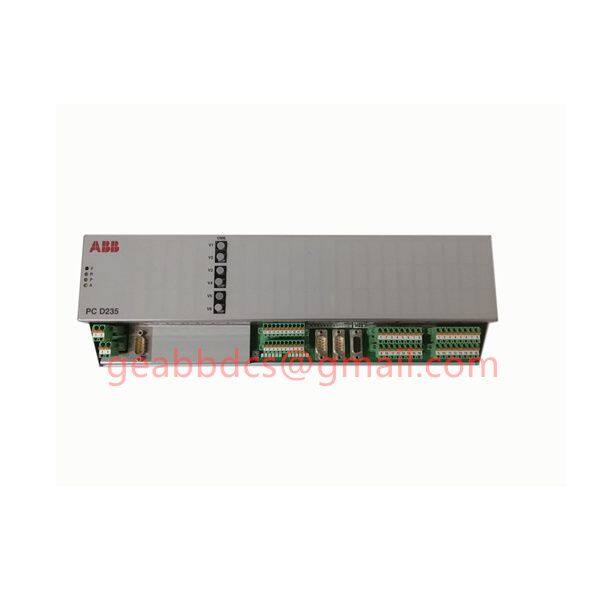

PCD235A101 Exciter Control Module

Product Overview:

Used to control the main unit of any other expansion unit (incompatible with MI8O4, MO4L, and MA4), it can also function as a standalone unit

As the main unit: controlling more complex systems to provide protection for large machinery with multiple sensors

Independent: Control small machinery connected to up to 4 safety devices, including 1 safety light curtain, 1 emergency stop switch, 1 magnetic sensor, and 1 dual hand switch

Remote connection possible through fieldbus interface

The Xunji DP fiber optic module has the characteristics of long transmission distance, rich interfaces, flexible networking, stable performance, and resistance to electromagnetic interference. It is suitable for fields such as power systems, transportation, energy monitoring, and industrial control. Supports the Profibus DP protocol and provides a dial switch to freely select 10 commonly used speeds or rate adaptations for Profibus DP. Provide 1-2 independent bus electrical interfaces and 1-2 fiber optic interfaces for flexible configuration according to actual project requirements. Supports redundant dual network and fiber optic ring network topologies, and supports point-to-point, star, chain bus, ring network, and hybrid network networking methods. Supports wide range dual redundant power input (12-36V DC), with bus interface 1000V isolation protection function, and supports relay alarm output. Based on industrial installation requirements, a 35mm guide rail installation method is adopted.

Contact information: 15359293870

WhatsApp:+86 15359293870

Contact person: KELLY

Email: geabbdcs@gmail.com   386353502@qq.com

Official website:

Product specifications:

Security level: PL e

Safe input: 8 digital inputs

Security level (SIL/PL): SIL 3- SILCL 3- PL e - Cat.4

Working temperature (° C): -10 fifty-five

Signal: LED indication for operational status and fault diagnosis. LED indications: input, OSSD output, reset request, and status output conditions

Safe output type: 2 OSSD PNPs (400 mA at 24 VDC) with short-circuit, overload, and reverse polarity protection

Connection: detachable wiring terminals, screw contacts

Safe output: 2 OSSD pairs (400 mA)

Status output: 2 PNPs (100 mA)

Test output: 4

Storage temperature (° C): -20+ eighty-five

Provide MSC connectors: No

Connection with MSC BUS: Yes

Start/restart input and EDM: 2

MCM casing: Yes

USB input: Yes

Packaging size HxLxW (mm): approximately 36 x 127 x 113

Power supply (VDC): 24 ± 20%

Dimensions H x W x D (mm): 108 x 22.5 x 114.5

Protection level: IP20 shell - IP2X wiring terminal

Tightening: 35mm DIN rail fastening, in accordance with EN 50022-35 standard

Gross weight (g): 206,8
