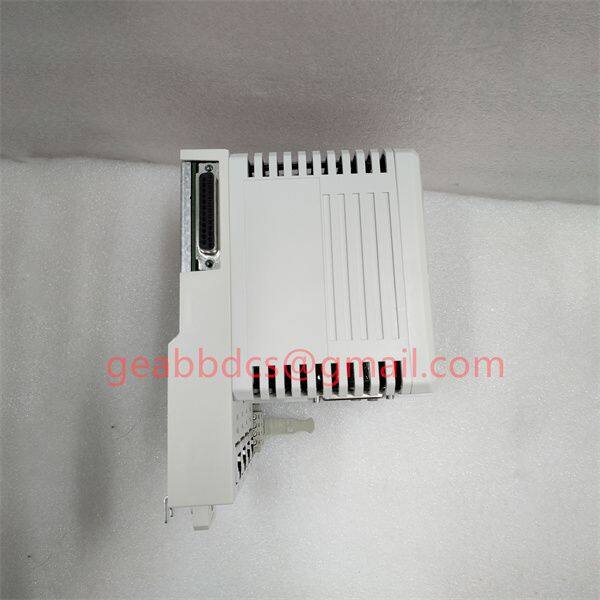

PM861AK01 Processor Unit

Performance characteristics

*Supports logic independent dual Profibus DP bus and supports all predetermined communication rates in standard specifications

*Support setting the dial switch to a specific communication rate or rate adaptation

*Flexible selection of 1-2 Profibus DP electrical interfaces and 1-2 155Mbps fiber optic interfaces, supporting redundant dual network and fiber ring network topologies

*Fiber optic communication distance of over 20km, 155Mbps, high-speed optical interface better supporting long-distance reliable transmission of burst data

*5 dual color LED status indicator lights, fiber optic link and power failure relay output alarms

*Lightning protection for 4000V electrical interface, 1.5 A overcurrent, 600W surge protection, industrial grade design, EMC testing certification

*DC (12-36V) wide redundant dual power supply, reverse connection protection

*IP30 protection level, corrugated aluminum reinforced casing, using standard industrial 35mm guide rail installation method

Network topology structure

The application of PROFIBUS fiber optic repeaters is flexible, and can achieve point-to-point networking, chain network, star network, redundant dual network, and fiber optic ring network self-healing protection. Logically independent dual bus electrical interface, capable of backup of electrical interfaces and single device access to dual redundant bus systems; Point to point connection enables the connection of two Profibus DP bus segments through optical fibers; Implement multi segment Profibus DP bus connection on the fiber optic bus of the dual optical port chain network. At the same time, this series adopts dual optical ports to achieve dual fiber ring network redundancy function. When a fiber optic failure occurs in a certain area, the system will rebuild the network link within 10ms to ensure normal communication of the system and achieve self-healing protection function for signal transmission. This series adopts our company's self-developed proprietary ring network protocol Ci ring, which does not require settings and quickly completes the network's ring formation and ring removal functions. It is plug and play, does not require configuration, and greatly simplifies the installation and debugging process for users.
