Home > Instruments & Meters > Meter for Electricity > Energy Meter & Power Meter > Acrel ADL100-EYNK/WF 4G WiFi Frequency Band Complete Electrical Meter Single Phase Support Prepayment Online Built-in Magnet Help Relay to Realize On-off

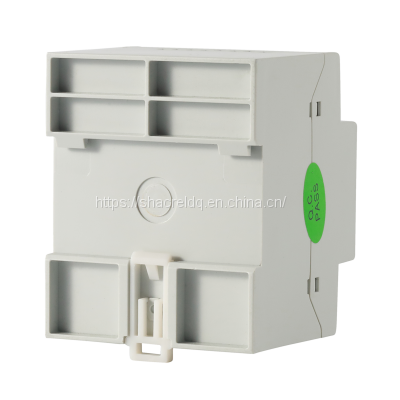

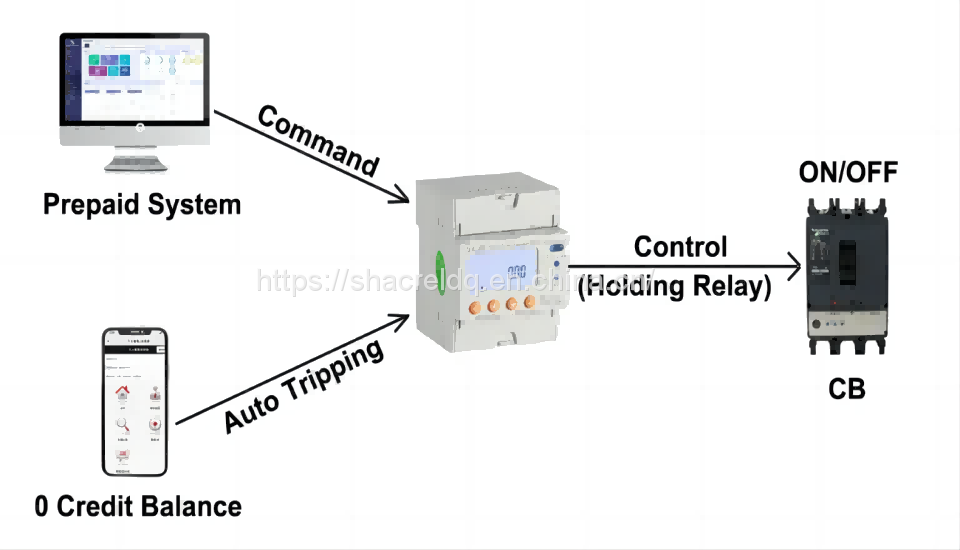

Acrel ADL100-EYNK/WF 4G WiFi Frequency Band Complete Electrical Meter Single Phase Support Prepayment Online Built-in Magnet Help Relay to Realize On-off
US$ 115 - 115
MOQ: 1 Piece
Key Specifications
Get Latest Price
Business Type:
Manufacturer
Year Established:
2003
Factory Size:
3,000-5,000 square meters
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Acrel ADL100-EYZ Single Phase Prepayment Meter Support Radio Frequency Card and Prepayment Online 1*RS485US$ 63 - 70MOQ: 1 Piece -
Acrel ADL100-EYZ Prepayment Meter Single Phase Complete Electrical Parameter Measurement Support Radio Frequency Card And OnlineUS$ 63 - 70MOQ: 1 Piece
-
Acrel ADL100-EYZ Rail Meter Kwh Single Phase Din Rail Power Meter 220V Prepayment Electricity Meter For Calculating The SingleUS$ 63 - 70MOQ: 1 Piece
-
Acrel ADL100-EYZ Prepayment Electricity Meter Single Phase Wireless Prepaid Watt-hour Meter 10(60)A 45-65HzUS$ 63 - 70MOQ: 1 Piece
-
Acrel ADL100-EYZ Single Phase Prepayment Meter Support Radio Frequency Card And Prepayment Online 1*RS485US$ 63 - 70MOQ: 1 Piece
Technical Parameter | ADL100-EY | ADL300-EY | |
Voltage | Nominal Voltage | 220V | 3*220V/380V |
Nominal Frequency | 50/60Hz | ||
Consumption | <4VA (Each Phase) | ||
Current | Maximum Current | 60A | 6A, 80A |
Consumption | Connect Directly: 0.04A, Connect via CT: 0.002A | ||
Measurement Performance | Accuracy | Class 1 | Class 0.5S |
Clock | Accuracy | Error ≤ 0.5s/d | |
Active Pulse | Width | 80ms ± 20ms | |
Constant | 1600imp/kWh | 6400imp/kWh, 400imp/kWh | |

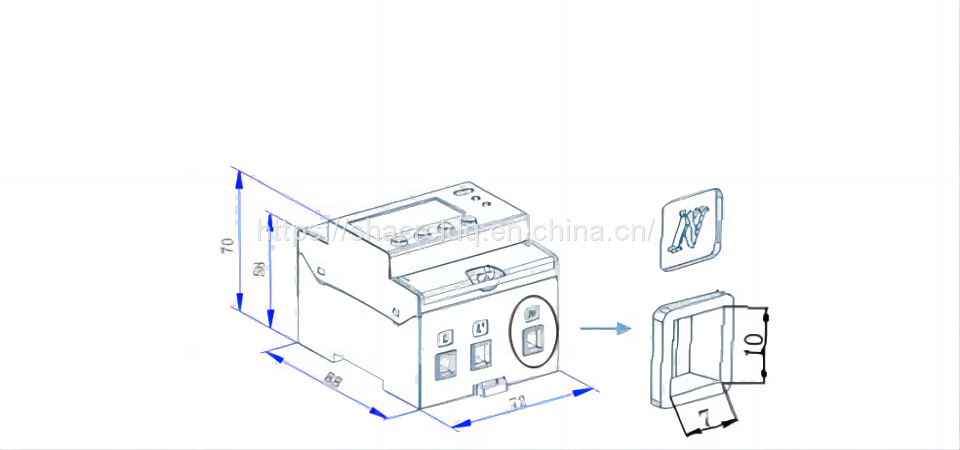

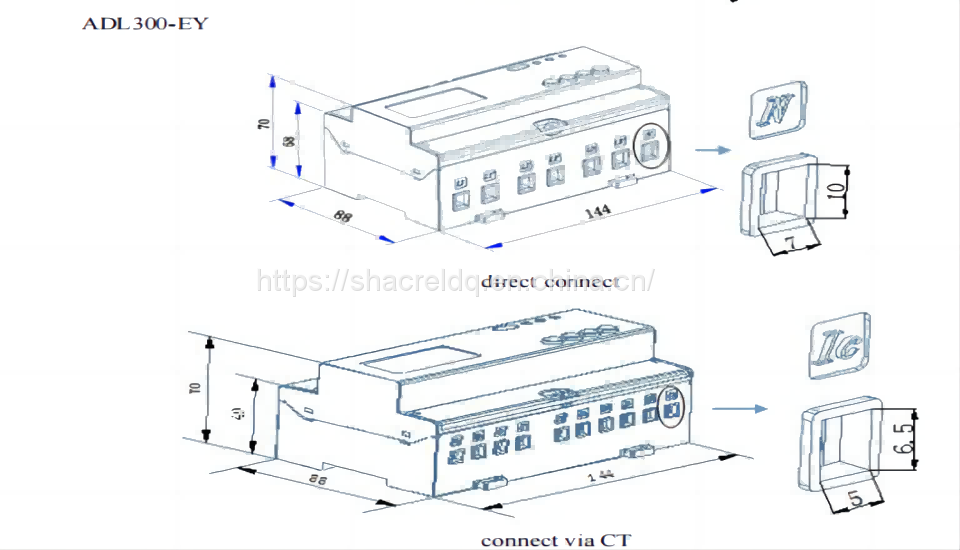

Outline | L*W*H (mm) | 72*88*70 | 144*88*70 |
Communication | Interface | RS485 | |
Protocol | Modbus-RTU | ||
Temperature | Working | -25℃-55℃ | |
Storage | -40℃-70℃ | ||
Relative Humidity | ≤95% (No Condensation) | ||
Altitude | ≤20000m | ||
