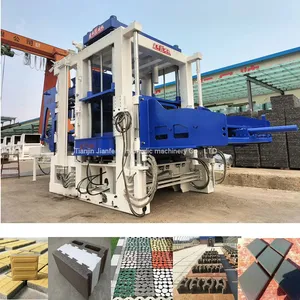

Hot Sale JianFeng Fully-automatic Multi-functional Solid Brick Machine JF-QT10-15
- tianjin
- T/T PayPal Cash Escrow
- 15 days
You May Like
-
China Multi-functional Brick Making Machinery Manufacturer
-
Small Type Semi-automatic Interlock Block Making Machine JF-QT5-15
-
Middle Type Fully-automatic Paving Brick Making Machine JF-QT7-15
-
Middle Type Fully-automatic Curbstone Brick Machine JF-QT6-15
-
Middle Type Fully-automatic Multi-functional Interlock Brick Machine JF-QT10-15
Product Details
| Brand Name | Jianfeng | Place of Origin | China | |
| Model Number | JF-QT10-15 | Certification | ISO9001:2005 | |
| Type | Interlock Block Making Machine | After-sales Service Provided | Engineers available to service machinery overseas | |
| Warranty | 12 month | Dimension(L*W*H) | 4300*1800*2500 | |
| Voltage | 380V | Power | 85 KW | |
| Condition | New | Automatic | Yes | |
| Capacity | 100000 pcs for solid bricks per day | Method | Hydraulic Pressure | |
| Processing | Brick Molding Machine | Brick Raw Material | Crushed Stone |
Product Description
Hot Sale JianFeng Fully-automatic Multi-functional Solid Brick Machine JF-QT10-15
1、Changing any molds can make different kinds of bricks and blocks.
2、Back and forth way of feeding forks guarantee feeding raw materials efficient and uniform.
3、Vibration combined with hydraulic pressure to ensure uniform density.
4、Forced mold synchronization, ensure consistent thickness, smooth demold, high yield.
5、Automatic operation for pallet sending,brick receiving,,vibrating and pressing.
Main Technical Parameter | |||||
1 | Actuating shock force | 98KN | 7 | Installed capacity | 44KW |
2 | Frequency of shock | 6500(Time/Minute) | 8 | Weight of brick machine | 12T |
3 | Amplitude | 15mm | 9 | Maximum pressure | 10T |
4 | Noise | 95db(A) | 10 | Pallet size | 1100×900× 25(mm) |
5 | Shock time | 8(Second/Time) | 11 | Operation number | 6 persons |
6 | Overall dimension | 7265×2900×4100(mm) | 12 | Area size | ≥5000 m2 |
Brick Type & Production | ||||
| Brick picture |
|
|
|
Standard brick 240* 115*53mm |
| 48 Pieces | 8640 Pieces | 20Second/Time |
Hollow brick 190*190*390mm |
| 10 Pieces | 1800Pieces | 20Second/Time |
Interlocking brick 225*112.5*60mm |
| 24 Pieces | 4320 Pieces | 20Second/Time |
Holland brick 200* 100*60mm |
| 36 Pieces | 6480 Pieces | 20Second/Time |
Multi-hole brick 240* 115*90mm | 24 Pieces | 4320 Pieces | 20Second/Time | |
Border stone 1000* 150*300mm |
| 2 Pieces | 180 Pieces | 40Second/Time |
For more details about our brick machine,feel free to contact me!
