Short Description:

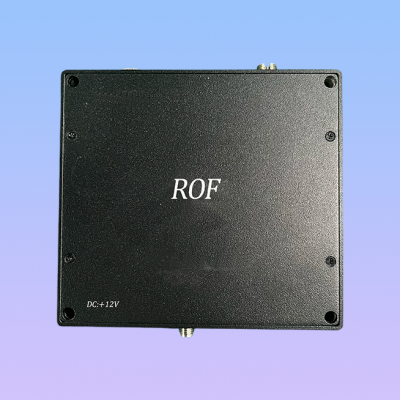

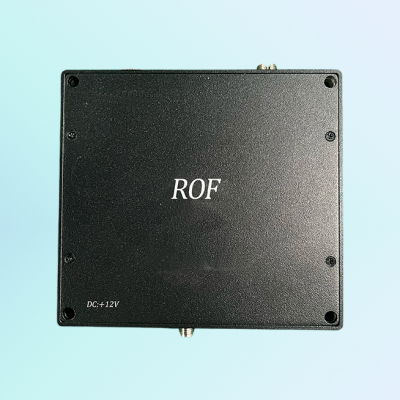

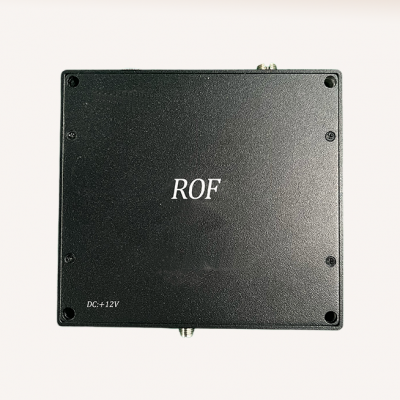

The ROF -DML -XX series of analog broadband direct-tuning transmitters use a highly linear microwave direct-coupled DFB laser (DML), a fully transparent operating mode without RF drive amplifiers and integrated automatic power control (APC) and automatic temperature control (ATC) circuit to ensures that the laser can transmit up to 18 GHz of microwave RF signals with long distances, high bandwidth and flat response, providing excellent linear optical fiber communication for a variety of analog broadband microwave applications. Due to the avoidance of expensive coaxial cable or waveguide, the transmission distance limit is canceled, which greatly improves the signal quality and reliability of microwave communication, being widely used in remote wireless, timing and reference signal distribution, telemetry and delay lines and other communication field.
Feature
⚫Excellent RF response flatness
⚫Wide dynamic range
⚫Entire transparent work applicable signal coding communication standard network protocols
⚫Wavelength options: 1550nm DWDM wavelength
⚫Integrate automatic power control and automatic temperature circuit
⚫No built-in drive RF amplifier, providing more flexibility
Application
⚫Remote antenna
⚫Long-distance analog optical fiber communication
⚫Military three wave communication
⚫Tracking telemetry and control
⚫Delay lines
⚫Phased array
Performance parameters
| Parameter | Unit | Min | Typ | Max | Remarks | |
| Optical characteristics | ||||||
| Laser type | DFB | |||||
| Operating wavelength | nm | 1530 | 1550 | 1570 | DWDM is optional | |
| Equivalent noise intensity | dB/Hz | -145 | ||||
| SMSR | dB | 35 | 45 | ||||
| Light isolation | dB | 30 | |||||
| Output light power | mW | 10 | |||||
| Light return loss | dB | 50 | |||||
| Optical fiber type | SMF-28E | ||||||
| Optical fiber connector | FC/APC | ||||||
| RF characteristics | |||||||
|
Operating frequency@-3dB |
GHz | 0.1 | 6 | ||||
| 0.1 | 10 | ||||||
| 0.1 | 18 | ||||||
| Input RF range | dBm | -60 | 20 | ||||
| Input 1dB compression point | dBm | 15 | |||||
| In-band flatness | dB | -1.5 | +1.5 | ||||
| Standing wave ratio | 1.5 | ||||||
| RF reflection loss | dB | -10 | |||||
| Input impedance | Ω | 50 | |||||
| Output impedance | Ω | 50 | |||||
| RF connector | SMA-F | ||||||
| Power supply | |||||||
| Power supply | DC | V | 5 | ||||
V | -5 | ||||||
| Consumption | W | 10 | |||||
| Power supply interface | Wear capacitance | ||||||
