Rof RF Modules 1-6G Microwave Optical Fiber Transmission Modulator RF Over Fiber Link
- 3 Piece / Pieces per Month
- Beijing
- T/T
- ROF RF Modules Broadband Transceiver Module RF Over Fiber Link Analog Broadband RoF Link
- Mini 0.6~6GHz Analog Wideband Transceiver Module Optical Transmission Link Fiber Optic Transmitter
- Electro-Optic Modulator Mini 50~3000MHz Analog Wideband Transceiver Module Optical Transmission Modulator
- ROF RF Link Analog Wideband Transceiver modulator Analog Broadband Optical Receiver
- Rof Electro-Optic Modulator EDFA Optical Amplifier Ytterbium-Doped Fiber Amplifier YDFA Amplifier
- Rof Electro-optic modulator EDFA Optical Amplifier Erbium Doped Fiber Amplifier YDFA Amplifier
Product Details
Place of Origin: | China |
Product Description
Please don't pay.And contact us for the latest prices!!!
Short Description:

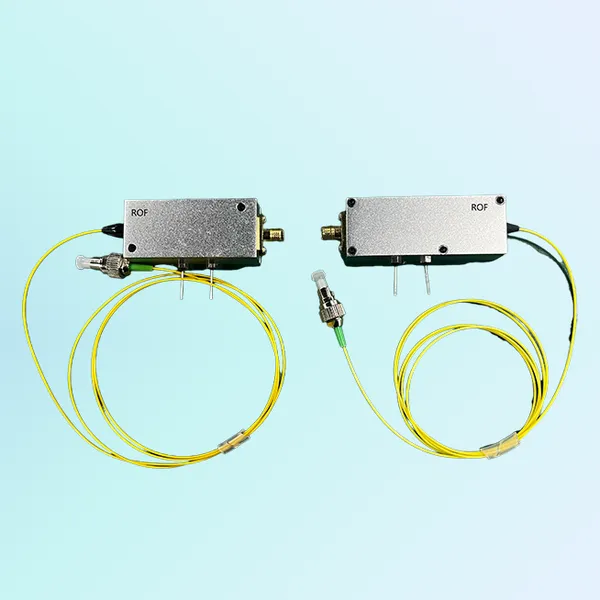

1-6G microwave optical fiber transmission module(RF over fiber link) is composed of transmitter module and receiver module, and the working principle as shown below. The transmitter uses a high linear linear direct-mode DFB laser (DML) and integrates automatic power control (APC) and automatic temperature control (ATC) circuit, so that the laser can have efficient and stable output.The receiver integrates a high linear PIN detection and low noise broadband amplifiers. Microwave signal modulates laser to produce intensity modulated optical signal directly to achieve electro-optical conversion, after single-mode fiber transmission, the receiver completes photoelectric conversion, and then the signal is amplified and output by the amplifier.
Feature:
Operating frequency 1-6GHz
DWDM wavelength is available for wavelength ,multiplexed
Excellent RF response flatness
Wide dynamic range
Entire transparent work
Can be customized according to customer requirements
Application:
Remote antenna
Long distance analog fiber communication
Tracking, telemetry and control
Delay lines
RF feature | |||||
Parameter | Unit | Min | Typ | Max | Remarks |
Operating frequency | GHz | 1 | 6 | ||
Input RF range | dBm | -60 | 20 | ||
Input 1dB compression point | dBm | 20 | |||
In-band flatness | dB | 3 | |||
Standing wave ratio | 1.75 | ||||
Gain | dB | -10 | Optional path loss 6dB | ||
RF emission loss | dB | -10 | <6GHz | ||
Input impedance | Ω | 50 | |||
Output impedance | Ω | 50 | |||
RF connector | SMA-F |
