Short Description:

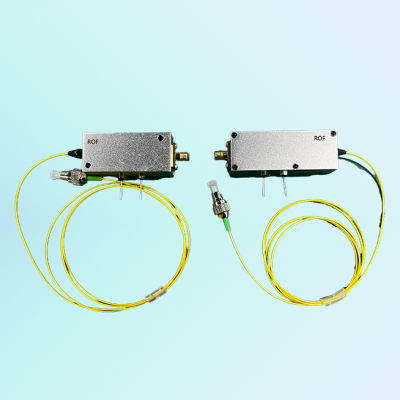

The analog RoF link is mainly composed of analog optical transmission modules and analog optical reception modules, achieving long-distance transmission of RF signals in optical fibers. The transmitting end converts the RF signal into an optical signal, which is transmitted through the optical fiber, and then the receiving end converts the optical signal into an RF signal. RF fiber optic transmission links have the characteristics of low loss, broadband, large dynamic, and security and confidentiality, and are widely used in remote antennas, long-distance analog fiber optic communication, tracking, telemetry and control, microwave delay lines, satellite ground stations, radar, and other fields. Conquer has launched a series of RF fiber optic transmission products specifically for the RF transmission field, covering multiple frequency bands such as L, S, X, Ku, etc. It adopts a compact metal casting shell with good electromagnetic interference resistance, wide working band, and good flatness within the band.
Feature:
L, S, X, Ku multiple frequency terminals
Operating wavelength 1310nm/1550nm，Optional DWDM wavelength, multiplexing
Excellent RF response flatness
Wide dynamic range
Application:
Remote antenna
Long distance analog fiber optic communication
Tracking, telemetry, and control（TT&C）
Satellite ground station
Electronic countermeasures
Microwave radar signal delay
Parameters | Symbol | Min | Typ | Max | Unit |
| Wavelength | l | 1550 | nm | ||
| Transmitting output power | Pop | 8 | 10 | dBm | |
| Transmitting side-mode-suppression | 35 | dB | |||
| Light isolation | 35 | dB | |||
| RF input frequency range * | f | 0.1 | 18 | GHz | |
| RF input 1dB compression point | P1dB | 10 | dBm | ||
| Link gain * | G | 0 | 2 | dB | |
| In-band flatness | R | ±1 | ±1.5 | dB | |
| Link noise figure * | N | 45 | 48 | 50 | dB |
| RF output harmonic suppression ratio | 40 | dBc | |||
| RF output spurious suppression ratio | 80 | dBc | |||
| Input/output standing wave ratio | VSWR | 1.5 | 2 | dB | |
| RF signal interface | SMA | ||||
| Optical signal interface | FC/APC | ||||
| Fiber type | SMF | ||||
| Specifications * | Transmitter | Receiver | |||
| Overall dimensions L x W x H* | 45mm*35mm*15mm | 38*17*9mm | |||
| Power requirements * | DC 5V | DC ±5V | |||
