Home > Products > Tunnel Infrared Dryer > Sports Goods Silicone Shower Cap High Temperature Ink Baking Tunnel Dryer
Sports Goods Silicone Shower Cap High Temperature Ink Baking Tunnel Dryer
- 1000 Set / Sets per Month
- Shenzhen
- T/T L/C
- Industrial Printing Ink Drying Tunnel Conveyor
- Chinese T-shirts drying tunnel furnace factory
- Pneumatic Stretchers for Screen Tensioning with Individual Clamps
- TM-Z4-D Factory Price automatic screen printing machine/UV ink Auto Screen Printing Machines
- UV Silk Screen Printing Varnish UV Crystal Varnish Fully Auto Screen Printing Machine
- TM-Z2A Automatic Membrane Switch Screen Printing Set
Product Details
Brand Name: | Tamprinter | Model Number: | TM-IR800y | After-sales Service Provided: | Overseas third-party support available |
Condition: | New |
Product Description
Product Description
Basic Info.
Type | TM-IR800y |
Outside dimensions | L 5000 * W800 * H 1000mm |
Heating zone dimensions | L2500 * W 800 "H 250mm * 2 |
Lamp Power | 1000W*24 |
Lamp Length | 700mm*2 |
Total Power | 24.4KW |
Temperature | 20 to 220 degrees |
Control accuracy | 1 degree |
Weight | 800kg |
Motor | No belt system |

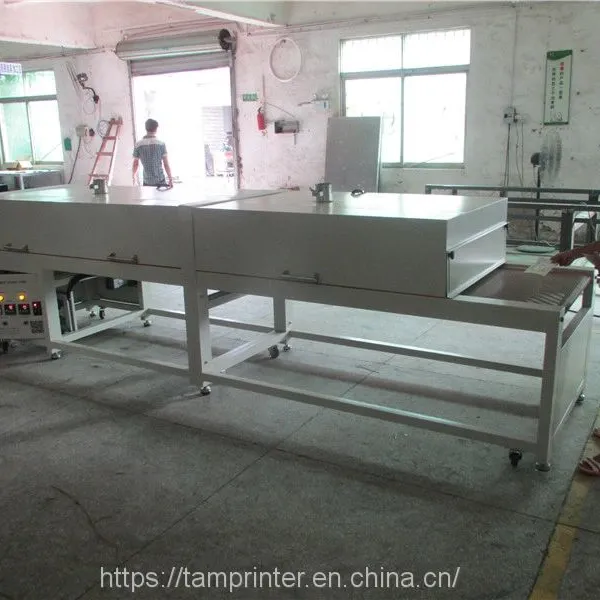

About the frame
overall dimensions (outside): L 5000 * W800 * H 1000mm

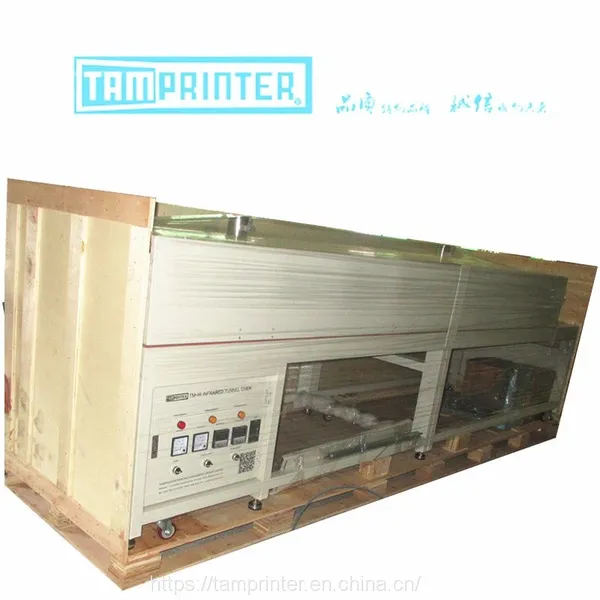

2 pcs Plywood 2.65*0.95*1.24m
All are heating zone, no belt system.
The rack all use 80 * 40 thick flat pass welding production, machine feet with 40 * 40 square pass welding production, each section 2.5 meters. The surface process spray treatment(computer white) after rust treatment , the line is assembled body type, machine feet with adjustable foot cups.
About the tunnel
Outside the tunnel, use 1.5mm cold plate bending welding production, surface rust treatment after plastic sprayed (computer white).
Inside the tunnel, the interlayer plate uses 1.0mm stainless steel plate bending production, strengthen with keel.
The insulation layer using 1.0mm stainless steel plate, and the tunnel filled with 100K compacted insulation cotton(T100mm)
About the Drive System
No Drive System.
Line body overall dimensions (outside); L 5000 - w 800 1000mm all heating zones, not into the discharge zone.
1. Framework: 80*40 thick flat chassis used in all pass welding production. HUR embankment 40*40 square pass welding production, each 2.5 m. Surface after rust treatment spray (computer white), line body is assembled, machine feet oven can be with adjustable foot cups:
2. Oven: heating zone dimensions:. 1. 2500 * W 800 *H 1250mm * 2 part;
outside of the oven, the gall bladder using 1.5mm cold plate bending welding production, surface get rust treatment sprayed (computer white).
liner sandwich plate is using 1.0mm stainless steel plate bending production, strengthen the internal filling-keel. using 1.0mm lower inner insulation.
Stainless steel, oven insulation is with 100K cotton insulation to compact and fill (T100mm).
3. supply system:
line body is with no driving force transmission, auxiliary equipment helps to drive;
heating system:
(1)oven: divided into two temperature zones control each temperature zone heating domestic high-quality short-wave infrared lamp heating, each district using 700mm / 1000W / support * 12, a total of 24, the total power 24.4Kw.

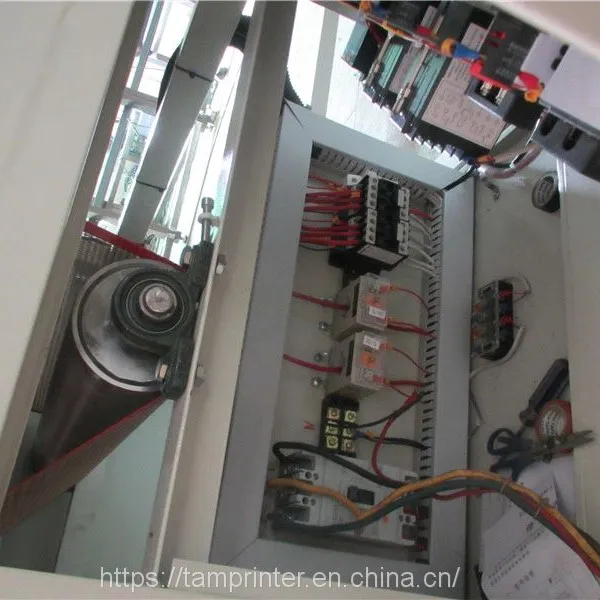

(2) thermostat part: Thermostat imported intelligent digital temperature control table temperature, relay output control, total feed electrical box located at the top of the oven heating system with ammeter, voltmeter, total air switch system. oven is without air transport machine.
(3) Insulation: Oven heat insulation not electric insulation. it can insulate the high temperature well.
Technical requirements:
1. oven temperature from room temperature to 220 degrees, must be adjustable thermostat
2. left, right and furnace temperature difference within plus or minus 5 degrees, the control accuracy is 1 degree.
Our services
1. Professional English speaking engineers are online ready for your troubleshooting service. It is reachable in an easy way.
2. We guarantee prompt warranty service for parts repairmen and replacement by international courier. (DHL, FEDEX, UPS, TNT)
3. We can give quick response for on site overseas service requests and offer 7 days' free training and installation service when customer bear the traveling expense including visa, round trip tickets, boarding and lodging at service place.
