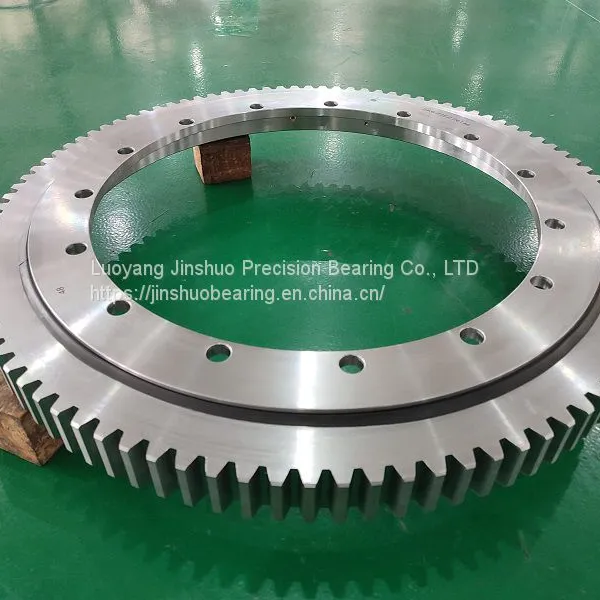

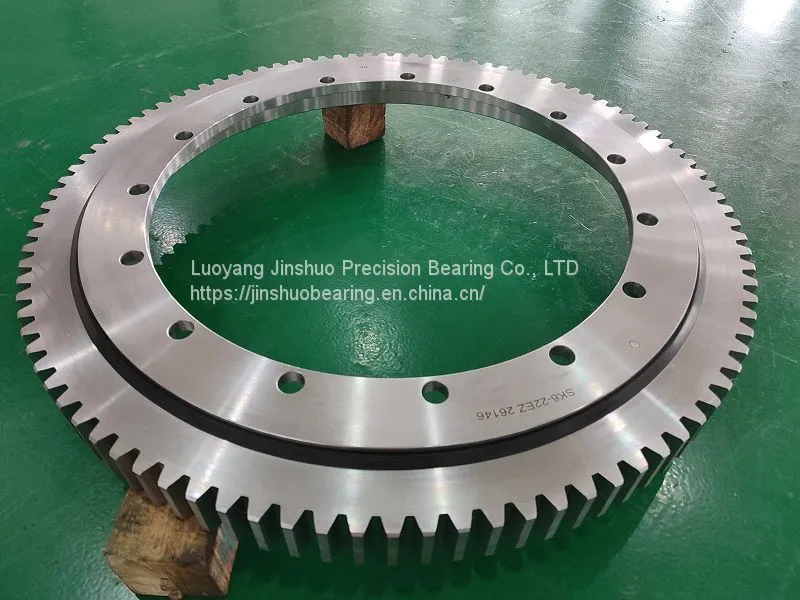

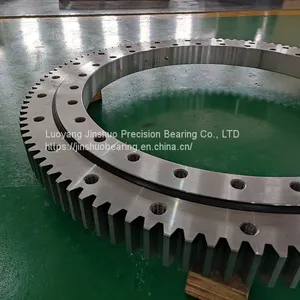

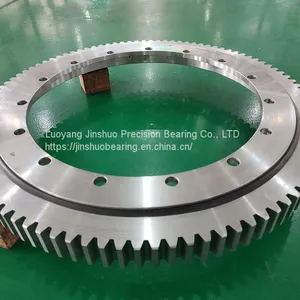

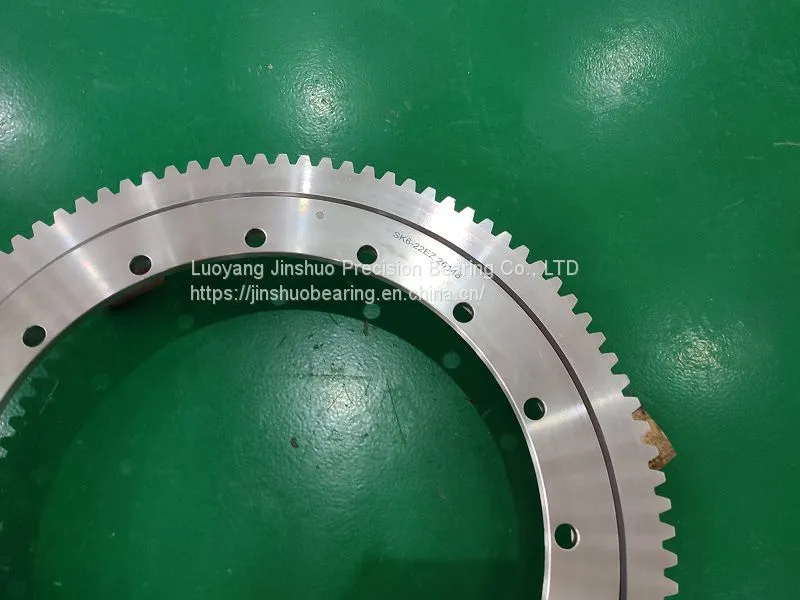

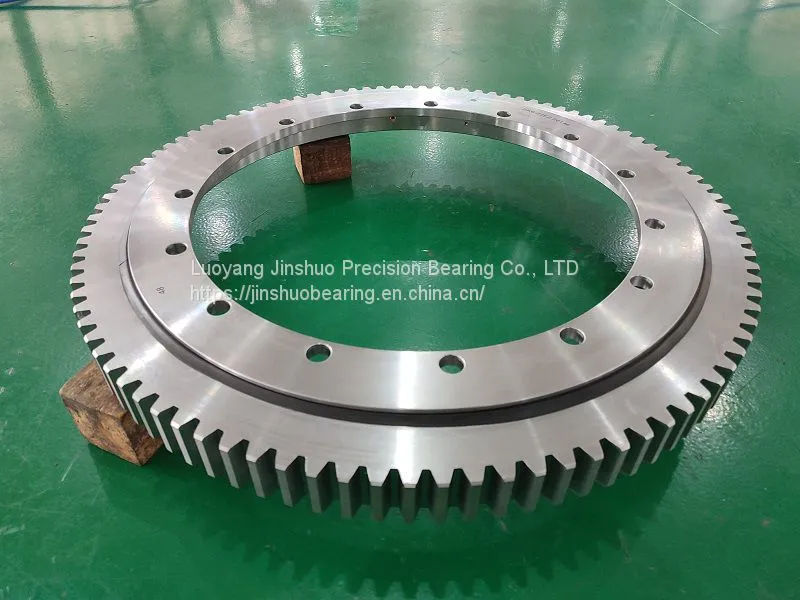

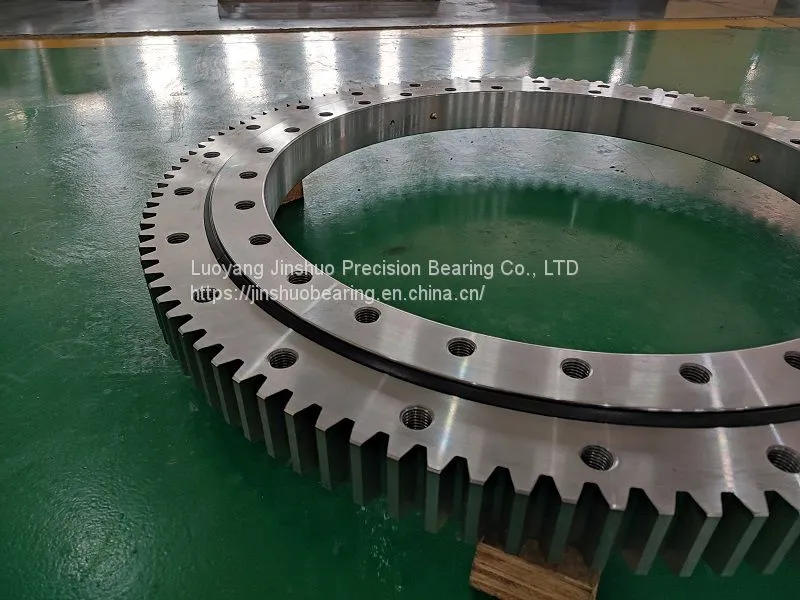

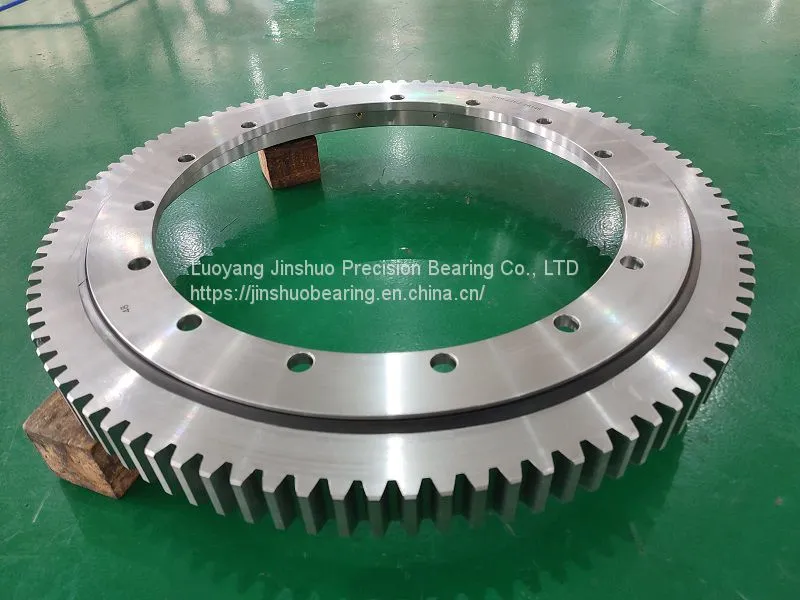

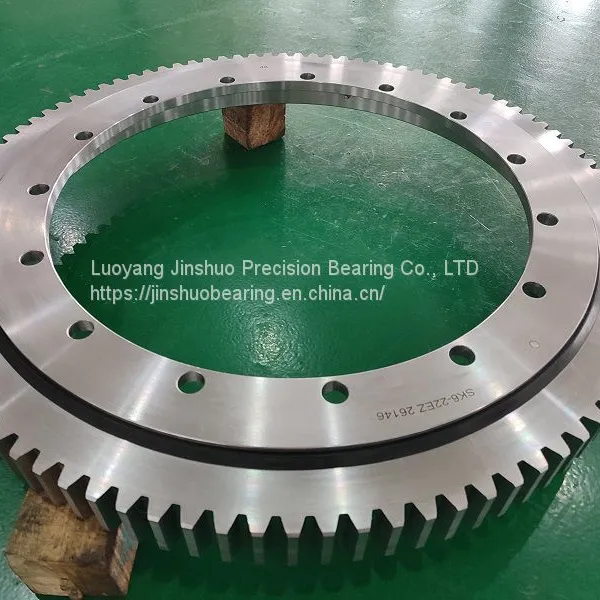

crossed rolller slewing bearings XSA141094N 1198.1X1024X56 MM for Band Conveyor
Bearing structure:crossed roller slewing bearing
Bearing factory items:XSA1410994-N
Bearing old type:XSA1410994N
Original:Made in China
The delivery time:20-30 days
Bearing boundary Dimension:1198.1X1024X56mm
OD(outer diameter):1198.1 MM
ID(inner diameter):1024 MM
Width/Height/thickness:56 mm
Basic dynamic load rating, Radial Cr:241 KN
Basic static load rating, Radial Cor:710 KN
The seaport name:Shanghai or Tianjin or qingdao seaport
The bearing working speed:1000 rpm
Outer Ring material:42CrMo, 50Mn
Inner Ring material:42CrMo, 50Mn
Rolling roller/ball brand LYC ball
Teeth data
Do 1184mm
M 8
Teeth number 148
Bearing boundary inch size:47.16’’x40.31’’x2.20’’
Bearing outer diameter inch: 47.16’’
Bearing inner diameter inch size:40.31’’
Bearing height inch:2.20’’
Weight:91 KGS
Clearance:C1 C2 C3
Quality standard:GB307 Rolling bearing technical requirement
Outer Ring and Inner Ring heat treatment:HRC55-62
Lubrication:Oil or Grease oil hole and oil groove in the outer ring
HS code:8482100090
Payment term:T/T or L/C at sight
The delivery time:620-30 days
Service:offer drawing and technical support
We JHB slewing bearing had offered to Spain,Germany,France,Poland,Brazil ,India and son.
The slewing bearing XSA 141094 N Belongs to crossed bearing with external teeth,It consist on inner ring outer ring and rolling parts
