JHB Slewing Ring XSI140414-N 484*325*56 MM for Crane Wheel Bogie

JHB slewing ring XSI140414-N 484*325*56 MM for Crane Wheel Bogie

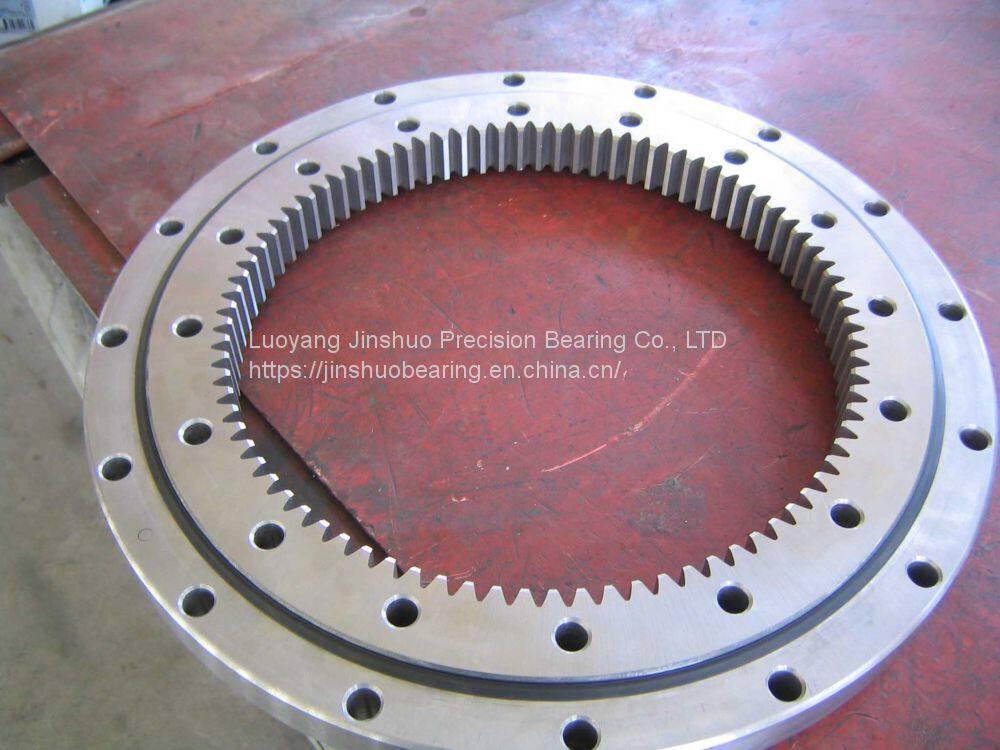

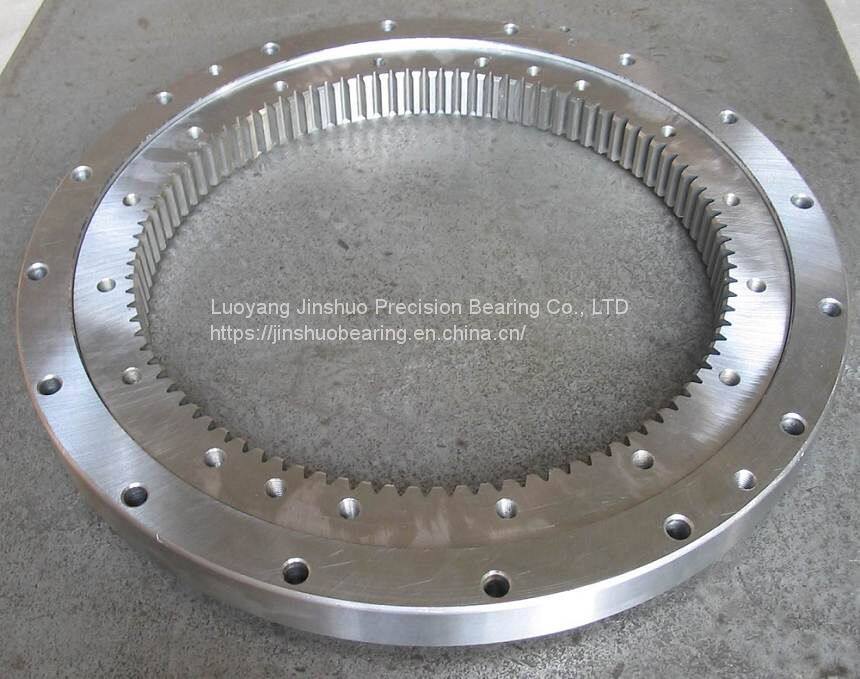

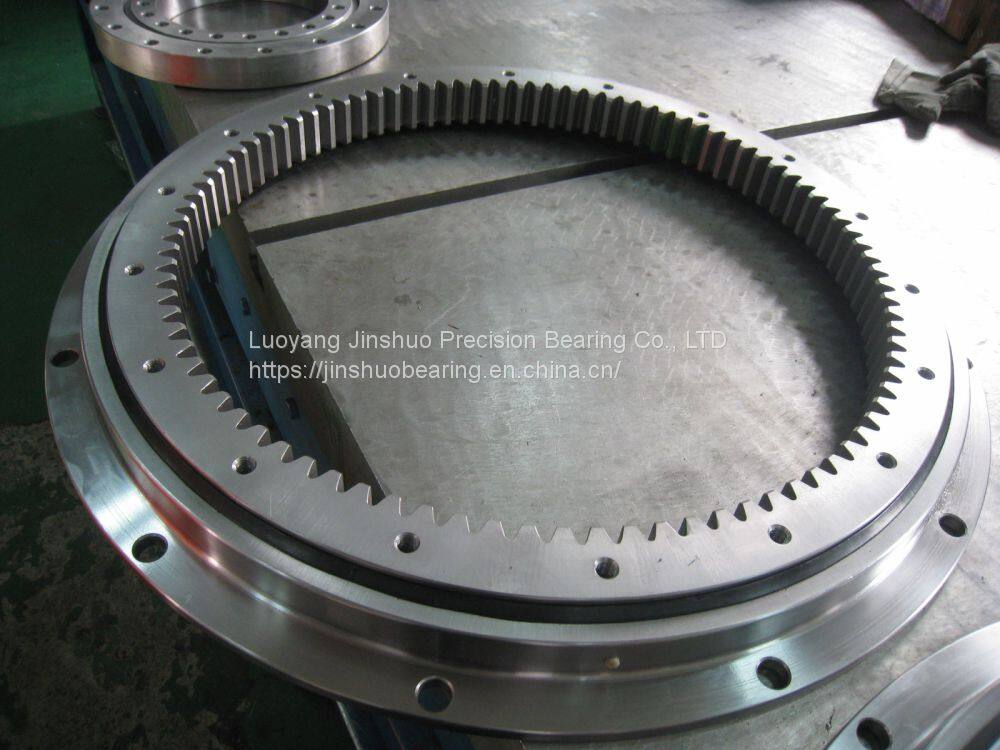

The slewing bearing XSI 140414 N Belongs to crossed bearing with internal teeth,It consist on inner ring outer ring and rolling parts

Bearing description: crossed roller slewing bearing

Row number:one row

Bearing factory items:XSI140414-N

Bearing type:XSI 140414 N

The slewing bearing XSI140414-N for Crane Wheel Bogie  at high speeds have increased accuracy to tolerance class P6 or P5.

Bearing boundary Dimension:484X325X56 MM

ID(inner diameter)/Bore: 325 mm

OD(outer diameter):484 mm

Width/Height/thickness:56 mm

Clearance:C1 C2 C3

Rolling roller/ball brand LYC ball

Teeth data

Do 495mm

M 5

Teeth number 99

Quality standard:GB307 Rolling bearing technical requirement

Outer Ring and Inner Ring heat treatment:HRC55-62

ISO standard interchangeable dimensions

The seaport name:Shanghai or Tianjin or qingdao seaport

HS code:8482100090

Payment term:T/T or L/C at sight

Lubrication:Oil or Grease oil hole and oil groove in the outer ring

Outer Ring material:42CrMo 50Mn

Inner Ring material:42CrMo 50Mn

Basic dynamic load rating, Radial Cr:143 KN

Basic static load rating, Radial Cor:265 KN

Bearing weight32 KGS

The bearing manufacture time:20-30 days

Service:offer drawing and technical support

Shipping term By sea or by air

Bearing package:strong wooden case
