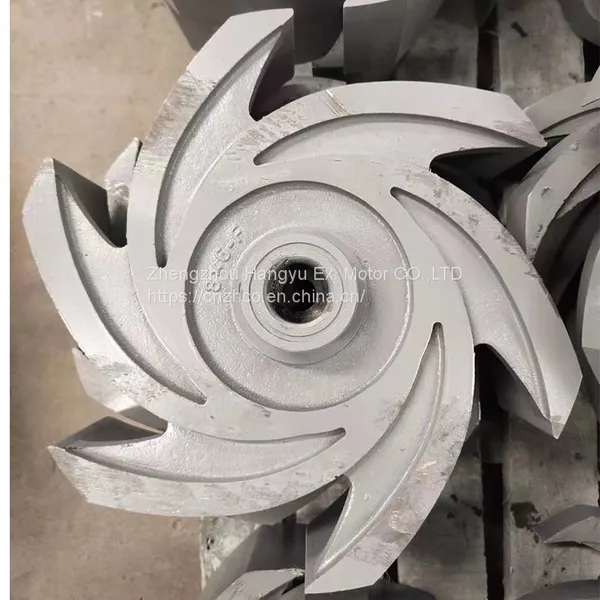

Pump Impeller for Mission Magnum 2500 Supreme Centrifugal Pump 8x6x14
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow Other
- 2 days
You May Like
-
9inch Pump Impeller for Mission Magnum 2500 Supreme
-
Pump Impeller for Mission Magnum 2500 Supreme
-
Pump Impeller for MCM Centrifugal Pump 4x3x13 Impellers for Sand Pump Spare Parts
-
Pump Impeller for MCM Centrifugal Pump 3x2x13 Impellers for Sand Pump Spare Parts
-
55KW Explosion Proof Three-phase Asynchronous Motor YB ,YBX4， 75KW Flameproof Electric Motor
-
IE4 380V Explosion Proof 3 Phase Asynchronous Motor YB ，YBX4，electrical Motor
Product Details
| Brand Name | Zhenghang | Place of Origin | China | |
| Model Number | 8x6x14 | Standard or Nonstandard | Standard |
Product Description

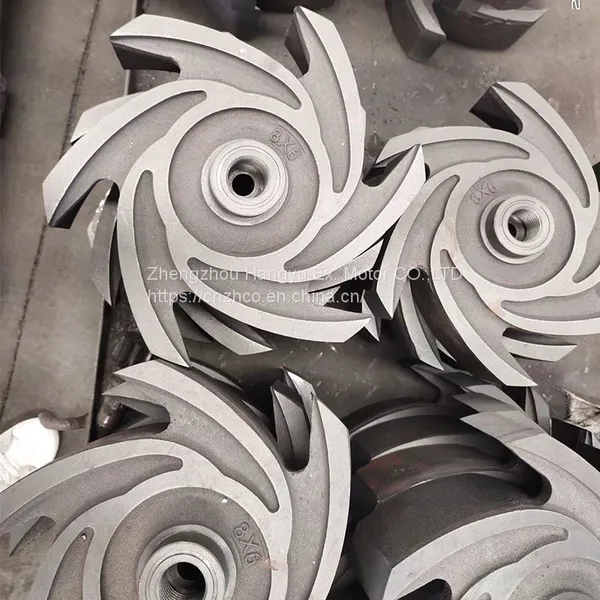

Pump impeller for Mission Magnum 2500 supreme Centrifugal Pump 8x6x14 impellers for Sand pump spare parts
We supply Mission centrifugal pump Magnum and parts ,100% interchangeable for below model:
Mission Centrifugal pumps Magnum 3x2x13
Mission Centrifugal pumps Magnum 4x3x13
Mission Centrifugal pumps Magnum 5x4x14
Mission Centrifugal pumps Magnum 6x5x11
Mission Centrifugal pumps Magnum 6x5x14
Mission Centrifugal pumps Magnum 8x6x11
Mission Centrifugal pumps Magnum 8x6x14
Product Description
| ITEM | QTY per pump | PART No. | Stock No | DESCRIPTION | MATERIAL | WEIGHT kg |
| Casings | ||||||
| 1* | 1 | 19203-01-30A | 641101753 | Casing,3×2×13 | QT600-3 | 55 |
| 1* | 1 | 19205-01-30A | 641101902 | Casing,4×3×13 | QT600-3 | 57 |
| 1* | 1 | 19222-01-30A | 641102058 | Casing,5×4×14 | QT600-3 | 85 |
| 1* | 1 | 19122-01-30A | 641101456 | Casing,6×5×11 | QT600-3 | 90 |
| 1* | 1 | 19123-01-30A | 641101605 | Casing,6×5×14 | QT600-3 | 95 |
| 1* | 1 | 19763-01-30A | 641102157 | Casing,8×6×11 | QT600-3 | 97 |
| 1* | 1 | 19117-01-30A | 641101308 | Casing,8×6×14 | QT600-3 | 125 |
| 1* | 1 | 20937-01-30A | 641102322 | Casing,10×8×14 | QT600-3 | 155 |
| Impellers | ||||||
| 2* | 1 | 19204-XX-30 | 641215603 | Impeller,3×2×13 | QT600-3 | 9 |
| 2* | 1 | 19206-XX-30 | 641217005 | lmpeller,4×3×13 | QT600-3 | 12.5 |
| 2* | 1 | 19224-XX-30 | 641217831 | Impeller,5×4×14 | QT600-3 | 13 |
| 2* | 1 | 19121-XX-30 | 641211602 | lmpeller,6×5×11 | QT600-3 | 14 |
| 2* | 1 | 19121-XX-30 | 641212105 | Impeller,6×5×14 | QT600-3 | 18 |
| 2* | 1 | 19121-XX-30 | 641211602 | Impeller,8×6×11 | QT600-3 | 18 |
| 2* | 1 | 19116-XX-30 | 641209903 | Impeller,8×6×14 | QT600-3 | 20 |
| 2* | 1 | 21867-XX-30 | 641221007 | Impeller,10×8×14 | ||
Model | 10×8×14 | 8×6×14 | 6×5×14 | 5×4×14 | 4×3×13 | 3×2×13 |
Discharge capacity | 260~280 m3/h | 240~260 m3/h | 220~240 m3/h | 120~220 m3/h | 60 m3/h | 50 m3/h |
Pump Head | 28~33 | 28~33m | 24~28m | 24~28m | 22~28m | 22~28m |
Efficiency | 65% | 65% | 65% | 65% | 65% | 65% |
Motor power | 75 kW | 55/75 kW | 37/45 kW | 30/37/45 kW | 11/15 kW | 7.5/11 kW |
Motor speed | 1450/1750rpm | 1450/1750rpm | 1450/1750rpm | 1450/1750rpm | 1450/1750rpm | 1450/1750rpm |
Inlet diameter | 10″ | 8″ | 6″ | 5″ | 4″ | 3″ |
Outlet diameter | 8″ | 6″ | 5″ | 4″ | 3″ | 2″ |
Weight | 1150kg | 1000/1150kg | 920/1050kg | 819/887/920kg | 438/460kg | 358/400kg |
Overall dimensions mm | 2020×675×950 | 1930×650×880 /2000×675×950 | 1848×595×800 /1875×595×850 | 1770×505×835 /1820×585×800 /1845×585×850 | 1545×500×710 / 1585×500×710 | 1435×485×640 /1530×485×710 |
