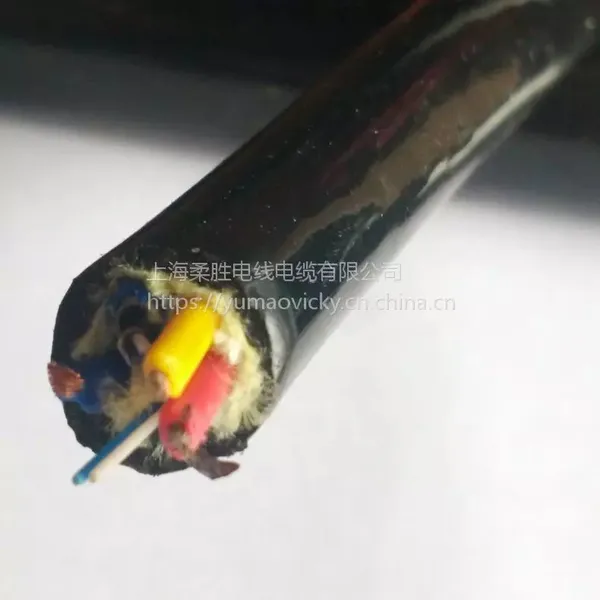

Power cable 3-core 1.0/1.5/2/3.0+ 4-core single-mode optical fiber combination anti-seawater cable Underwater floating cable
Cable combination form:
1, single-mode optical fiber 4 core, not two a group, with armor
2. The specification of power line is 3 cores
3, waterproof depth of 200 meters, the specific depth can be customized according to the requirements
4, tensile parts: imported Kevlar bulletproof wire weaving
5. Tensile strength: 200kg
Scope of application:
Underwater cable is suitable for complex underwater environment, freshwater environment such as all kinds of rivers, lakes and waves as well as inland saline wetland, such as submersible motor, submersible pump, underwater lighting, wading landscape lights and so on. Applications in Marine environment include Marine underwater robot, offshore oil exploration, and ship cable through the warehouse, etc., which requires high performance of anti-corrosion, anti-pressure, and anti-microbial decomposition of seawater.
Cable structure:
Conductor: multi-strand ultrafine stranded oxygen free copper wire, in line with VDE0295CLASS 6 standard
Insulation: Special Butyl acrylic PVC mix or TPE(optional for customers)
Color: ≤0.5mm Color: brown, black, blue, purple, pink, orange
≥0.5mm Color: black number white number number, more than 3 core with yellow and green ground wire (yellow and green optional)
Shielding: tinned copper wire textile shielding, density: more than 85%
Jacket: polyurethane (PUR) Color: black, gray, orange
Rated voltage: cross section
Test voltage: 2500V
Operating temperature range:
Fixed installation -50℃ to +105℃
Mobile installation: -30℃ to +90℃
Bending radius:
Fixed installation: 5 x cable diameter (D)
Mobile installation: when the travel is less than 10 meters, the bending radius is 7.5×D
When the stroke is more than 10 meters, the bending radius is 10×D
Power cable 3-core 1.0/1.5/2/3.0+ 4-core single-mode optical fiber combination anti-seawater cable Underwater floating cable
