ROV Underwater Monitoring Watertight Cable Underwater Robot Accompanying Cable Video Super Five Power Fiber Composite Cable

ROV underwater monitoring watertight cable Underwater robot accompanying cable video Super five power fiber composite cable

ROV underwater monitoring watertight cable Application:

ROV underwater monitoring watertight cable application and a variety of complex underwater environment, the cable has good waterproof performance, the use of multiple strands of pure copper wire twisted super five types of network cable, 8 core 4 groups of twisted-double shield series. In view of its special flexible structure design, it is suitable for the installation of free continuous reciprocating motion without strong stress slow release or forced guidance, especially the frequent bending occasions under industrial environment need to shield the information transmission and monitoring without difference and signal stability, and can effectively resist electromagnetic wave interference.

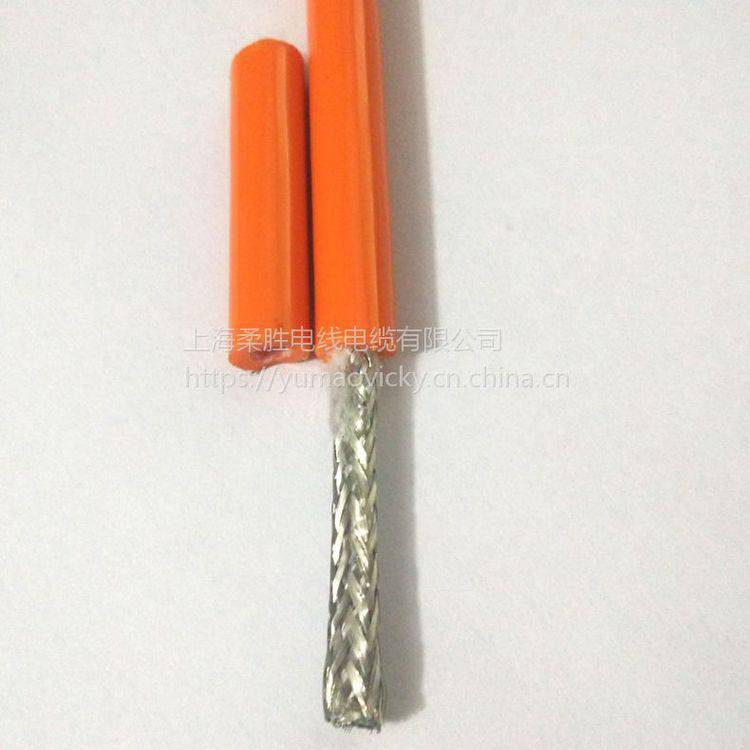

ROV underwater monitoring watertight cable structure

Conductor material: multiple strands of pure oxygen-free bare copper wire stranded

Conductor structure: 7/0.19(±0.004)mm

Insulation material: HDPE(High density polyethylene)

Average insulation thickness: 0.20mm

Insulation thin point: 0.17mm

Outer diameter of insulation: 0.95±0.05mm

Insulation color: (Orange white, orange) (green white, green) (blue white, blue) (brown white, brown)

Sheath material: Ding Qing elastomer/polyurethane material

ROV underwater monitoring watertight cable Electrical characteristics:

Operating temperature: Rated temperature: -20℃~+80℃

The suitable temperature of underwater network cable with special polyurethane jacket: -55℃ to 120℃

Bending life more than 3 million times

Bending radius: The bending radius of the underwater network cable can be as small as 5*D

ROV Underwater monitoring Watertight cable Features:

High flexibility, oil proof, UV resistant, tear resistant, waterproof, cold resistant, anti-interference, flame retardant;

Easy wiring, high cable utilization, long transmission distance, good transmission effect, differential transmission anti-interference ability;

Bending life of more than 3 million times (customized underwater network cable bending times can be higher), suitable for fast moving occasions.

ROV underwater monitoring watertight cable Underwater robot accompanying cable video Super five power fiber composite cable
