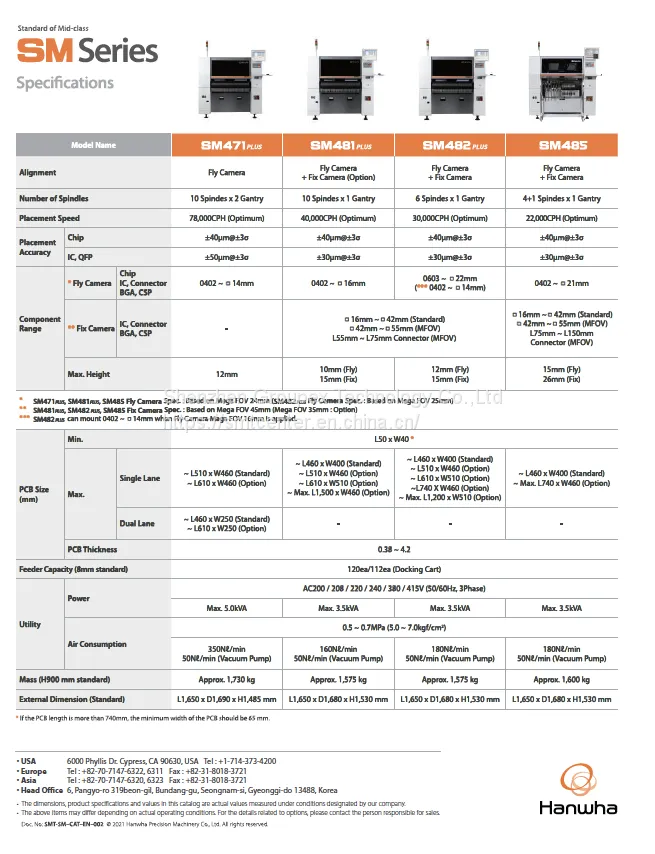

The Hanwha SM 481 is a high-speed pick-and-place machine designed for efficient and precise component placement on printed circuit boards (PCBs). Here are some key features and specifications of the SM 481
Placement Speed: The SM 481 offers impressive placement speeds, with a maximum of 40,000 components per hour (CPH), making it suitable for high-volume production.
Component Range: It supports a wide range of components, including chips (from 01005 up to 80 x 70 mm), fine pitch components, BGA, CSP, QFP, and more. This versatility allows for handling various PCB assembly requirements.
Vision System: The machine is equipped with a high-resolution vision system for accurate component alignment and placement. It ensures precise positioning, even for complex components and fine-pitch packages.

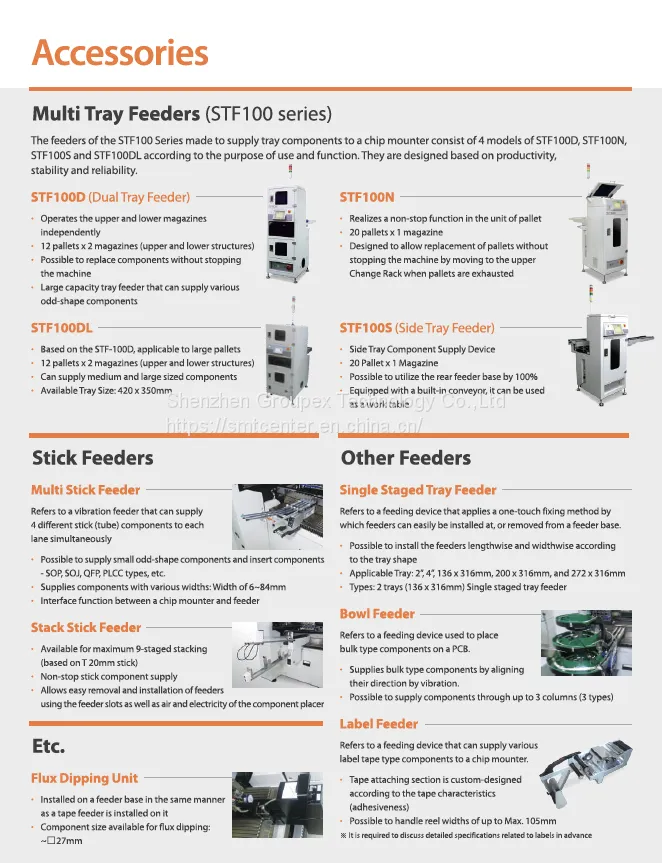

Feeder Capacity: The SM 481 can accommodate up to 80 intelligent feeders, offering a large capacity for component supply. It supports both tape and stick feeders.
