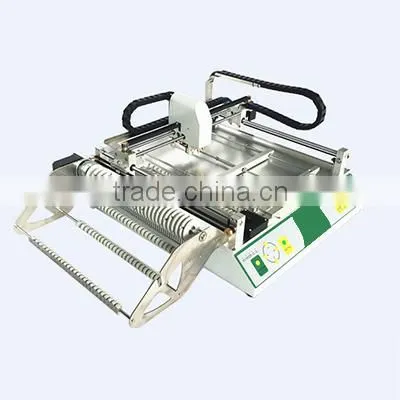

TVB 802A SMD Machine
360° Rotating Head Support
Hardware Properties
The boundary dimension of this equipment is 875mm*640mm*310mm It mainly consists of a work head, top and bottom visual systems, a work table, feeding racks, etc.The moving range of X and Y axes is 395*445mm, while the moving range of Z axes is 15mm.,PCB of size 330*340mm at most, available for jointed board operation.
Technical parameters
Version |
RDG 802A |
Applicable PCB |
20mm*20mm--330mm*340mm |
XY moving range |
425*500mm |
Z moving range |
15mm |
Mounting capability |
5500 component per hour |
Mounting accuracy |
0.025mm |
Applicable components |
0402,0606,0805,sop8 ...QFN |
Components supply configuration |
Tape real,bulk package(IC) |
Tape width, feed combinations |
8mm,12mm,16mm(8mm=22 12mm=3 16mm=1 ic=1) |
feeders |
26 |
Machine dimension |
875mm*640mm*310mm |
Visual camera |
2 HD CCD Camera |
Visual system(down) |
Automatic recognize fiducial mark |
Visual system(up) |
Automatic recognize components and adjust |
Vacuum pump quality |
3 cacuum pump (one positive,two negative) |
Power supply |
AC220V or AC110V |
power |
150W |
weight |
G.W:60kg N.G:50kg, Vaccum W.:76kg |
Packing size |
0.4 |
Advantages:
Industrial-strength up visual system,with professional visual algorithms to determine the center of the components,calculate the position offset and angel offset so that we can pick and place efficiently.
Industrial-strength under visual system
It’s able to identify the Mark point and determine the coordinates of component by manually or automatic control
Mute vacuum pump
With 2 built-in imported mute vacuum pump and a blow air pump. 5.Manual man-machine interface. Chip place zone
Accessaries List: TVM802A accessories list:
1) Pick and Place Machine 802A: 1 set
2) 4 types of nozzle: Totally 4pcs
(Version: No.1-1pc,No.2-1pc,No.3-1pc,No.4-1pc) 3) Power line:1pc
4) Network cable: 1pc
5) USB wire(video cable):2pcs
6)Prick W/spring:1pc
7) 1.5mm hex screwdriver: 1 set
8)spanner:2pcs
9) Grease:1pc
10)Rubber ring:about 10pcs
11)Video training course: 1 set
12)User manual:1pc
