TM-IR1000 IR far-infrared Drying conveyer:
Technical Parameter
| Conveyer width | 1200mm |
| Total wattage | 55KW |
| Wind fan wattage | 45W/220V*2 |
| Conveyer motor wattage | 90W/1P/220V |
| ConveyEr speed | 0~25m/min |
| Speed adjustment | Stepless |
| U Heater Lamp wattage | 1.5Kw/220V×6pcs |
| Max height of production | 100mm |
| Total Length | 15m, Heat length: 12m |
| Entering length | 2.5m Exit elngth:0 .5m |
Heating principle.

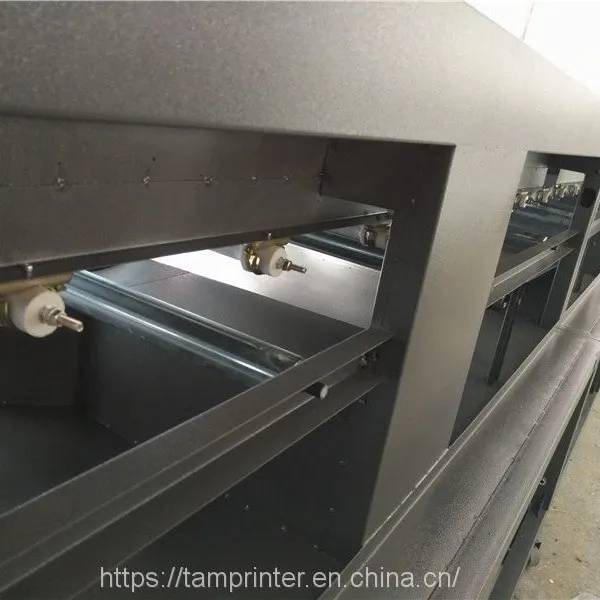

1. Infrared heating tube is located in the duct on both sides of the infrared oven, according to the requirements of the material, the use of temperature differences, divided into top heating, bottom heating, left and right while heating and so on. The heating power can be controlled in groups by switches! The motor blows air through the duct to achieve an even temperature inside the oven.
Precautions for use .1. Infrared drying oven placed at a certain space, there must be a certain distance from the wall on all sides, it is recommended to have more than 2M.
2. bake the items arranged can not be too dense. Far-infrared oven at the bottom (heat sink) can not put objects, so as not to affect the hot air circulation.
3. It is forbidden to bake the inflammable and explosive articles and the volatile and corrosive articles.
4. Fuming pay off after the first cut off the power, and then can open the studio door, remember not directly contact with the hands of fumigation items, using special tools or gloves with insulation to get the fake compensation items, so as not to burn.
5. Far-infrared oven, the temperature can not exceed the maximum temperature of the far-infrared oven, the general far-infrared oven at 250 degrees below.
6. Bake goods, the top of the vent must be open, according to the requirements of the mediation size.
7, the customer must be done in the use of personal instrument control, to prevent arbitrary personnel arbitrary operation. In order to avoid problems such as confusion in the operation of temperature control instruments.
8. There are special requirements of customers can buy special far-infrared oven, such as explosion-proof oven, high temperature oven, oven and other programs.
welcome to contact me if you want to learn more about IR drying tunnel.
