Home > Products > Tunnel Infrared Dryer > Singapore pc film infrared furnace screen printing membrane switch tunnel drying

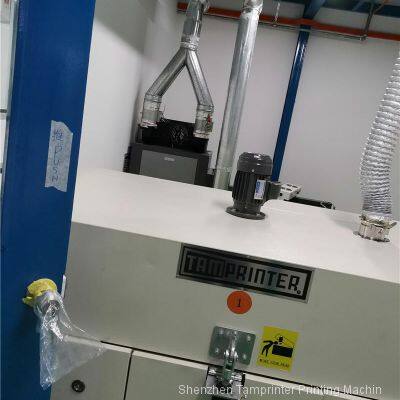

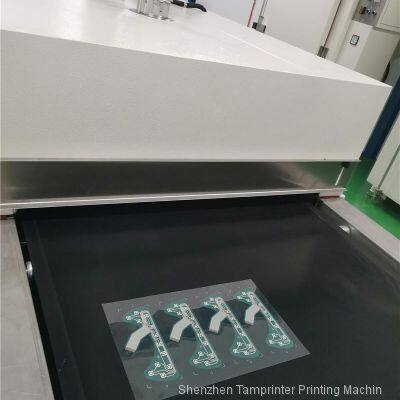

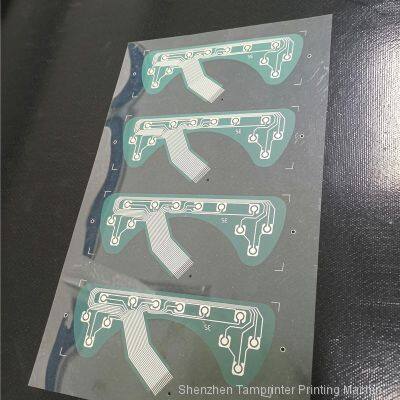

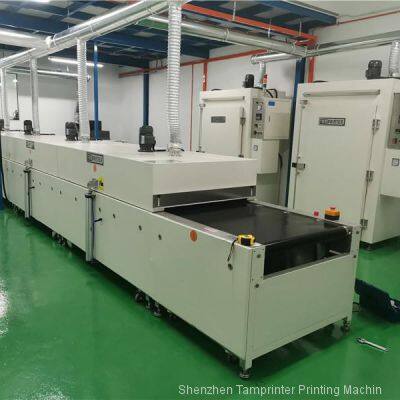

Singapore pc film infrared furnace screen printing membrane switch tunnel drying
- 1000 Set / Sets per Month
- T/T L/C
- 7 days
Product Details
Brand Name: | TAMPRINTER | Place of Origin: | China | Model Number: | TM-IR-B801100 |
Type: | Other, Tunnel Infrared Dryer | After-sales Service Provided: | Overseas third-party support available | Condition: | New |
Product Description
TM-IR-B801100
Ambient temperature
~200°C
Radiation + convection
tunnel oven
8443192290 415v 3phase 50hz
Stainless steel 304 lining
11 m * 1m * 1.3m
Inlet 2m Outlet 1m
4 zones ,2m per heat zones.
2+2+2+2+2+1=11
370W*4PCS Top fans (0.5Hp)
4 Axial fans via 1pcs VDF regulates speed
Black antistatic PTFE (Teflon) cloth belt no hole
belt width: 0.8 m
Belt thickness 0.4mm
Work temperature: 100 or 200 Celsius
Medium wave infrared carbon fiber heat tube on the top 36 pcs
36*1kw+4*0.37kw+other=38kw
All lamp 418v
4 cylinder Lift open oven cover
4 'Exit'=Exhaust gas or smoke exhaust (With control Valve)
Free fitting
Spare 0.8m width 0.4mm thickness Black antistatic PTFE belt-----1 pcs
Spare Carbon fiber lamp---10pcs
Spare TM-UV400L Transformer---1 pcs
Cabinet oven 8419899090 418v 3phase 50hz
Shape Size (L*W*H) mm 1640*0.95*2200
Weight 500kg
Inner size of box: (L*W*H) 1000*660*1500mm
Power (Kw) 12
Heat pipe 418v
Range of Temperature(ºC) 20-200
Stainless steel 304 lining
SUS304
Drying Rack
Trolley
7326909000 Shelf dimensions 900 * 600 * 1450
Mesh size 800 * 500(fit 2pcs 3045 film)
50 layers*25mm layer spacing
no grid,
Material stainless steel 304
4 inch wheels
Temperature resistance 250 Celsius /60min
Tamprinter only focuses on one thing: how to make your label and sticker screen printing work choose a better set of equipment solutions.
Company Profile
SHENZHEN TAMPRINTER PRINTING MACHINERY CO.,LTD. is a wholly-owned subsidiary of the Tamprinter printing machinery group limited designed to take up the invenstment ,design and construction of the most professional plastic sheet and paper screen printing machinery for world. We have supplied OEM service for the domestic counterparts since 2003. OEM products have been achieved CE certification.
Tamprinter printing machinery group limited (referred to as: Tamprinter brand printer supplier) is one of the first settled Made-In-China labels & stickers screen printing machinery foreign trade service market cross-border electricity providers.
Tamprinter are Alibaba and Made-In-China,Diytrade Gold service provider, has service throughout the printing industry of more than 85 country.
The main business is providing one-stop solution, mainly offer Screen Printing Complete Equipment for service for the manufacturer of technical labels, stickers, labels. such as Aluminium labels printing ,Aluminium ceiling auto screen print, stainless labels printing, polycarbonate labels screen printing, brass signs screen printing, PVC signs embossing,3M self-adhesive stickers printing market. . . Etc.
In March 2013 the company strategic upgrades, invested Three millions to build a new printer factory , the depth of integration of B2B, the rich resources, the establishment of professional project team operates its own brand - TAMPRINTER, development of screen printing machinery products, to sheet screen printing equipments as an opportunity to develop more new business models and the extension of explosive force. We always adhere to the user first value and service concept, and strive to become the most word-of-mouth electricity supplier, and strive for service millions of labels and stickers manufacturer .
Original intention(bodhicitta-samutpada):
People oriented management in enterprise, Good business is business for responsibility, People share prosperity and responsibility together!
Key products:
Screen printing machine,UV curing machine, IR tunnel dryer.
Company Profile
Tamprinter printing machinery group limited is one of the most professional special printer supplier of Plastic Field in China. We have supplied OEM service for the domestic counterparts since 2003. OEM products have been achieved CE certification.
Due to business expansion, Shenzhen Tamprinter printing machinery limited International trade department have been separated from the parent company in March 2013.
Key products: Pad printer, Screen printer, UV curing machine, Heat transfer machine.
Major market: Globle.
Business scopes:
1. Research, develop, produce and sell: Pad printer, Screen printer, Heat transfer machine, Hot stamping machine, Pre-post printer(UV curing machine, Flame treatment machine ,UV exposure clich machine, Coating emulsion machine, Silk mesh tighten machine, Screen stencil drying oven, Silk screen frame exposure machine, Steel pad plate oven, IR oven, IR drying tunnel conveyer, ) ;
2. Trade and authorize for the patent of the above products, Services about design, testing, maintenance, and technical consulting ;
3. Valet Manufacture: flame treatment gun,screen frame, Screen Stencil,pad, steel plates, film , Drying Racks Trolley and the relative moulds, jigs and parts;
4. Sale by proxy the relative supporting materials: printing ink, Ink Adjustment tool, Rubber pads Materials, Pad Printing Blade, ink cup and ring, Pad holder, ink roller, Screen Silk, Aluminium Screen Frame, Rubber Squeegee, sensitive emulsion, Emulsion Coating tool, Etching powder, Sensor Switch, Tension meter,Spraying gun, Circuit board, Inkwell, Solenoid Valve, hot stamping foil ,High temperature tape,Stamp plate,Silicon rubber roller,Heat transfer paper,High temperature glue, UV lamp ,UV lamps Trigger etc;
5. Our engineer can communicate with clients at anytime in english, design development use UG, Proe, Autocad, Mastercam ;
6. Import and export business of the above items.
