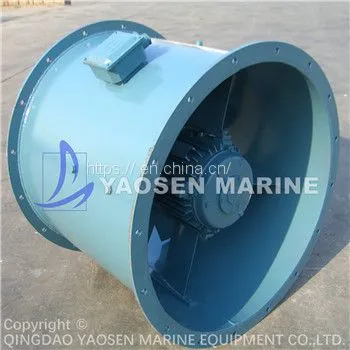

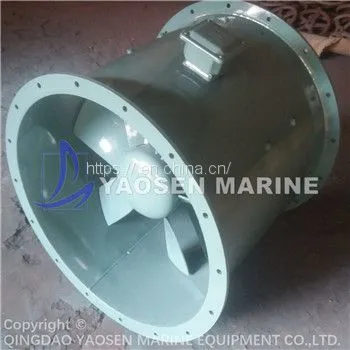

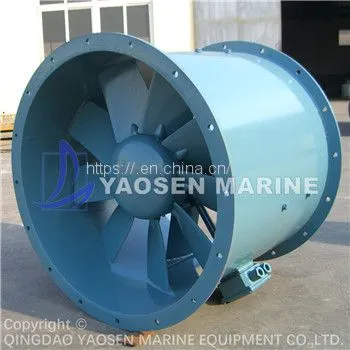

CZF Series Marine Axial Flow Fan
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
YAOSEN
Place of Origin:
China
Model Number:
CZF30A-CZF140D
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO/SHANGHAI/TIANJIN/GUANGZHOU and so on
Delivery Detail:
10 days
Related Products
-
CLZ Series High Pressure Marine Axial Flow FanNegotiableMOQ: 1 Piece -
CWZ(CXZ) Series Marine or Navy Small-sized Axial Flow FanNegotiableMOQ: 1 Piece
-
CDZ Series Marine Low-noice Axial FanNegotiableMOQ: 1 Piece
-
CBZ Series Marine Explosion-proof Axial Flow FanNegotiableMOQ: 1 Piece
-
CSZ Series Marine Water Driven Gas Freeing Axial FanNegotiableMOQ: 1 Piece
Brand Name
YAOSEN
Place of Origin
China
Model Number
CZF30A-CZF140D
Certification
Other, CCS/BV/LR/VR/KR and so on
After-sales Service Provided
Overseas service center available
Voltage
220V/380V/440V
Power
0.25-30 KW
Speed
3500/2920/1750/1460/1160/970 r/min
Air Volume
960-114000 m³/h
Blade Material
Other, aluminum
Mounting
Duct Fan
Electric Current Type
AC
1.General
CZF series marine axial fans (simply the fans) are new-type & energy save, low-noise fans. They are suitable for every cabin air ventilating and exchanging on ships. They are also applicable in other places that suit.
2.Features
CZF fans are characterized by their extreme compact structure, small size, light weight, less power consumption, smooth and reliable in operation, being suitable for reversing operating and excellent resistance to a certain degree shock and vibration.
3.Structure
The impeller is made of anticorrosive case aluminum alloy, it is dynamically shaped and carefully balanced to ensure the fan having reliable anticorrosive property and operating smoothly.
The impeller is made of anticorrosive case aluminum alloy, it is dynamically shaped and carefully balanced to ensure the fan having reliable anticorrosive property and operating smoothly.
The fan casing, being welding construction, is made of steel plate with flanges for connection with duct at both sides by bolts, and the surface is fully treated by anticorrosive painting. As desired, the casing can either be made into an integral one or an open type along the axial direction, the impeller and the motor are fixed on the movable half of the casing so as to bring convenience for on the-spot repair and the replacement of its spare parts.
The fan is manufactured with a built-in casing motor structure. The impeller is directly mounted on the motor shaft.
Taking a front view from the motor side, the impeller should be turning clockwise. In practice, it can be turning counter clockwise too. Such being the case, the reversing characteristic are capable of no less than 60 percent of normal rating.
The fan can be matched with AC380V, 50Hz or 440V, 60Hz marine or navy motor.
6.Outline dimensions:
We could Design and Produce the Marine fan,Industrial Fan,and Other Ventilation Equipment according to your detailed requirement !
4.Working conditions
Medium temperature: -25℃ ~ +50℃
Max relative humidity: 95%
Periodical swing:±22.5°
Continued transversal incline:±15°
Continued longitudinal incline:±10°
Vibration: existent
Impact: existent
5.Model explanation
6.Outline dimensions:
Please contact us and get detailed Technical parameters and Drawings.
We could Design and Produce the Marine fan,Industrial Fan,and Other Ventilation Equipment according to your detailed requirement !
We could Design and Produce the Marine fan,Industrial Fan,and Other Ventilation Equipment according to your detailed requirement !
