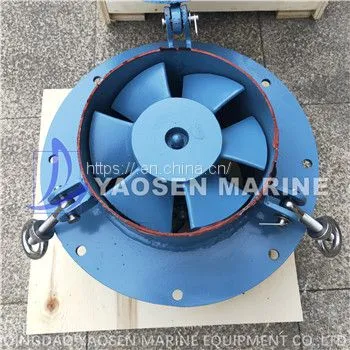

CWZ(CXZ) Series Marine or Navy Small-sized Axial Flow Fan
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
YAOSEN
Place of Origin:
China
Model Number:
CWZ-200D——CWZ-280
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO/SHANGHAI/TIANJIN/GUANGZHOU and so on
Delivery Detail:
10 days
Related Products
-
CDZ Series Marine Low-noice Axial FanNegotiableMOQ: 1 Piece -
CBZ Series Marine Explosion-proof Axial Flow FanNegotiableMOQ: 1 Piece
-
CSZ Series Marine Water Driven Gas Freeing Axial FanNegotiableMOQ: 1 Piece
-
CBZ-V Series Marine Explosion-proof Axial FanNegotiableMOQ: 1 Piece
-
JCZ-20 Marine Axial Flow Fan for BathroomNegotiableMOQ: 1 Piece
Brand Name
YAOSEN
Place of Origin
China
Model Number
CWZ-200D——CWZ-280
Certification
Other, CCS/BV/LR/VR/KR and so on
After-sales Service Provided
Overseas service center available
Voltage
380V/440V
Power
0.04——0.25 KW
Speed
1400-3400 r/min
Air Volume
450——2210 m³/h
Blade Material
Other, aluminum
Mounting
Duct Fan
Electric Current Type
AC
1.General
CWZ(CXZ) series marine or navy small-sized axial fans are suitable for, ventilation of kitchen ,lavatory, bulkhead ,the public places ,the meeting room etc, in the naval and merchant shops. They are also applicable in other places that suit.
2.Features
The fans are designed according to arbiter votes flow method. We choose the most reasonable votes flow coefficient on the vanes of the fans, specification ,distribute every sectional characteristic speed & length of the vanes ,the fans have low-noise, small size, light-weight ,stable performance , etc.
In the course of designing & manufacturing, we had thought fully of the marine special conditions, the impellers are strictly made by dynamic balance adjustment & over speed test. Therefore, the fans also have the features of good-anticorrosion, anti-swing, vibration resistance ,shock resistance, stable running and safety reliable.
The fans can be used with 380V/220V.50Hz or 440V/220V,60Hz.

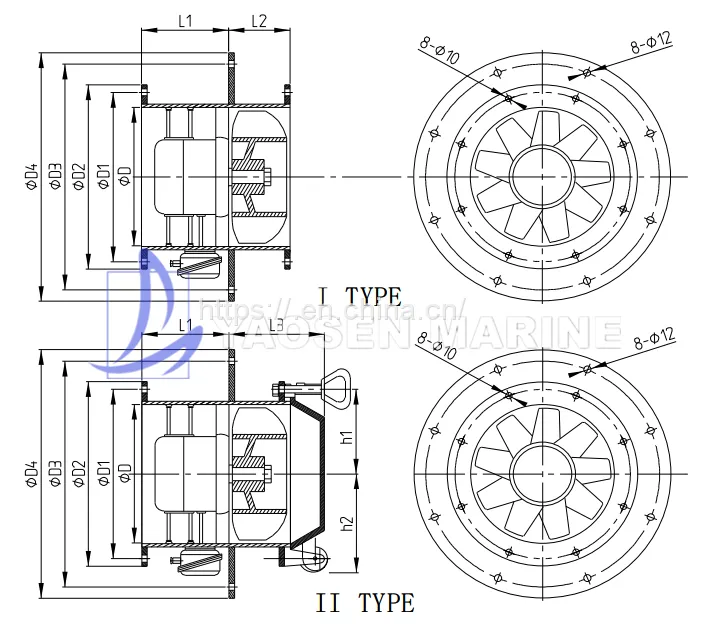

3.Structure
The fans can be made into two structure types, type Ⅰ(tube type),type Ⅱ(porthole type):

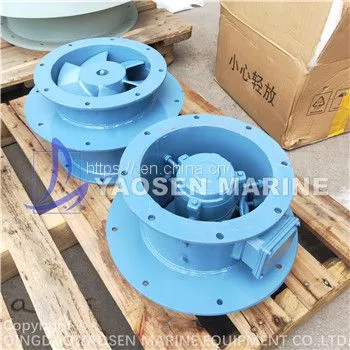

Ⅰ type-tube type for ventilation of short tubes or fixed on the bulkhead.

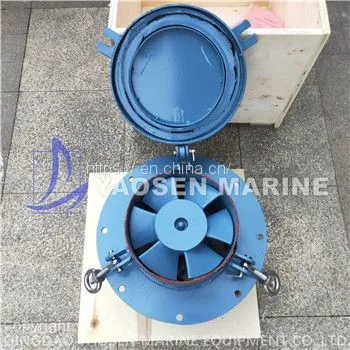

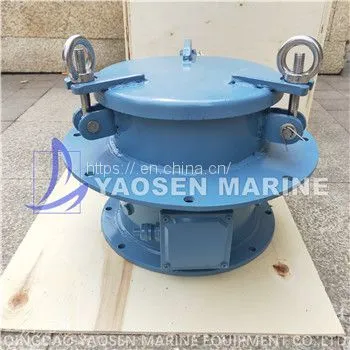

Ⅱ type fixed on porthole .It can be fixed on the porthole or the bulkhead. Since it's waterproof it can be easily opened or closed, keep rain or sea water out.
Impeller is made of cast aluminum alloy, casing is welded of steel sheet.
4.Working conditions
Medium temperature: -25℃ ~ +50℃
Max relative humidity: 95%
Periodical swing:±22.5°
Continued transversal incline:±15°
Continued longitudinal incline:±10°
Vibration: existent
Impact: existent

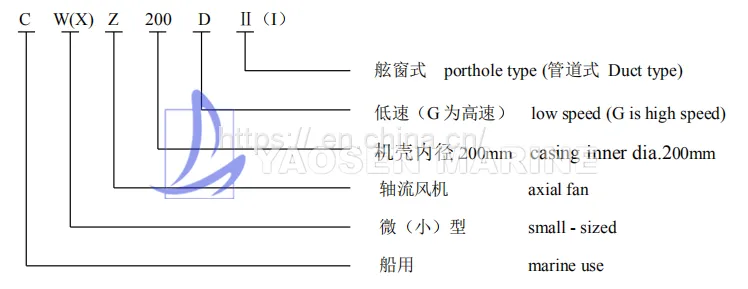

5.Model explanation
6.Outline dimensions:
Please contact us and get detailed Technical parameters and Drawings.
We could Design and Produce the Marine fan,Industrial Fan,and Other Ventilation Equipment according to your detailed requirement !
