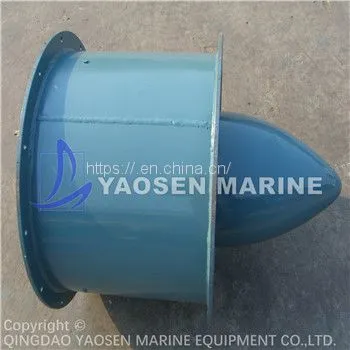

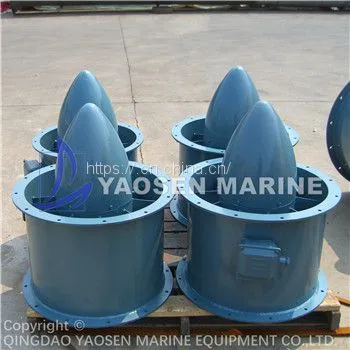

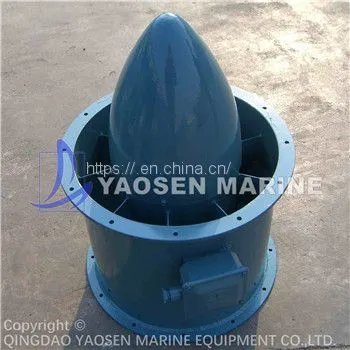

CLZ Series High Pressure Marine Axial Flow Fan
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Brand Name:
YAOSEN
Place of Origin:
China
Model Number:
CLZ1-J——CLZ14-J
Payment & Shipping
Payment Methods:
Port of Shipment:
QINGDAO/SHANGHAI/TIANJIN/GUANGZHOU and so on
Delivery Detail:
10 days
Related Products
-
CWZ(CXZ) Series Marine or Navy Small-sized Axial Flow FanNegotiableMOQ: 1 Piece -
CDZ Series Marine Low-noice Axial FanNegotiableMOQ: 1 Piece
-
CBZ Series Marine Explosion-proof Axial Flow FanNegotiableMOQ: 1 Piece
-
CSZ Series Marine Water Driven Gas Freeing Axial FanNegotiableMOQ: 1 Piece
-
CBZ-V Series Marine Explosion-proof Axial FanNegotiableMOQ: 1 Piece
Brand Name
YAOSEN
Place of Origin
China
Model Number
CLZ1-J——CLZ14-J
Certification
Other, CCS/BV/LR/VR/KR and so on
After-sales Service Provided
Overseas service center available
Voltage
220V/380V
Power
0.142——10.2 KW
Speed
2900/1450 r/min
Air Volume
1600——25000 m³/h
Blade Material
Other, aluminum
Mounting
Duct Fan
Electric Current Type
AC
1.General
CLZ Series vertical axial-flow fan for marine use (simply the fan), are designed primarily for ventilation of the machinery room and each compartment. The construction can be delivered for air supply or air exhaust, the ocean air containing salt fog or acid vapor vaporized from storage battery area. Temperature of the air transferred can not exceed 50℃.
2.Construction
CLZ Series vertical axial-flow fan for marine use (simply the fan), are designed primarily for ventilation of the machinery room and each compartment. The construction can be delivered for air supply or air exhaust, the ocean air containing salt fog or acid vapor vaporized from storage battery area. Temperature of the air transferred can not exceed 50℃.
2.Construction

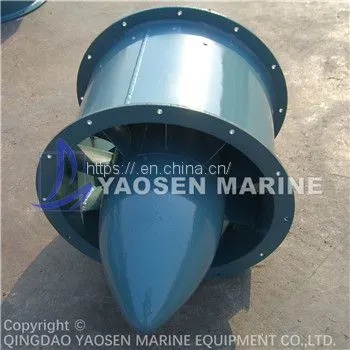

CLZ fan consists of the impeller, casing motor, guide cowl, conical diffuser, etc.
Casing is made of steel plate of having ample thickness, being composed of an inner cylinder, a shell and a down-stream guide vane. The shell is made in the shape of cylindrical ducts at both ends. The inner cylinder and the shell is connected with the downstream guide vane used to guide the air flow.
Motor—Built-in Motor type (to be mounted on the inner cylinder) which is manufactured by the motor factory is specially designed to suit CLZ fan construction, it is totally enclosed, natural cooled, and it is capable of standing salt spray, vibration or shocking. There are two types: ZZT-H Series DC marine motor (rated voltage 220V) and Y-H series AC marine motor (rated voltage 220/380V).
Propeller is made of carrion resistant aluminum alloy (cast), being carefully balanced and mounted directly on the motor shaft extension.
The guide cowl installed on the inlet and the conical diffuser installed on the outlet are used to cut the vortex of the air flow, to ensure higher efficiency of the fan. Material: in forced plastics.
Finish—the fan is both printed and painted with marine paint.3.Working conditions
Medium temperature: -25℃ ~ +50℃
Max relative humidity: 95%
Periodical swing:±22.5°
Continued transversal incline:±15°
Continued longitudinal incline:±10°
Vibration: existent
Impact: existent
4.Outline dimensions:
Please contact us and get detailed Technical parameters and Drawings.
We could Design and Produce the Marine fan,Industrial Fan,and Other Ventilation Equipment according to your detailed requirement !
