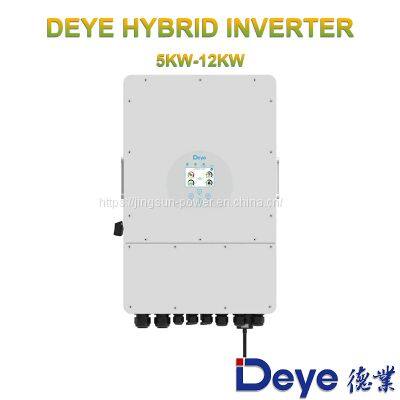

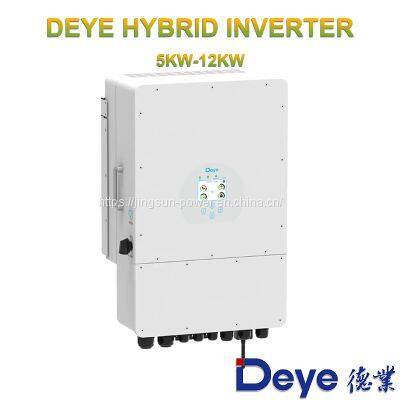

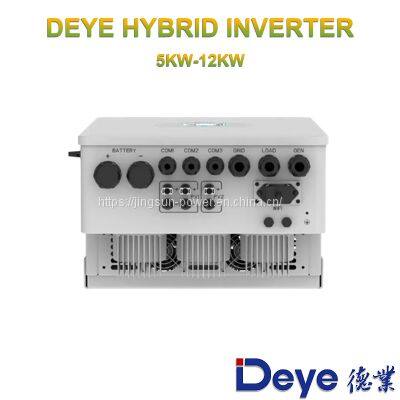

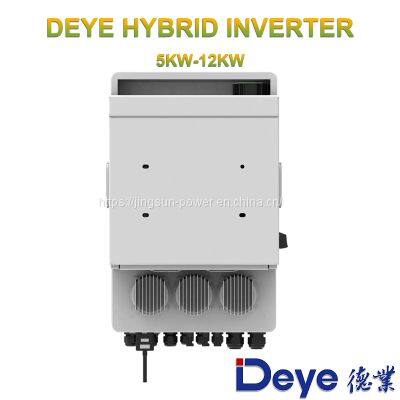

Help CenterDeye 10kw Hybrid Inverter
Related Products
Product Advantages
1. 100% Unbalanced Output on Each Phase
One of the most significant advantages of the Deye 10kw Hybrid Inverter is its 100% unbalanced output on each phase. This means that the inverter can deliver the same amount of power on all three phases, even if the load is imbalanced. This feature is essential for powering three-phase motors and equipment that require balanced power.
2. Max. Output Up to 50% Rated Power
The Deye 10kw Hybrid Inverter has a maximum output of up to 50% of its rated power. This means that the inverter can handle a short-term load that exceeds its rated power without tripping or shutting down. This feature is particularly useful for starting heavy loads, such as air conditioners and refrigerators, which require more power at start-up than during operation.
3. 48V Low Voltage Battery, Transformer Isolation Design
The Deye 10kw Hybrid Inverter has a 48V low voltage battery and transformer isolation design. This feature allows the inverter to convert DC power from a battery or solar panels into AC power for use in homes and businesses. The transformer isolation design also ensures a safe and reliable electrical connection.
4. Supports Storing Energy From Diesel Generator
Another significant advantage of the Deye 10kw Hybrid Inverter is its ability to store energy from a diesel generator. This feature helps to reduce fuel consumption and operating costs since the generator can be used to charge the batteries during off-peak hours. The stored energy can then be used during peak hours, reducing the load on the generator and prolonging its lifespan.
5. Easy Installation and User-Friendly
The Deye 10kw Hybrid Inverter is easy to install and user-friendly. The inverter comes with a comprehensive user manual that provides step-by-step instructions for installation and operation. The inverter also features a user-friendly LCD display that allows users to monitor the inverter's performance and adjust its settings.
In conclusion, the Deye 10kw Hybrid Inverter is a reliable and efficient solution for generating power from renewable sources such as solar panels and batteries, as well as from conventional sources such as diesel generators. Its 100% unbalanced output on each phase, maximum output up to 50% of rated power, 48V low voltage battery and transformer isolation design, support for storing energy from diesel generators, and user-friendly design make it an excellent choice for homes and businesses.
Technical Data
Model |
SUN-5K -SG04LP3-EU |
SUN-6K -SG04LP3-EU |
SUN-8K -SG04LP3-EU |
SUN-10K -SG04LP3-EU |
SUN-12K -SG04LP3-EU |
Battery Input Data | |||||
Battery Type |
Lead-acid or Lithium-ion |
||||
Battery Voltage Range (V) |
40-60 |
||||
Max. Charging Current (A) |
120 |
150 |
190 |
210 |
240 |
Max. Discharging Current (A) |
120 |
150 |
190 |
210 |
240 |
External Temperature Sensor |
Yes |
||||
Charging Curve |
3 Stages / Equalization |
||||
Charging Strategy for Li-Ion Battery |
Self-adaption to BMS |
||||
PV String Input Data | |||||
Max. DC Input Power (W) |
6500 |
7800 |
10400 |
13000 |
15600 |
Rated PV Input Voltage (V) |
550 (160-800) |
||||
Start-up Voltage (V) |
160 |
||||
MPPT Voltage Range (V) |
200-650 |
||||
Full Load DC Voltage Range (V) |
350-650 |
||||
PV Input Current (A) |
13+13 |
26+13 |
|||
Max. PV ISC (A) |
17+17 |
34+17 |
|||
No.of MPP Trackers |
2 |
||||
No.of Strings per MPP Tracker |
1+1 |
2+1 |
|||
AC Output Data | |||||
Rated AC Output Active Power (W) |
5000 |
6000 |
8000 |
10000 |
12000 |
Max AC Output Active Power (W) |
5500 |
6600 |
8800 |
11000 |
13200 |
AC Output Rated Current (A) |
7.6/7.2 |
9.1/8.7 |
12.1/11.6 |
15.2/14.5 |
18.2/17.4 |
Max. AC Current (A) |
8.4/8 |
10/9.6 |
13.4/12.8 |
16.7/15.9 |
20/19.1 |
Max. Three-phase Unbalanced Output Current (A) |
11.4/10.9 |
13.6/13 |
18.2/17.4 |
22.7/21.7 |
27.3/26.1 |
Max Output Short Circuit Current (A) |
75 |
||||
Max. Continuous AC Passthrough (A) |
45 |
||||
Peak Power (off grid) |
2 time of rated power, 10 S |
||||
Power Factor Adjustment Range |
0.8 leading to 0.8 lagging |
||||
Output Frequency and Voltage |
50/60Hz; 3L/N/PE 220/380, 230/400Vac |
||||
Grid Type |
Three Phase |
||||
Total Harmonic Distortion (THD) |
|||||
DC Current Injection |
|||||
Efficiency | |||||
Max. Efficiency |
97.60% |
||||
Euro Efficiency |
97.00% |
||||
MPPT Efficiency |
99.90% |
||||
