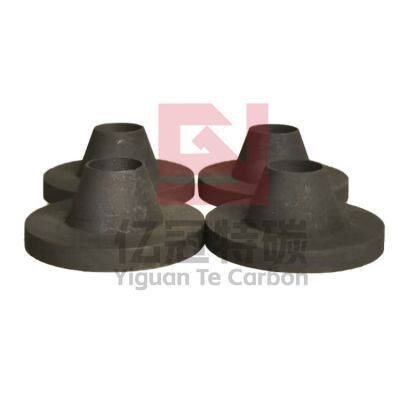

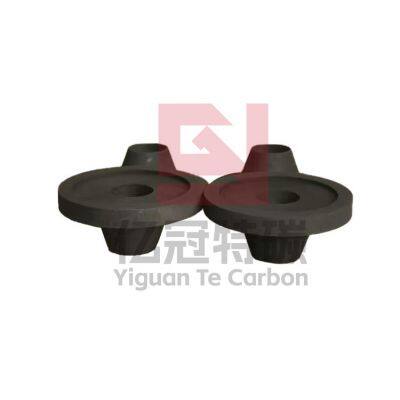

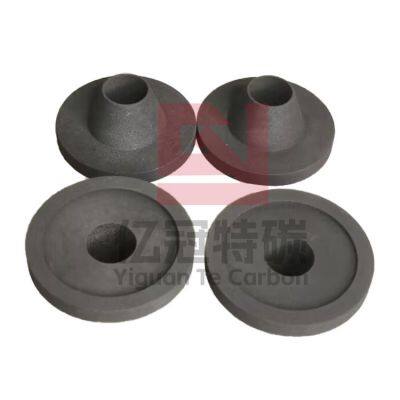

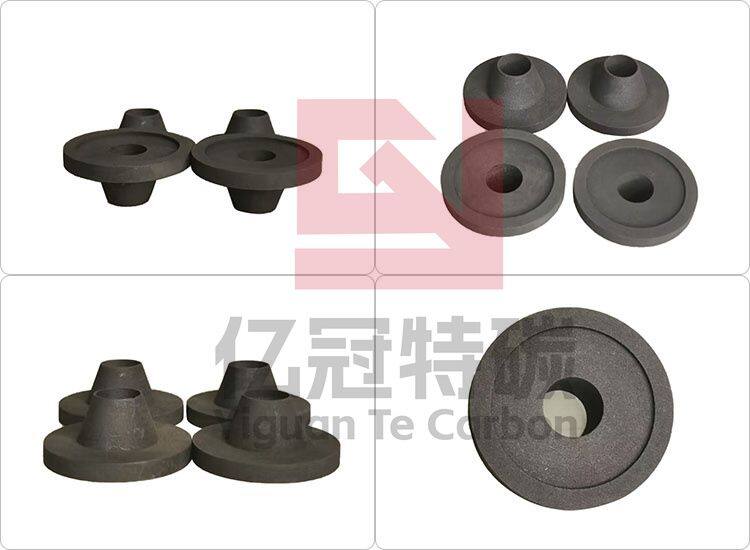

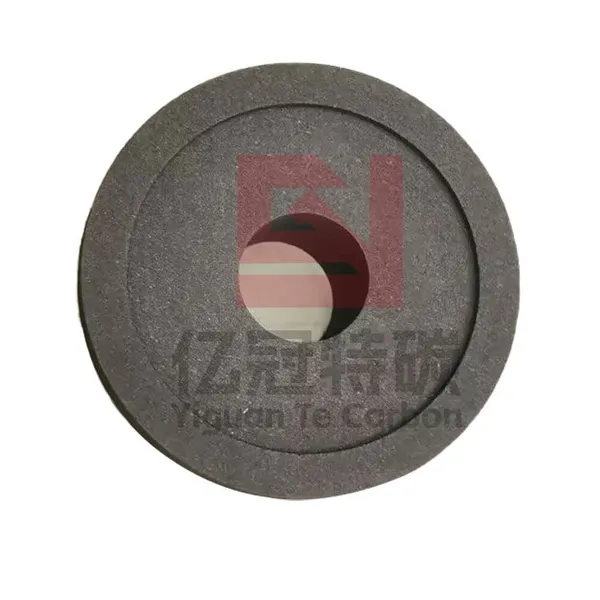

Carbon graphite bush
Product introduction
A carbon graphite bush, also known as a carbon graphite bearing , is a type of bearing made from carbon graphite material. It is used to provide low friction and wear-resistant support for rotating shafts or other moving parts in various applications.
Specifications of graphite bush
Model No. |
Bulk Density (g/cm³) |
Granularity/partical size (μm) |
Thermal Conductivity W/m.k |
Thermal Expansion Coefficient (indoor-600°C) |
YG-4 |
1.75 |
13-15 |
121.1 |
5.46 |
YG-5 |
1.85 |
13-15 |
139.2 |
4.8 |
YG-10 |
1.70 |
12 |
85 |
5.8 |
YG-6 |
1.90 |
140 |
4.5 |
|
YG-7 |
1.81 |
8-10 |
85-110 |
5.7 |
YG-8 |
1.90 |
8-10 |
85-110 |
5.85 |
Features of carbon graphite bush
1. Self-lubricating:it can operate without the need for additional lubrication, reducing maintenance requirements.
2. Low friction: It helps reduce wear and minimize energy loss during operation.
3. Temperature resistance: It can withstand high temperatures, making them suitable for applications in elevated temperature environments.
4. Chemical resistance: It has good chemical resistance to many aggressive chemicals, making it suitable for applications involving corrosive environments.
5. Excellent wear resistance: Carbon graphite bushes offer excellent wear resistance, ensuring prolonged service life and improved system reliability.
Applications of graphite bush
Graphite bush is widely used in pumps and compressors for applications like shaft support, sealing, and wear resistance. They provide reliable and long-lasting performance even in demanding operating conditions.

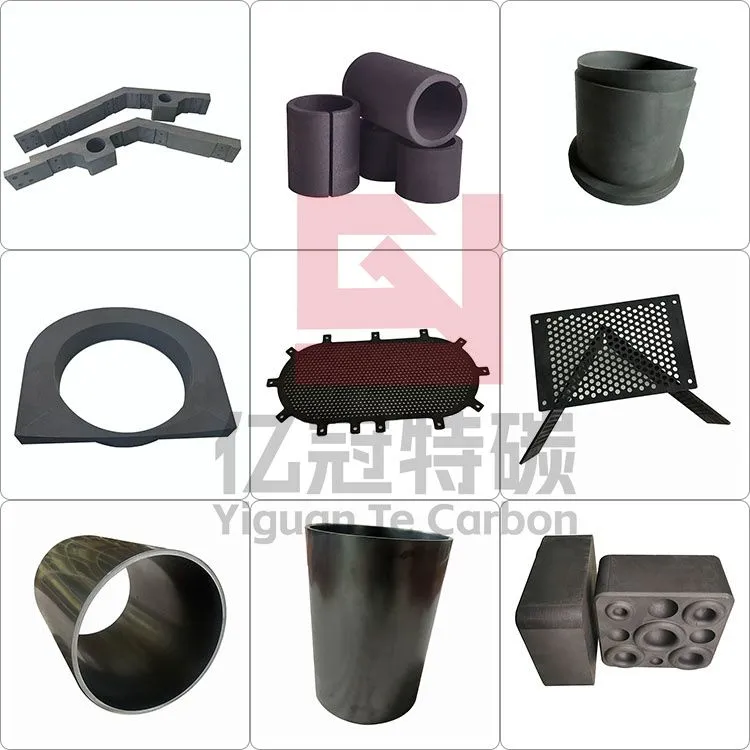

Related carbon graphite bush
As a factory specializing in graphite mold production, we understand the importance of providing customized solutions to meet the unique needs of our clients.
Packages
Process of graphite bush
1. Pls provide the drawing if you have(CAD, PDF, hand-made drawing)
2. Pls inform the dimension, quantity, material, accuracy, etc.
3. Pls confirm processing technique.
Attentions
In order to protect the graphite rods to extend the service life, we need to attention the followings tips:
1. After usage, the graphite crucible needs to be cleaned thoroughly.
2. Metal can’t be allowed to cool in the crucible. When reheated, residual metal can expand and cause the crucible to break.
3. After use in dry place, avoid rain intrusion;
4. Slowly baked to 500 degrees before usage
