Label Sheet Electric Vertical UV Ink Screen Printing Machine with Tunnel Dryer

tm-z6 Electric vertical screen printing machine with uv tunnel  curing machine factory test video:

youtu.be-----SId5AKjTH_g

Production line working video:

youtu.be----QW4J3U4AdyU

Screen printer Technical  parameter:

if add robot arm add $3000

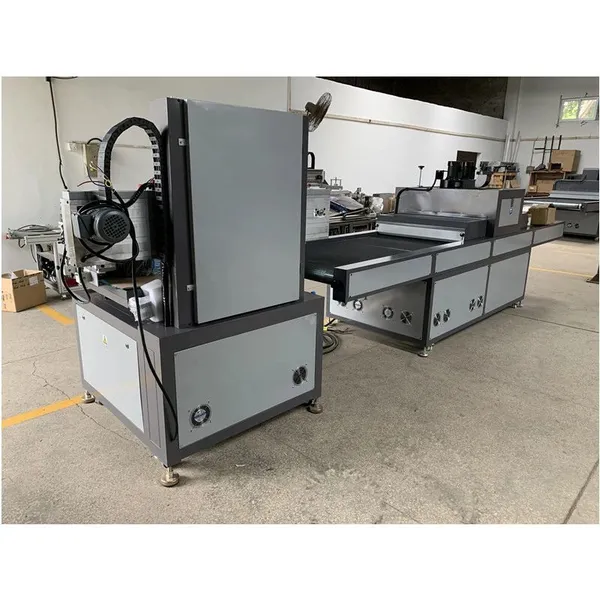

uv tunnelTechnical parameters

TM-UV750 UV curing machine  2.55m*1.05m*1.45m

Plywood 2.7m*1.2m*1.8m   about 6m³

input 850+shade 200+tunnel 700+shade 200+output 550=2500mm

Distance from Handrail to ground 820mm

Distance from belt to ground 790~810mm can be adjusted

Belt 4900*730mm

Condition: New

Place of Origin: Shenzhen, China (Mainland)

Brand Name: Tamprinter

Application Scope:

machine for printing plastic sheet (polycarbonate, ABS, PET, PS), paper sheet, package ,nameplate ,colorful glittering glass ,Light Guide Plate , lens ,Membrane switch,EL panels printing etc.

Automatic Grade: Semi Automatic

Color & Page: Single Color

Warranty: screen printer 18 months, uv machine 18months

After-sales Service Provided: Engineers available to service machinery overseas

Packaging: plywood

Delivery Detail: 20 workdays after payment

Performance & Features

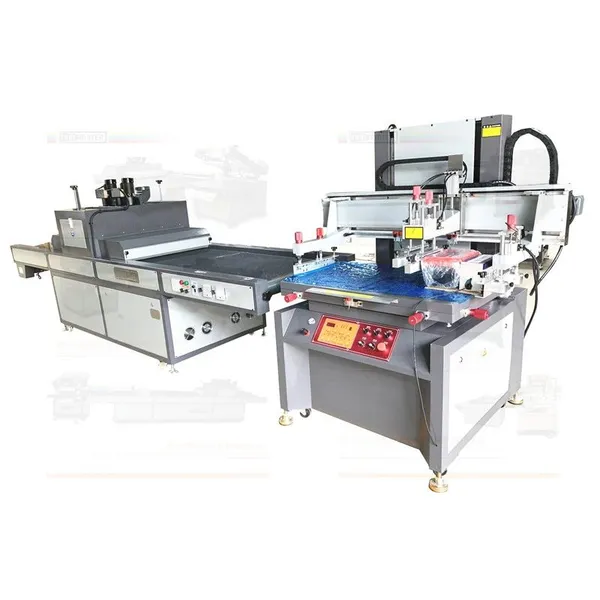

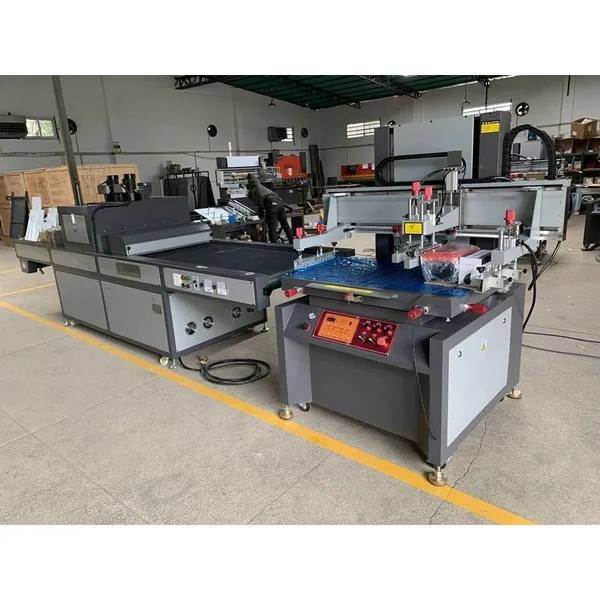

1. This line is composed of vertical screen printer(Up-Down, Left-Right, Electric; squeegee and ink return scraper pneumatic), Traditional mercury lamp UV tunnel dryer.
2. It is a semi automatic production line which upload and download manual.

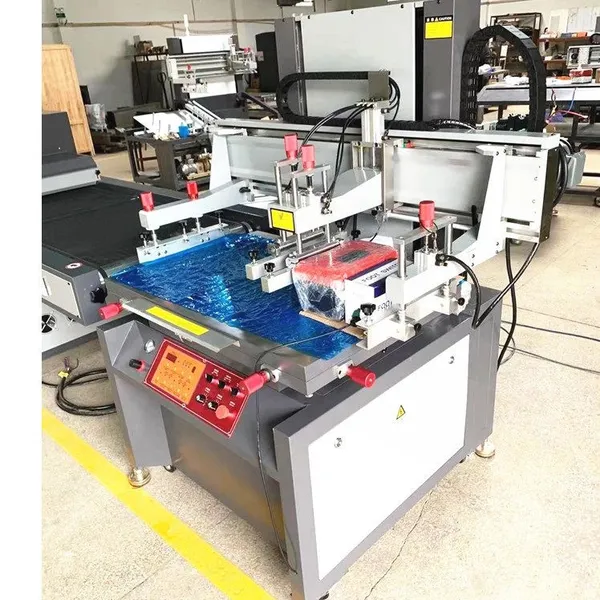

2.1 screen printing machine Features:
2.1.1.Printing transmission is driven by the electric motor, synchronous belt drive.
2.1.2.Action sensitive, speed can be adjusted. Machine up and down is driven by the electric motor, frequency control. Smooth operation.
2.1.3.Scraper and scraping blade have a air pressure governor, the thickness of the printing can be adjusted.
2.1.4.Vacuum adsorption worktable.
2.1.5.The working table has a vernier regulation system (can move left and right, forward and backward)that makes registration more correctly and simply.
2.1.6.With security devices to make the head printing stop on the upper position that is more reliable and safer.
2.1.7.The electronic control unit(ECU) is central control by the microcomputer, the operation of complete appliance is simpler and more flexible, easy to maintain

if buy kit machine suitable for LCD sealing side requiring small temperature, film printing and so on. pls choose led uv ink.

2.2. UV LED advantages
2.2.1, long life: life is a traditional mercury lamp of type of curing machine more than 10 times, about 25000-30000 hours.
2.2.2, cold light source, no radiation, according to the product surface of low temperature, heat damage to solve the long existing in optical communication, LCD production problems.
2.2.3, calorific value is small, can solve the great calorific value of mercury lamp spray equipment and personnel intolerable.
2.2.4, instant light, do not need to preheat immediately reached 100% uv output power.
2.2.5, life is not affected by the number of open and close.
2.2.6, high energy, light output stability, uniform irradiation effect is good, improve production efficiency.
2.2.7, can be customized effective radiation area, from 20 mm to 1000 mm in length.
2.2.8, do not contain mercury, also won't produce ozone, replacement of traditional light source technology is a safer, more environmentally friendly option.
2.2.9, low energy consumption, power consumption is only 10% of the traditional mercury lamp type curing press, can save 90% energy.
2.2.10, maintenance cost is almost zero, use UVLED curing equipment to save at least 10000 yuan a year/material fee.

3.1

The matching method of the suit screen printing machine is ever-changing. According to different inks, different printing and drying needs, some products require long wrinkle snowflake effect uv tunnels and infrared tunnel furnaces.

Please refer to our brochure for details

 Tamprinter Printing Machinery, one of the largest automatic membrane switch screen printing set manufacturers and suppliers in China , is one of the most famous brands in the world printing industrial. professional Equipment factory, we can offer you TAM-Z3 semi automatic membrane switch screen printing set with high precision and reliable performance. Welcome to buy our quality equipment made in China and experience our customized service.

Hot Tags::Thin sheet printing machine

FAQ(Frequently Asked Questions)

Q1,How can I determine how long a tunnel furnace is needed for our products?

A1: This is the drying process required by the ink effect, including temperature, energy, time and other factors. You need to consult your ink supplier. It is best to provide your samples to us for analysis, and we can also recommend suitable ink suppliers.

Q2:What is the price of the screen printing machine production line?

A2:There are many factors that affect the quotation, we must first understand your needs. Only then can we recommend and accurately quote the machine that suits your product work needs.
Customers who directly ask the price and refuse to discuss technical details must be agents who are professionally engaged in price wars. If the wrong equipment is bought, it is risky for the end user.

What material is your product? shape? photo?
length? width? height?
weight?
logo size? Printing accuracy? Several colors? Where is it printed? Are there any engineering drawings?
Daily output requirements? Equipment investment budget?
What kind of chat software do you use? When is it appropriate for us to chat online?
have you been to China? Do you have any import experience?
Is it a middleman or an end user?
Do you need other auxiliary equipment and consumables?
How many do you want? more order more discount
Packaging requirements?
Where is the goods delivered?
Which payment method is more convenient for you?
