Seawater proof network cable plus power cable Underwater 8-core shielded signal cable 2 power supply zero buoyancy watertight cable
Application range of sea water proof network cable and power cable:
Anti-seawater cable and power line is suitable for use in rivers, lakes and oceans and various wetlands and wet areas in complex environments, shallow water areas and deep water environments, different water environments and different water depths, the requirements for cables are not the same, the deeper the depth of the cable requirements are higher.
Sea water proof network cable and power line Product features:
Waterproof, oil proof, cold proof, corrosion proof, UV proof, flame retardant, bending resistance, bending resistance, seawater corrosion resistance, seawater pressure resistance, tensile resistance, aging resistance, UV proof, suitable for underwater mobile installation.

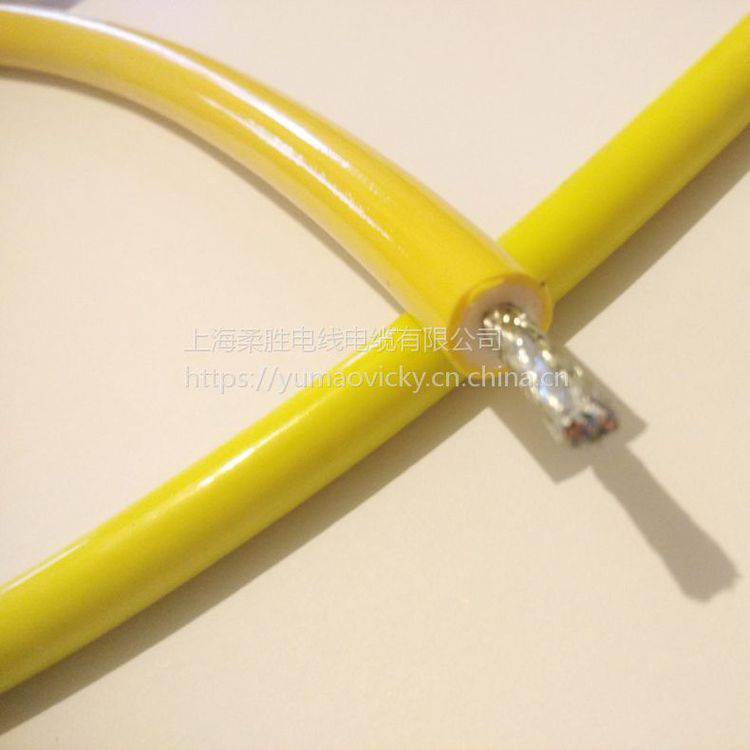

Seawater proof network cable and power cable structure:
Conductor: multi-strand ultrafine stranded oxygen-free copper wire, in line with VDE0295CLASS 6 standard
Insulation: Special Acrylic PVC blend or TPE(optional)
Color: ≤0.5mm Color: brown, black, blue, purple, pink, orange; ≥0.5mm Color indicates: black number white number number, more than 3 cores with yellow-green ground cable (yellow-green optional)
Shielding: tinned copper wire textile shielding, density: 85% or more
Jacket: polyurethane (PUR) Color: black, gray, orange
Rated voltage: cross section
Test voltage: 2500V
Seawater proof network cable plus power cable Operating temperature range:
Fixed installation -50℃ to +105℃
Mobile installation: -30℃ to +90℃
Bending radius of seawater proof cable and power line:
Fixed installation: 5 x cable diameter (D)
Mobile installation: when the travel is less than 10 meters, the bending radius is 7.5×d; When the stroke is ≥10 meters, the bending radius is 10×D
Seawater proof network cable plus power cable Underwater 8-core shielded signal cable 2 power supply zero buoyancy watertight cable
