Nickel Fiber Felt for Electrolyzer GDL
- 100000 Piece / Pieces per Month
- Shanghai or Tianjin
- T/T L/C D/P D/A Credit Card PayPal Cash Escrow
Product Details
Brand Name: | TOPTITECH | Place of Origin: | China | Certification: | ISO 9001 |
After-sales Service Provided: | No overseas service provided | Condition: | New | Usage: | Hydrogen |
Production Rate: | 99.99 |
Product Description

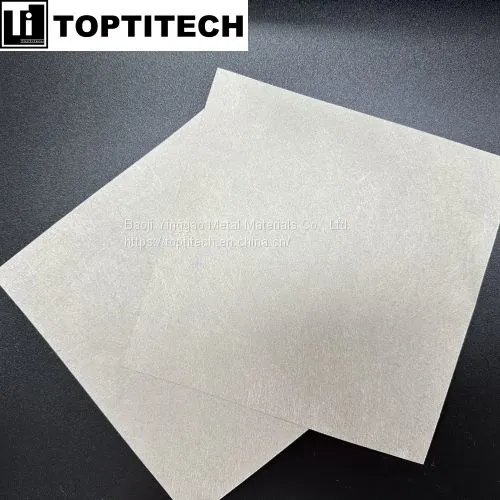

Nickel Fiber Felt for Electrolyzer GDL
Nickel fiber felt is a porous non-woven material composed of entangled nickel fibers.Through an advanced thermal process, nickel filaments only several microns in width are produced and then expertly tangled into a non-woven mat using specialized needle-punching techniques. This results in a staggeringly open material with over 90% of its volume consisting of permeable pores. Despite its delicate nature, nickel fiber felt achieves surface areas as high as 20 square meters in just one gram, offering vast regions for catalytic transformations.They feature a significant flow rate, a very high porosity, and a long service life.
Parameters:
Material: nickel fiber
Micron rating: 3-100um
Fiber diameter: 5-10 μm
Porosity: 50-90%
Thickness: 0.25-5 mm (can be customized)
Density: 0.1-0.3 g/cm3
Features
High Temperature Resistance: Nickel fiber felt is suitable for use in high-temperature situations because it can tolerate extremely high temperatures. It has a melting point of approximately 1,455°C (2,651°F).
Corrosion Resistance: This material exhibits excellent resistance to corrosion and oxidation, making it ideal for use in harsh chemical environments.
High Porosity: Nickel fiber felt has a high porosity, allowing for efficient gas and liquid flow. It offers excellent permeability and filtration properties.
Electrical Conductivity: Due to its metallic nature, nickel fiber felt is electrically conductive, enabling its use in applications that require conductivity.
Applications
Fuel cells:
Nickel fiber felt plays a significant role in fuel cells. It is utilized as an electrode material in hydrogen-oxygen fuel cells, such as alkaline fuel cells and solid oxide fuel cells, to facilitate efficient electrochemical reaction interfaces.
Filtration and separation:
With its high porosity and filtration performance, nickel fiber felt finds applications in filtration and separation processes. It is used in gas and liquid filtration systems to remove particles, pollutants, microorganisms, and other contaminants.
Battery technology:
Nickel fiber felt is widely used as a vital component in battery systems such as lithium-ion batteries, nickel-metal hydride batteries, and lithium-air batteries. It serves as an electrode material, providing excellent conductivity and high specific surface area to enhance battery performance and cycle life.
Catalyst support material:
Due to its high specific surface area and porosity, nickel fiber felt is an ideal support material for catalysts. It is utilized as a catalyst carrier in gas and liquid phase catalytic reactions, including catalytic synthesis, hydrogenation, oxidation, and more.
High-temperature insulation:
Nickel fiber felt's excellent heat resistance makes it suitable for high-temperature insulation applications. It can be employed in furnaces, exhaust systems, aerospace applications, and other high-temperature environments to provide superior thermal insulation and insulation properties.
Electromagnetic shielding:
Due to its excellent electrical conductivity, nickel fiber felt is used in electromagnetic shielding applications. It can be employed to fabricate electromagnetic shielding materials, blocking or reducing electromagnetic radiation interference on electronic devices.
