Four-core video signal cable Underwater instrument control special cable ROV zero buoyancy line 2/4/6/8/10 core

Four-core video signal cable Underwater instrument control special cable ROV zero buoyancy line 2/4/6/8/10 core

ROV Zero buoyancy cable Description:

Four-core video signal cable is composed of two teams of twisted pair wire combination, twisted pair transmission video cable signal, shielding form can be selected, the general shielding by aluminum foil and tinned copper braided double shielding, cable anti-signal interference ability, the power line and signal line to do together, reduce the need for additional laying of the power supply trouble, make the cable design more convenient, more convenient wiring. Compared with conventional underwater anti-seawater cables, zero-buoyancy cables not only need to have the waterproof performance of conventional anti-seawater cables, but also have high requirements for cables under water, requiring the specific gravity of the cable under water and the same proportion of water, so that the weight of the cable under water is zero, which greatly reduces the additional work burden of underwater instruments and equipment, and is an ideal underwater application wire.

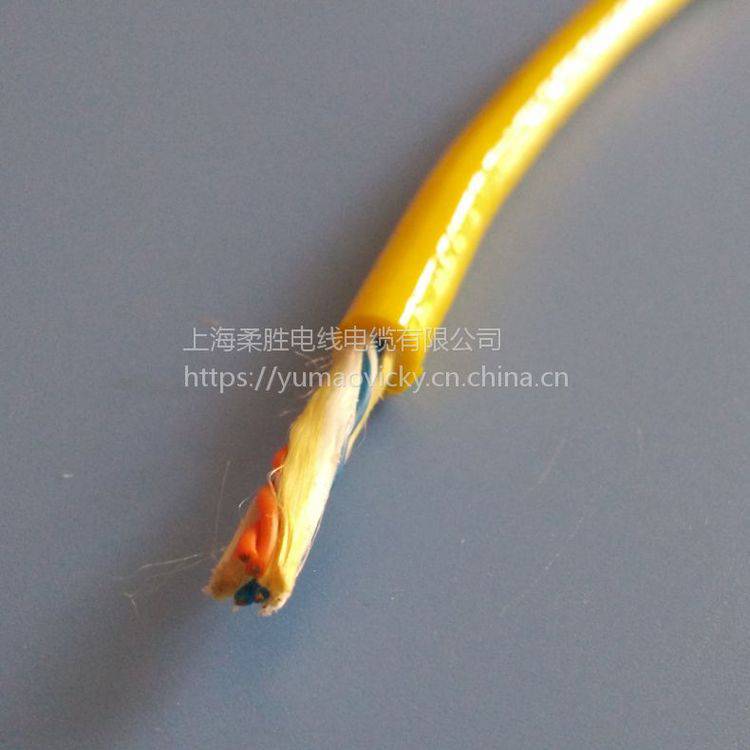

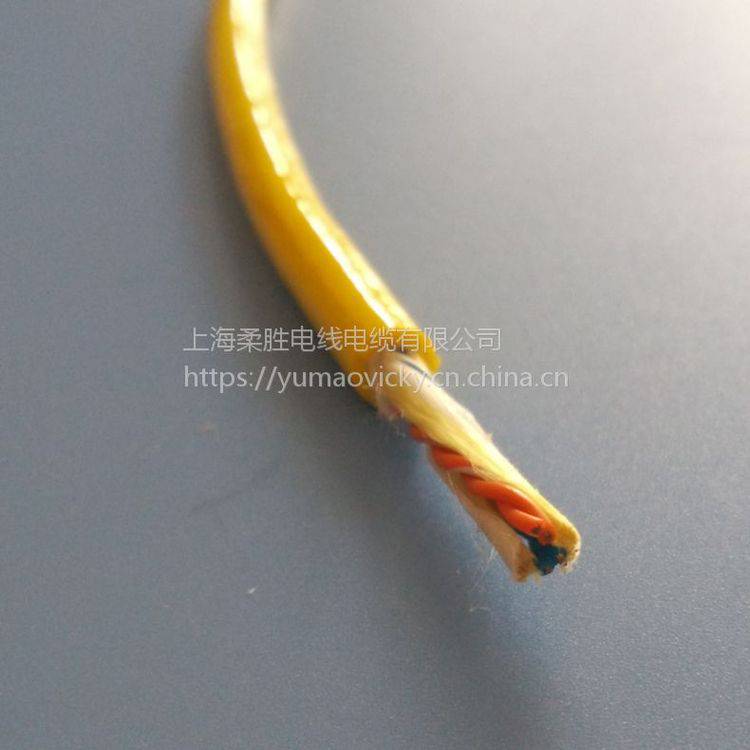

ROV Zero buoyancy cable structure:

Conductor: multi-strand ultrafine stranded oxygen-free copper wire

Conductor type: bare copper wire

Insulation: Special Acrylic PVC blend or TPE(optional)

Color: Power cable black and red, twisted pair color divided by different colors

Shielding: tinned copper wire textile shielding

Density: more than 85%

Sheath: Polyurethane (PUR)

Color: Yellow, other colors such as black, gray, orange optional

Rated voltage: 300/300V

Test voltage: 2500V

ROV Zero buoyancy line application range:

ROV zero buoyancy line is suitable for rivers, lakes and waves as well as a variety of complex Marine surface and underwater environments, such as underwater exploration robots, submersible motors, submersibles, offshore oil exploration platforms, Marine fishery resources protection and development, Marine ecological environment detection and protection and governance

ROV Zero Buoyancy line Product features:

Anti-seawater, anti-oil, cold resistance, anti-corrosion, anti-UV, flame retardant, long bending life

Suitable for back-and-forth installation.

ROV Zero buoyancy line operating temperature range:

Fixed installation -30℃ to +85℃

Mobile installation: -20℃ to +85℃

ROV zero buoyancy line bending radius:

Fixed installation: 5 x cable diameter (D)

Mobile installation: when the travel is less than 10 meters, the bending radius is 7.5×d; When the stroke is ≥10 meters, the bending radius is 10×D
