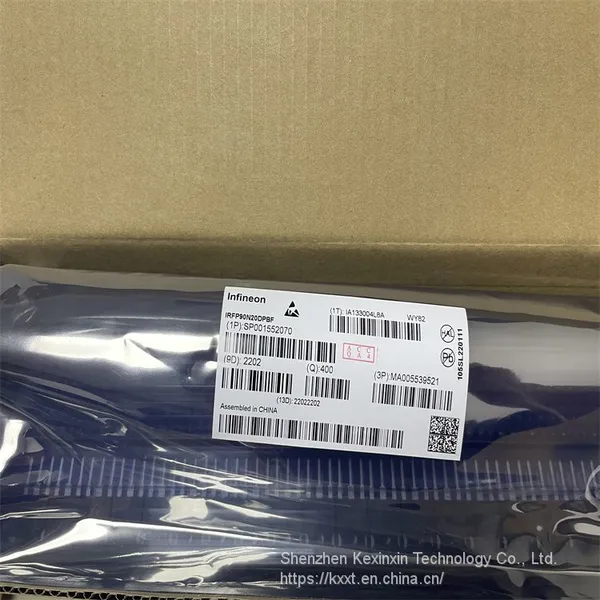

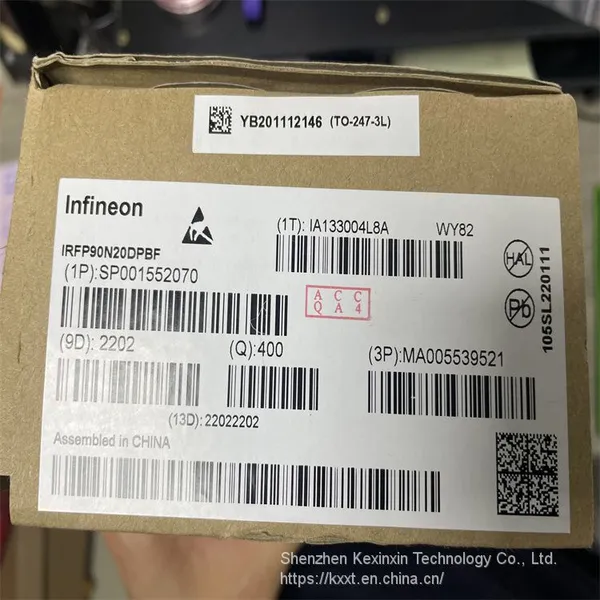

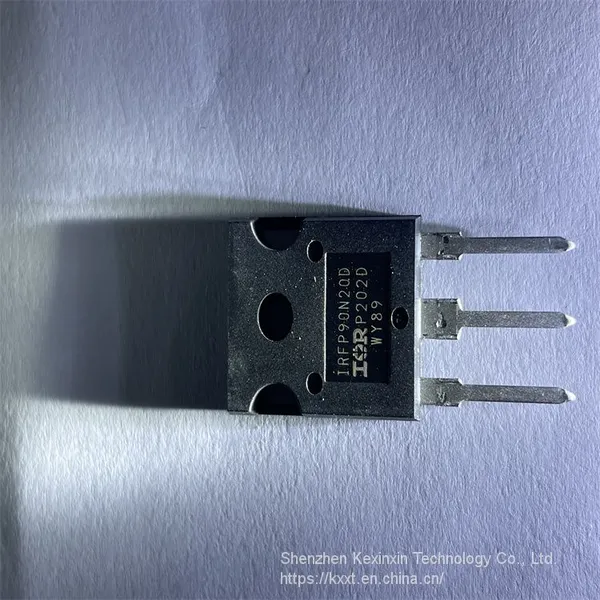

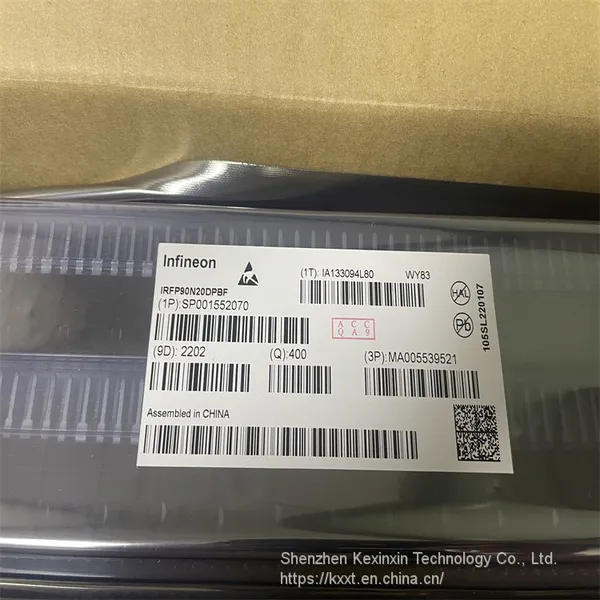

Help CenterIRFP90N20DPBF Infineon Technologies MOSFET MOSFT 200V 94A 23mOhm 180nCAC
Related Products
-
IRFP460 IXYS MOSFET 500V 20AUS$ 1 - 7MOQ: 1 Piece -
IRFP460APBF Vishay Semiconductors MOSFET 500V N-CH HEXFETUS$ 1 - 4.5MOQ: 1 Piece
-
IRFP460BPBF Vishay Semiconductors MOSFET 500V 250mOhm@10V 20A N-Ch D-SRSUS$ 0.5 - 3MOQ: 1 Piece
-
IRFPG50PBF Vishay Semiconductors MOSFET 1000V N-CH HEXFETUS$ 0.7 - 5MOQ: 1 Piece
-
IRLML2803TRPBF Infineon Technologies MOSFET MOSFT 30V 1.2A 250mOhm 3.3nC LogLvlUS$ 0.02 - 0.35MOQ: 10 Pieces
Mfr. #:
IRFP90N20DPBF
Manufacturer: Infineon
Product Category: MOSFET
RoHS: Details
Technology: Si
Mounting Style: Through Hole
Package / Case: TO-247-3
Transistor Polarity: N-Channel
Number of Channels: 1 Channel
Vds - Drain-Source Breakdown Voltage: 200 V
Id - Continuous Drain Current: 94 A
Rds On - Drain-Source Resistance: 23 mOhms
Vgs - Gate-Source Voltage: - 30 V, + 30 V
Vgs th - Gate-Source Threshold Voltage: 1.8 V
Qg - Gate Charge: 180 nC
Minimum Operating Temperature: - 55 C
Maximum Operating Temperature: + 175 C
Pd - Power Dissipation: 580 W
Channel Mode: Enhancement
Packaging: Tube
Brand: Infineon Technologies
Configuration: Single
Fall Time: 79 ns
Forward Transconductance - Min: 39 S
Height: 20.7 mm
Length: 15.87 mm
Product Type: MOSFET
Rise Time: 160 ns
factory pack quantiy: 400
Subcategory: MOSFETs
Transistor Type: 1 N-Channel
Typical Turn-Off Delay Time: 43 ns
Typical Turn-On Delay Time: 23 ns
Width: 5.31 mm
Unit Weight: 0.211644 oz
