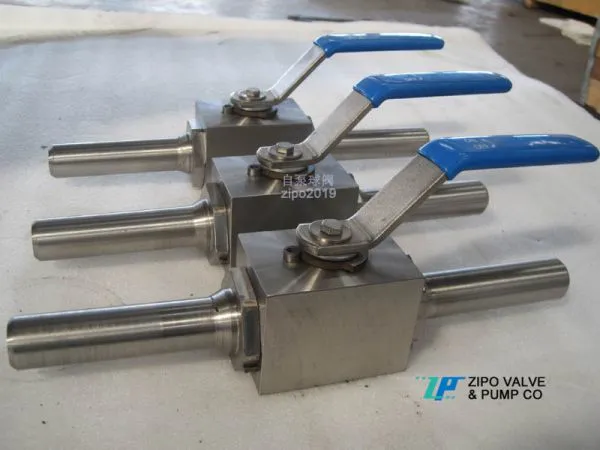

Stainless steel high pressure ball valve special for CNG natural gas station
Contact: Email: zipopvf@163.com Wechat: zipo2019; QQ: 2191417589; Mobile: 18081659672
Please inform us of the accurate nominal size, pressure class, medium, temperature, material, actuator and other parameters, before consulting or purchasing the product. Thanks!
The ball valve specially used for natural gas produced by our plant has simple structure, convenient operation, small fluid resistance, reliable sealing performance, and is mainly used in the main station of the gas filling station, It can be used for both ferrule and welded pipe (welding is recommended for small size and flange is recommended for DN50 and above). The compressed natural gas ball valve can be opened and closed for more than 10000 times under the condition of low temperature - 80 ℃ ~ + 120 ℃, and the sealing parts can be replaced to increase the service life and reduce the user cost.
Pressure range: 16MPa ~ 420MPa
Connection mode: thread, ferrule, welding, union, flange
Nominal diameter: DN5-DN15 DN20-DN250
Applicable temperature: CNG natural gas - 80 ℃ ~ + 120 ℃
Applicable media: LNG (- 196 ℃ ~ + 80 ℃), other mixed liquids, oil, water, gas and other non corrosive or corrosive media
Main materials: carbon steel, stainless steel, 1Cr18Ni9Ti, 304, 316, 316L
Product advantages: the valve body is made of forged steel, fully welded structure, which can eliminate casting defects and prevent any possible leakage, especially suitable for long-distance oil and gas pipeline
Common Model No: Q11F-16C, Q11F-40C，Q11F-64C，Q11F-100C，Q11F-150C，
Q11F-250C，Q11F-320C Q11F-420C，Q11F-16P, Q11F-40P，Q11F-64P，Q11F-100P，Q11F-150P，Q11F-250P，Q11F-320P, Q11F-420P., Q11F-1000PSI, Q11FI-2000PSI, Q11F-3000PSI, Q11F-6000PSI
Q21N-64P，Q21N-100P，Q21N-150P，Q21N-250P，Q21N-320P, Q21N-420P.,
Manufacturer: ZIPO VALVE & PUMP CO., LTD
