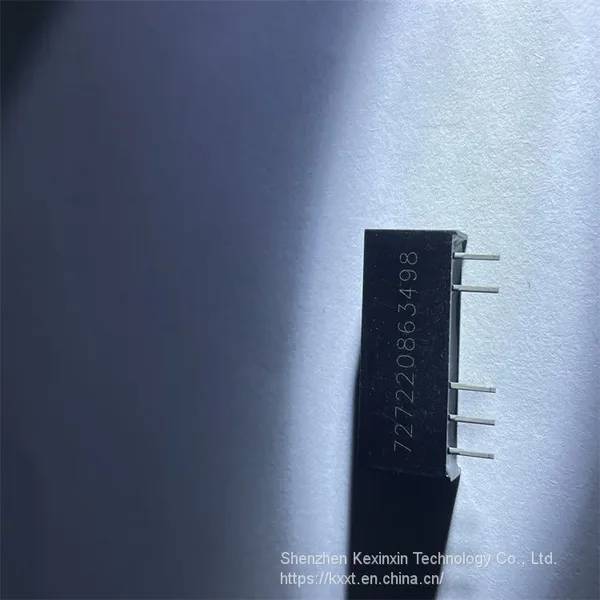

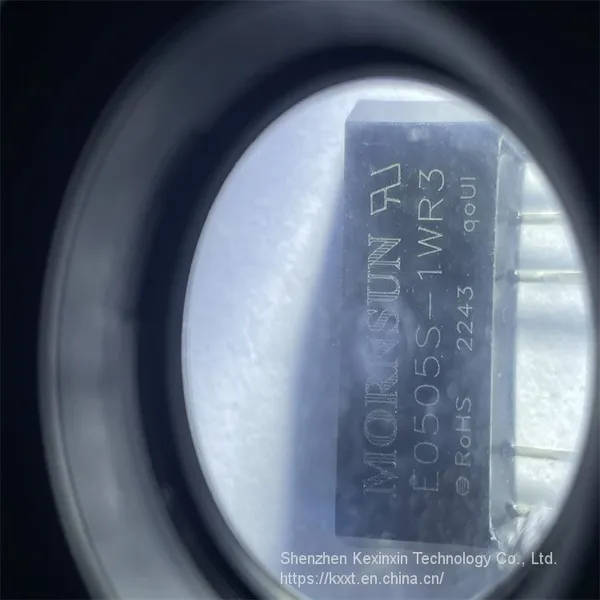

E0505S-1WR3 Mornsun SIP
DC/DC module power supply
E05_ S-1WR3&F05_ S-1WR3 series
1W, constant voltage input, isolated non regulated positive and negative dual/single output
Product Features
Sustainable short-circuit protection
The no-load input current is as low as 5mA
Working temperature range: -40 ℃ to+105 ℃
Efficiency up to 85%
Isolation voltage 3000VDC
International standard pin method
SIP encapsulation
Meets UL62368, EN62368 certification (under certification)
05_ S-1WR3&F05_ The S-1WR3 series products are specifically designed for applications in distributed power systems on circuit boards that require the generation of a set (two sets) of power supplies isolated from the input power supply
And designed. This product is suitable for: pure digital circuits, general low-frequency analog circuits, relay drive circuits, data exchange circuits, etc
Note:
1. For packaging information, please refer to the "Product Shipping Packaging Information", packaging package number: 58200001;
2. If the product operates below the minimum required load, it cannot be guaranteed that the product performance meets all performance indicators in this manual;
3. The maximum capacitive load is tested within the input voltage range and under full load conditions;
4. Unless otherwise specified, all indicators in this manual are measured at Ta=25 ℃, humidity<75% RH, nominal input voltage, and output rated load;
5. All indicator testing methods in this manual are based on our company's corporate standards;
6. Our company can provide product customization, and you can directly contact our technical personnel for specific situations;
7. Product specifications are subject to change without prior notice
