Water turbine pump is an environmentally friendly and energy-saving water lifting tool, which is a combination of water turbine and water pump. It utilizes rich hydraulic resources to lift water or drive a generator to generate electricity, without consuming oil or electricity. As long as there is a certain drop and a certain flow rate, this product can be installed and used at stations.
Our company's main products include 29 models our brand water turbine pumps and 30 models of D-series updated water turbine pumps. D40-4 and D40-6 water turbine pumps are excellent products in Fujian Province, D120-3 water turbine pumps have won the third prize of Fujian Province's Science and Technology Progress Award, and the "Technical Conditions of Water Turbine Pumps" have won the second prize of the former National Machinery Industry Commission's Science and Technology Progress Award. The performance indicators of the D series hydraulic pump products have reached the advanced level at home and abroad. The Lanbo brand water turbine pump products comply with the national standard GB/T64900-2008 "Water Turbine Pumps" and the industry standards JB/T9780-1999 "Technical Conditions for Water Turbine Pumps" and JB/T5118-1999 "Quality Classification of Water Turbine Pump Products". The Lambo brand hydraulic pumps are exported to countries such as Russia, Thailand, Malaysia, Pakistan, Vietnam, the Philippines, Nepal, Indonesia, Sri Lanka, Bangladesh, etc. Domestic sales are spread throughout major provinces and regions across the country, and are highly favored by domestic and foreign users.
Our company also produces ZD760 series axial flow water turbine products and ZD560 series axial flow water turbine products, as well as mixed flow, inclined turbine, impulse turbine and other water turbine products. At the same time, we also produce the ZDT03 series of improved low head, large flow, and high efficiency axial flow water turbine products. In addition, our company also produces pump stations and supporting equipment for power stations, including pressure cast iron pipes, pressure steel plate coils, butterfly valves, flat gates, radial gates, fixed trash racks, mobile trash racks, steel draft pipes, speed regulators, hoists, and other products. And undertake the processing of various mechanical accessories. Our company has over 50 years of experience in producing hydraulic machinery products and has strong technical capabilities. We can provide on-site assistance to customers in the selection and design of pump stations and power stations, provide technical guidance for unit installation and testing, and supply maintenance spare parts year-round. We trust our customers with high-quality products, excellent services, and reasonable prices. We welcome new and old customers both domestically and internationally to patronize us.

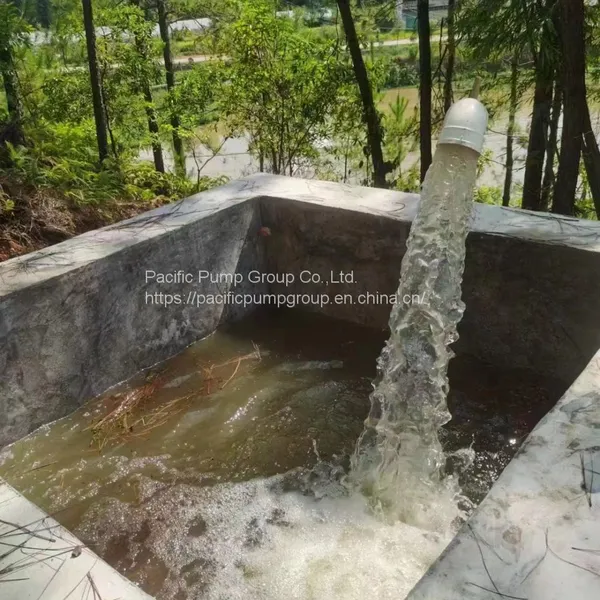

water turbine pump is a water lifting machine composed of a water turbine and a water pump in a certain way. The water flow with a certain amount of energy drives the turbine runner to rotate, thereby driving the water pump impeller to move. Under the action of the impeller, the water is lifted to a high place. Water turbine pumps can be installed and used in places with a certain flow rate and drop.

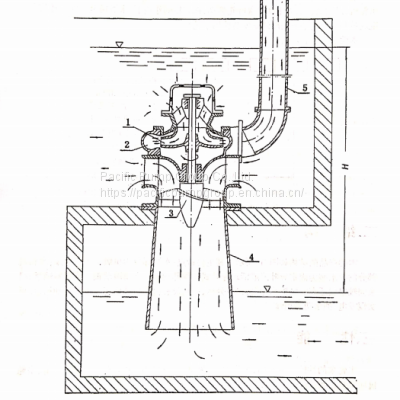

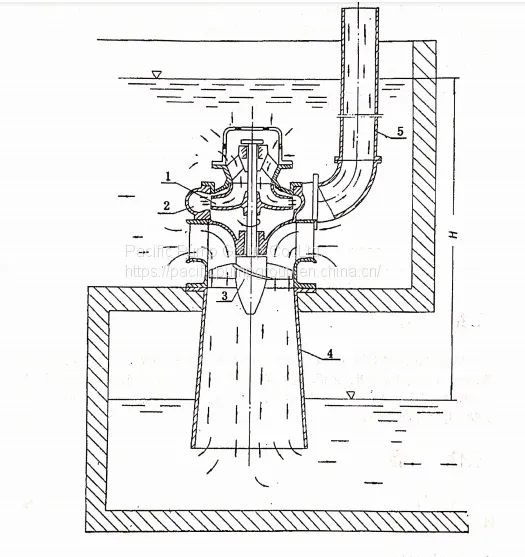

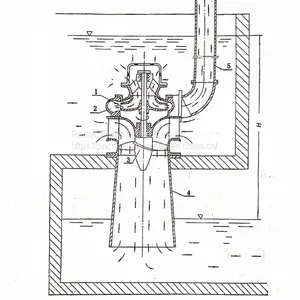

The structure of this type of product is shown in Figure 1. Its main characteristics: the water pump part is a single stage pump or a multi-stage pump; The guide seat of the hydraulic turbine is of fixed or movable guide vane type; The top bearing is a metal rolling bearing or a plastic bearing; There are also coaxial and non coaxial water turbine pumps in the machine pump central connection: the machine pump is separated, and there is a gear transmission speed increase or a belt transmission speed increase in the middle, which can achieve two purposes: power generation and water pumping
The performance parameters of a water turbine pump include: head H, flow rate Q, head h, outlet flow rate q, efficiency n, turbine power Pt, and rotational speed nt (as shown in Figure 2)

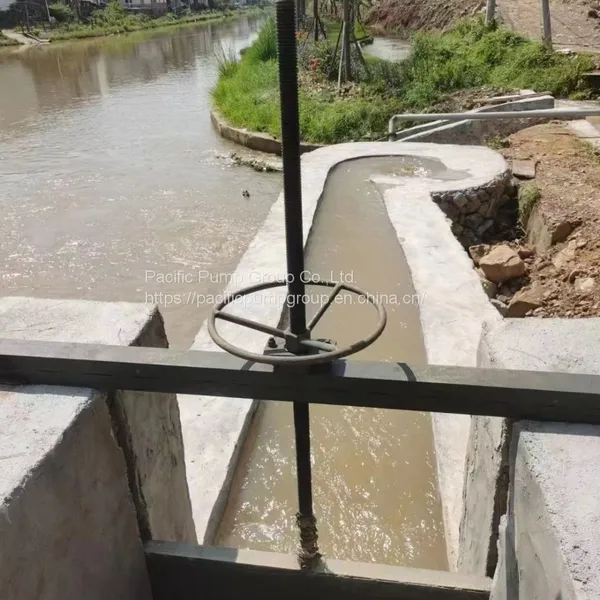

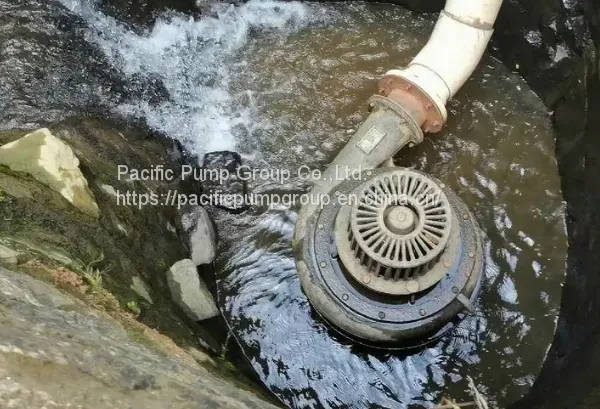

Water turbine pumps are similar to general small axial flow turbines and require the construction of hydraulic facilities such as diversion channels, sewage interceptors, gates, turbine pits, draft tubes, and tailrace channels that are suitable for the unit, based on the terrain conditions of the station. However, the installation method of hydraulic pumps is different from that of general small axial flow turbines. This manual introduces that hydraulic pumps can not only be installed vertically or horizontally, but also can be installed in parallel or parallel with multiple hydraulic pumps to increase the lifting height of the pump structure or increase its outlet flow rate
6, Warranty Period:
1) Please operate according to pump product description. If you have any questions of pumps, kindly contact us, we will offer you the most professional and the best service.
2) We guarantee our products for a period of ONE YEAR from date of dispatch from our
factory (The warranty doens't apply to wearing parts).
