1, Technical Parameter:
Flow: 3.1 - 400 m³ /h
Head: 2.6 - 300 m
Speed: 1450/2900 r/min
Power: 0.55 - 160kw
Working temperaturer: ≤ 80ºC
2, Featurer:
@ The international most advanced level making
@ Of simple structure
@ Performance is reliable
@ Small in size
@ Light
@ Anticorrosive and of good performance
@ The electricity dawdles low
@ It is convenient to install and debug

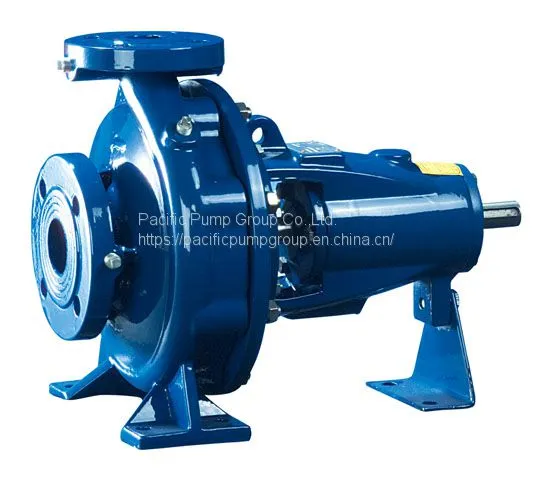

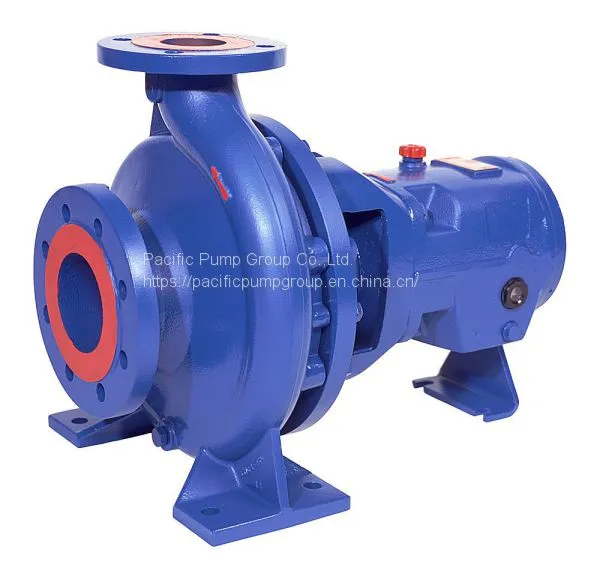

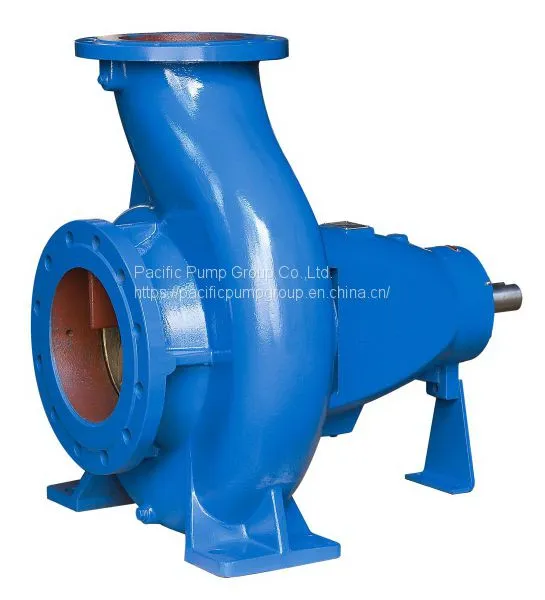

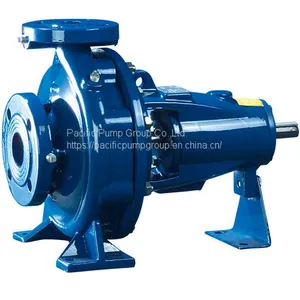

3, Brief introduction of the product
IS type series single stage single suction horizontal centrifugal pump is used to transport clear water or chemical/physical property liquid that is similar to clear water? It is widely used in industry, agriculture and city, drain off water, fire control etc.
IS type pump is designed under international standard ISO2858, which is one of the popular energy-saving products in China.
IS type pump has more than 140 specifications, with only 4 kinds of shaft. So the shaft, bearing, seal and other components can be changed among the same specification.
4, Data table
|
Model inlet-outlet-impeller |
capacity | head | power | effeciency |
| (mm)(mm)(mm) | (m3/h) | (m) | (kW) | (%) |
| 50-32-125 | 12.5 | 20 | 2.2 | 60 |
| 50-32-125 | 6.3 | 5 | 0.55 | 54 |
| 50-32-160 | 12.5 | 32 | 3 | 54 |
| 50-32-160 | 6.3 | 8 | 0.55 | 48 |
| 50-32-200 | 12.5 | 50 | 5.5 | 48 |
| 50-32-200 | 6.3 | 12.5 | 0.75 | 42 |
| 50-32-250 | 12.5 | 80 | 11 | 38 |
| 50-32-250 | 6.3 | 20 | 1.5 | 32 |
| 65-50-125 | 25 | 20 | 3 | 69 |
| 65-50-125 | 12.5 | 50 | 0.55 | 64 |
| 65-50-160 | 25 | 32 | 0.5 | 65 |
| 65-50-160 | 12.5 | 5 | 0.75 | 60 |
| 65-40-200 | 25 | 50 | 7.5 | 60 |
| 65-40-200 | 12.5 | 12.5 | 1.1 | 55 |
| 65-40-250 | 25 | 80 | 15 | 50 |
| 65-40-250 | 12.5 | 20 | 2.2 | 46 |
| 80-65-125 | 50 | 20 | 5.5 | 75 |
| 80-65-125 | 25 | 5 | 0.75 | 71 |
| 80-65-160 | 50 | 32 | 7.5 | 73 |
| 80-65-160 | 25 | 8 | 1.5 | 69 |
| 8050-200 | 50 | 50 | 15 | 69 |
| 80-50-200 | 25 | 12.5 | 2.2 | 65 |
| 80-50-250 | 50 | 80 | 22 | 63 |
| 80-50-250 | 25 | 20 | 3 | 60 |
| 80-50-315 | 50 | 125 | 37 | 54 |
| 80-50-315 | 25 | 32 | 5.5 | 52 |
| 100-80-125 | 100 | 20 | 11 | 78 |
| 100-80-125 | 50 | 5 | 1.5 | 75 |
| 100-80-160 | 100 | 32 | 15 | 78 |
| 100-80-160 | 50 | 8 | 2.2 | 75 |
| 100-65-200 | 100 | 50 | 22 | 76 |
| 100-65-200 | 50 | 12.5 | 4 | 73 |
| 100-65-250 | 100 | 80 | 37 | 72 |
| 100-65-250 | 50 | 20 | 5.5 | 69 |
| 100-65-315 | 100 | 125 | 75 | 66 |
| 100-65-315 | 50 | 32 | 11 | 63 |
| 125-100-200 | 200 | 50 | 45 | 81 |
| 125-100-200 | 100 | 12.5 | 7.5 | 76 |
| 125-100-250 | 200 | 80 | 75 | 78 |
| 125-100-250 | 100 | 20 | 11 | 76 |
| 125-100-315 | 100 | 32 | 15 | 73 |
| 125-100-400 | 100 | 50 | 30 | 65 |
| 150-125-250 | 200 | 20 | 18.5 | 81 |
| 150-125-315 | 200 | 32 | 30 | 79 |
| 200-150-250 | 400 | 20 | 37 | 79 |
| 200-150-315 | 400 | 32 | 45 | 79 |
| 200-150-400 | 400 | 50 | 75 |
77 |
5, Structural Diagram
6, Warranty Period:
1) Please operate according to pump product description. If you have any questions of pumps, kindly contact us, we will offer you the most professional and the best service.
2) We guarantee our products for a period of ONE YEAR from date of dispatch from our
factory (The warranty doens't apply to wearing parts).
