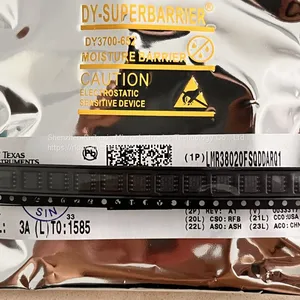

Help CenterLMR38020FSQDDARQ1
Related Products
Complies with AEC-Q100 standards for automotive applications
Temperature class 1: -40 ° C to+125 ° C, T A
Functional Safety
Documents available for functional safety system design
Specially designed for harsh automotive applications
4.2V to 80V input voltage range
2A continuous output current
40 µ A ultra-low static working current
The distance between VIN and GND pins is greater than 1.5mm
Adjustable switch frequency range from 200kHz to 2.2MHz
Synchronize with external clock frequency
Spreading frequency can reduce EMI
97% maximum duty cycle
Support for startup with pre biased output
± 1.0% tolerance voltage reference at room temperature
Precision enabling end
The device is easy to use and has an integrated compensation network, which can achieve a smaller number of BOMs
Integrated synchronous rectification
Adopting PowerPad ™ 8-pin HSOIC for integrated circuit packaging
PFM and Forced PWM (FPWM) options
Provide version 1A LMR38010-Q1
Send Inquiry to This Supplier
