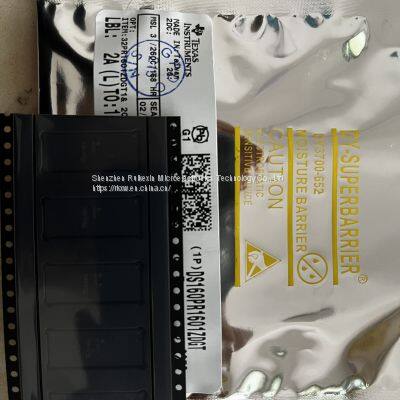

DS160PR1601ZDGT

16 channel linear adapter driver supporting PCIe 4.0 and UPI 2.0

Supports data rates up to 16Gbps

Compatible with Intel Retimer Universal Packaging Pin to Pin

There are 64 integrated AC coupling capacitors on the TX pins inside the package, which can save board space

CTLE improves by 16dB at 8GHz

Simulate EyeScan to help transfer drivers for tuning, debugging, and remote monitoring

Ultra low latency of 130 ps

100 fs low additional random jitter of PRBS data

Ultra low RX/TX return loss of − 13dB at 8GHz

3.3V single power supply

160mW/channel low active power

I2C/SMBus or EEPROM programming

Automatic receiver detection for PCIe use cases

Seamless support for PCIe link training

The internal voltage regulator has the ability to resist power noise

High speed mass production testing ensures manufacturing reliability

Supports bus widths of x4, x8, and x16

8.90mm ×  22.80mm BGA package
