Waterproof Electronic Box Fabricating Machine for stainless steel electrical box, electrical panel enclosure, metal wall box, electric meter box cabinet, meter box cabinet fabricating.
sales@superdamachine.com
1, Electrical panel enclosure production line technical parameters
| No. | ITEM | PARAMETER | REMARK | |
| 1 | MATERIAL | Type | Cold-rolled strip steel, galvanized sheet | |
| T.(mm) | 0.8-1.5mm | |||
| Yield Strength (Mpa) | Q235 | |||
| 2 | Forming product Width | Customized | ||
| 3 | Forming speed (m/min) | 6-13m | Including hole | |
| 4 | Forming main power (KW) | 7.5 KW | FYR | |
| 5 | Hydraulic power (KW) | 18.5 KW | FYR | |
| 6 | Bending power (KW) | 3 KW | FYR | |
| 7 | Voltage | AC380V，50Hz，3P | ||

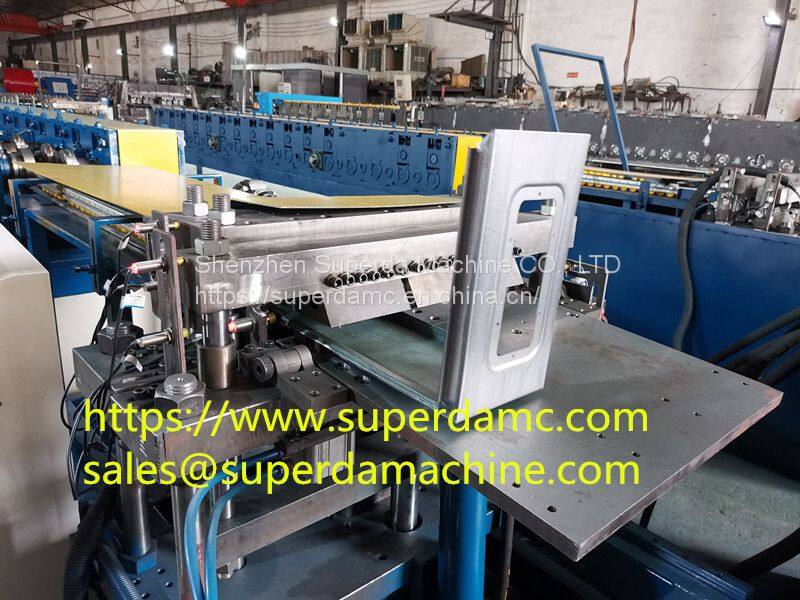

Stainless steel & Mild steel enclosure production line process
Uncoiler →Straightening→servo feeder→Hydraulic press breach device → Guide device → roll forming machine → hydraulic punch → Bending enclosure (optional)→shear device (including knife)→ finished product rack
Metal wall box roll Forming machine list

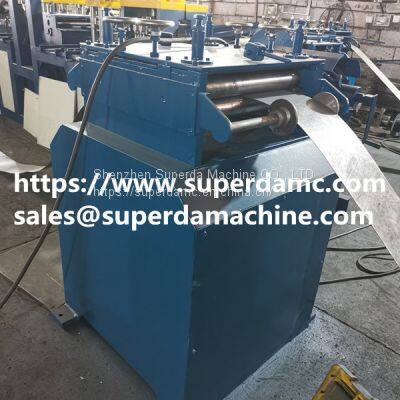

Uncoiler, Straightener
1,Type Manual Expansion
2,Parameter
1) Passive discharge
2) Coil weight：
3) Coil inner D.：φ450mm-φ530mm
4) Max. Width.400mm
5) Thickness .0.4-1.6mm
6) Straightener roller :9 pcs
8) Power.1.5kw
Servo Feeder
3.1 Max. feeding width 400mm
3.2 Feeding thickess 0.4-1.6mm
3.3 Motor , 1.3ＫＷ(Yaskawa)
Hydraulic hole punching system
3.1 Function：Hydraulic punch breach (Mould 1 set)
3.2 Structure: set the length, automatic length measurement, automatic positioning reaches the set distance stop action , hydraulic cylinder driven punching die, stamping automatic shutdown.
3.3 Hydraulic system working pressure：16MPa
3.4 Hydraulic station：18.5KW（ Hydraulic punch hole/shear use same station）
A. Hydraulic punch for the panel gap.
B. Hydraulic punch for the knock down hole
C. Hydraulic punch for the ventilating hole.
Guide device
Main Forming machines (enclosure panel width adjustable)
5.1 Forming Roller：16 stations，and add Rub-roll, To make sure the surface profile no scratches.
5.2 Side Panel：T.18mm ,A3 steel Heavy duty 。
5.3 Rolling speeding: 6-12 m/min。
5.4 Roller material：GCr15，overall quenching, hardness HRC56-62 ℃.
5.5 Motor power：7.5KW。
5.6 Main Roller ：Dia.75mm，45 #。
5.7 Equipment base: 45 # H type using welded steel plate.
5.8 Transmission: chain drive.
5.9 Security: across the board with emergency stop buttons, easy to handle emergencies, to ensure that equipment and operator safety. And other gear in the chain and the staff could easily lead to injury transmission section covered with protective cover, to ensure the safety of workers.
