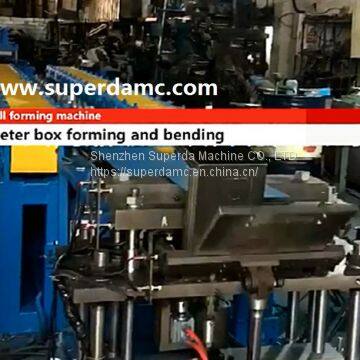

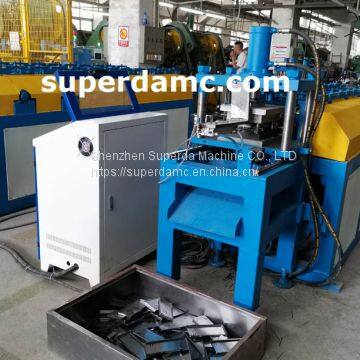

Superda Electrical Panel Board Making Machine

Electrical panel enclosure machine making dimension.

Push bottom box length is adjustable from 200-600mm, the width is 190mm, and the depth is 80mm. The actual cross-section of the product provided by the customer.

sales@superdamachine.com

1, Flush mount net work enclosure production line technical parameters

Flush mount wall enclosure production line process

Uncoiler →Straightening→servo feeder→Hydraulic press breach device  → Guide device → roll forming machine → hydraulic punch →shear device (including knife)→ finished product rack

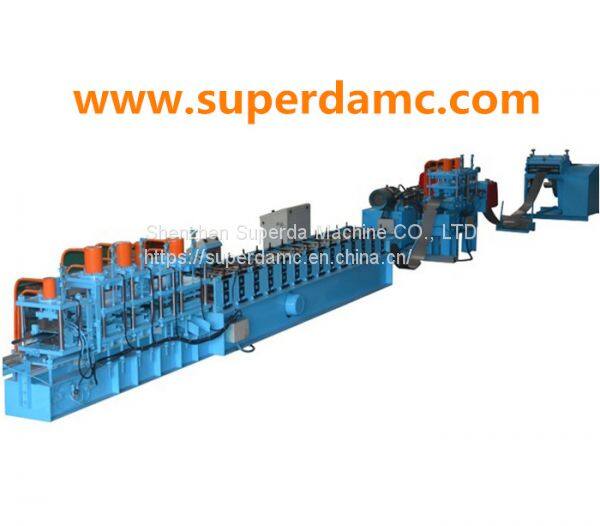

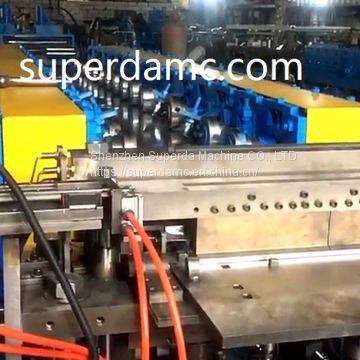

Steel flush mount enclosure roll Forming machine list

Explaination

This production line is equipment for production flush wall mount enclosure. The strip coil to be processed is manually placed on the uncoiler, and then corrected and tensioned. After leveling, it enters the hydraulic pre-punching and punching notch, and is sent to the forming machine by the guide device to form. Under the frictional damping action of the forming roller and pressure roller, after entering the shearing section at a linear speed of 0-10m, the product is cut off as required, and then manually packed away.

The main technical parameters

1.Details of accessory brand

2.Feeding specifications

a. Applicable materials: cold rolled coil, galvanized coil

b. Material quality: Domestic GB standard

c. Tensile strength: δb≤780Mpa (Max.)

d. Yield strength: δs≤510Mpa (Max.)

e. Material thickness: 0.5-0.7mm

f. Material width: 400mm (Max.)

g. Inner diameter of steel coil: Φ360mm-Φ510mm

h. Outside diameter of steel coil: Φ1250 （Max.）

i. Steel coil weight: 3 t (Max.)

3.Forming parameters

a. Number of forming staion: 16 sets of roller

b. Spindle specification: Ø48mm Ggr15 quenching and tempering

c. Roller material: Gr12 mold steel heat treatment

d. Integral archway: precision machined from 28mm steel plate, the hole distance error is less than 0.1mm

e. Base plate thickness: 20mm

4, forming ability

a. Outside diameter of coil: Φ1250mm (Max.)

b. Material forming thickness: 0.5-0.7mm

c. Product width 190

5.Speed parameters of forming unit

a. Linear speed, 0-10m / min

b. Acceleration time ＜ 30 seconds

6, Forming accuracy

a. Shear length tolerance: ≤ ± 0.5mm / m

b. Width tolerance: ≤ ± 0.5mm

c. Sickle curve: ≤2mm / m

d. Burr: ≤0.1mm (new blade cutting ordinary carbon steel plate with reasonable clearance)

e. Height tolerance: ≤ ± 0.5mm

The above tolerances are based on the first-grade steel coils with flat and edgeless waves.

7.Other equipment parameters

a. Power supply: 380V / 50HZ / 3PH (Or Custmized)

b. Installed capacity: about 25Kw

c. Forming speed: 0-10m / min

d. Cutting method: forming then cutting

e. Driving motor:

Straightener machine motor 2.2KW

Hydraulic punching and cutting 15kw,

Forming host motor 5.5KW

Servo motor 2KW

f. Floor area (approximately): length 24m × width 3m

(Roll Forming 7mX1.7m)

g. Production line direction: from left to right

(facing the unit from the operation table).

h. Equipment color: (Customer choice)

i. Unit equipment design can meet 12 hours of continuous production

j. Operating environment:

1: power supply voltage: 380V ± 10% / three-phase four-wire, frequency: 50HZ total power: about 25KW

2: Ambient temperature: 0-40 ° C, relative humidity: 60-95% RH.
