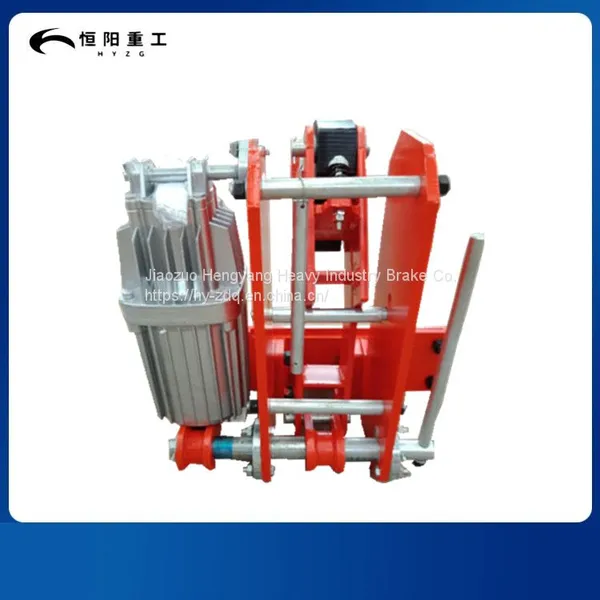

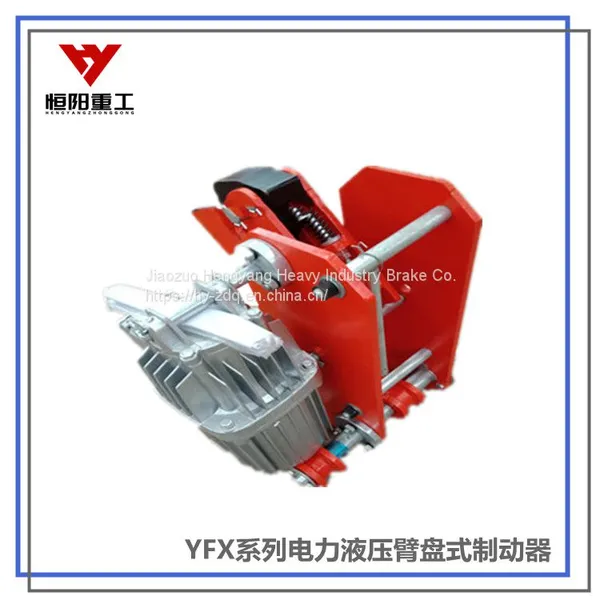

Help CenterYFX-800-80 Electric Hydraulic Windproof Iron Wedge Brake Hengyang Heavy Industry Has an Explosion-proof Certificate
Related Products
-
YFX-350/80 Hengyang Heavy Industry's Electric Hydraulic Windproof Iron Wedge Brake Has a Compact Structure and Beautiful AppearanceCNY 2800 - 4500MOQ: 5 Units -
YFX-500/80 Hengyang Heavy Industry's Electric Hydraulic Windproof Iron Wedge Brake Friction Block is Made of High Wear-resistant SteelCNY 2800 - 4500MOQ: 5 Units
-
YFX-550/80 Hengyang Heavy Industry Electric Hydraulic Windproof Iron Wedge Brake Installation Windproof Braking MeasuresCNY 2800 - 4500MOQ: 5 Units
-
YFX-600/80 Hengyang Heavy Industry Electric Hydraulic Windproof Iron Wedge Brake With Reliable PerformanceCNY 2800 - 4500MOQ: 5 Units
-
YFX-630/80 Hengyang Heavy Industry Electric Hydraulic Windproof Iron Wedge Brake Self Lubricating BearingCNY 2800 - 4500MOQ: 5 Units
This type of brake is safe to use, has strong reliability, and is also a key mechanical foundation component in the high-tech product category. The development of this type of brake has timely filled the gap in China and has been widely used as a windproof device for railed cranes such as gantry cranes, loading and unloading machines, and gantry cranes used in the open air in ports, docks, railways, etc. But the feedback from the people who use it is very good.
The electric hydraulic windproof iron wedge brake is widely used for windproof braking of outdoor medium and heavy lifting machinery in working conditions and auxiliary braking in non working conditions. The electric hydraulic windproof iron wedge brake generally acts on the passive wheel and then applies direct braking, which can effectively prevent the braking wheel from rolling displacement under the action of wind.
Structurally, the use of spring on brakes and hydraulic release brakes has many advantages.
It is mainly used on medium and heavy equipment such as docks and material yards, as it can provide safe anchoring function. When manufacturing the electric hydraulic windproof iron wedge brake, all pins are made of high-quality stainless steel, and all hinge points are equipped with self-lubricating sleeves.
The powder metallurgy friction plate installed on the electric hydraulic windproof iron wedge brake is not only wear-resistant but also high-temperature resistant, and the friction coefficient is also very stable. If a high-quality disc spring is used, its service life can exceed two million times. The oil cylinder has also added a sight glass, which makes it easier to observe the working condition of the disc spring and detect any oil leakage in a timely manner.
It adopts a standard throttle valve, so its upper gate speed can be adjusted, and manual adjustment of the brake release clearance is also very convenient and fast. The electro-hydraulic windproof iron wedge brake is mainly used for windproof braking of various rail cranes working in the open air, such as gantry cranes, Gantry crane, loading and unloading bridges, etc. in ports, docks, railways, etc. Sometimes it can also work together with anchoring devices, windproof cables, etc., to provide safe windproof braking measures when the crane is not in operation.
