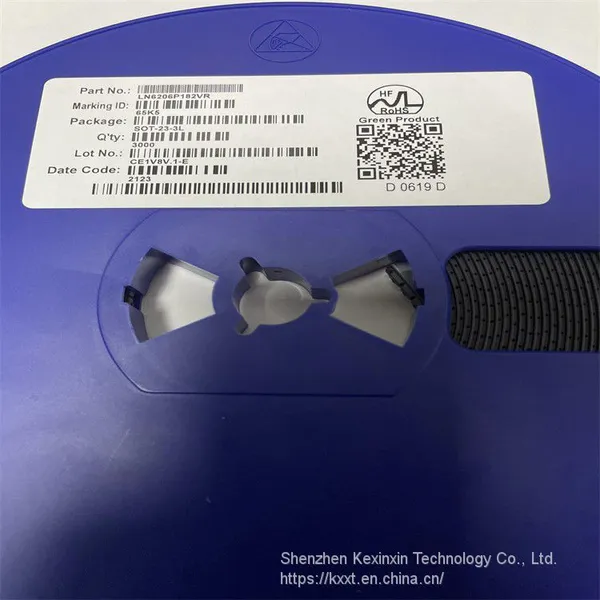

Help CenterLN6206P182VR Marking Code: 65K5 SOT-23-3L Natlinear LDO Voltage Regulators
Related Products
-
LP4056HSPF ESOP-8 MARKING CODE: LPS LP4056H YWX 1A Standalone Linear Li-Ion Battery ChargerUS$ 0.08 - 0.1MOQ: 10 Pieces -
LT1963EST-2.5#TRPBF Analog Devices LDO Voltage Regulators 1.5A, L N, Fast Tran Resp LDO RegsUS$ 4 - 6.5MOQ: 1 Piece
-
MP2303ADN-LF-Z Monolithic Power Systems (MPS) Switching Voltage Regulators 3A,28VSync Rectified Step-Down ConverterUS$ 0.35 - 1MOQ: 1 Piece
-
AD680JRZ Analog Devices Voltage References IC, MONO 2.5V REFERENCE ICUS$ 4.5 - 7.5MOQ: 1 Piece
-
ADR423ARZ-REEL7 Analog Devices Voltage References 3.0 Voltage ReferenceUS$ 5 - 8.5MOQ: 1 Piece
Product Overview
The LN6206 series is developed using CMOS technology with low voltage difference and high accuracy Output voltage, low consumption current positive voltage type voltage regulator. Due to the built-in low On state resistance transistor, therefore with low voltage difference, can obtain a larger output current. In order to ensure that the load current does not exceed the current capacity of the output transistor, an overload is built-in Current protection circuit, short circuit protection circuit. Due to the use of small seals such as SOT-89-3, SOT-23-3L, and SOT-23-3B It can be installed with high density.
■ Purpose Battery powered equipment Reference voltage source Cameras, video cameras Mobile phone Communication tools Product Features Selectable output voltage: can be selected in the range of 1.2 to 5.0V, And graded in units of 0.1 V High output voltage accuracy: up to ± 1.0% or ± 2.0% accuracy Low static power consumption: 2 µ A (TYP.) Low input output pressure difference: typical value of 160 mV (output of 3.0V) Product, when IOUT=50mA) Large output current: can output 250mA (VIN ≥ VOUT+1v) Built-in protection: built-in overcurrent protection and short-circuit protection circuit Adopting small packaging: SOT-89-3, SOT-23-3, SOT23-3B And the packaging required by the customer
■ Packaging SOT-89-3 SOT-23-3L/SOT-23-3B
