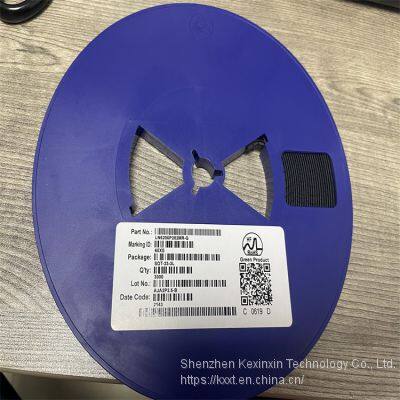

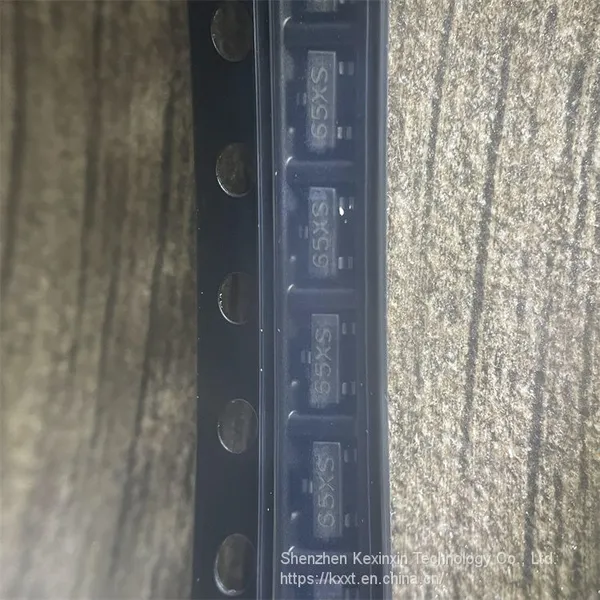

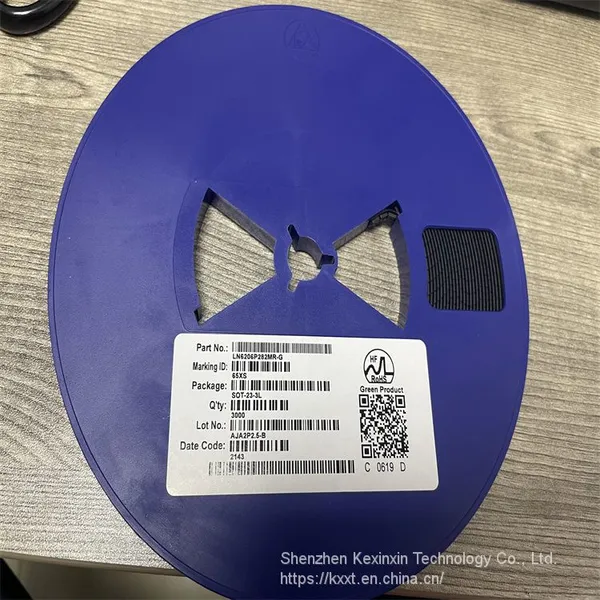

LN6206P282MR-G Voltage Regulalor Sot-23 Linear

LN6206

Low Power Low Voltage Differential Output Current CMOS Stabilizer

The LN6206 series is developed using CMOS technology with low voltage difference and high accuracy

Output voltage, low consumption current positive voltage type voltage regulator. Due to the built-in low

On state resistance transistor, therefore with low voltage difference, can obtain a larger output current.

In order to ensure that the load current does not exceed the current capacity of the output transistor, an overload is built-in

Current protection circuit, short circuit protection circuit.

Due to the use of small seals such as SOT-89-3, SOT-23-3L, and SOT-23-3B

It can be installed with high density.

■ Purpose

Battery powered equipment

Reference voltage source

Cameras, video cameras

Mobile phone

Communication tools

Product Features

Selectable output voltage: can be selected in the range of 1.2 to 5.0V,

And graded in units of 0.1 V

High output voltage accuracy: up to ± 1.0% or ± 2.0% accuracy

Low static power consumption: 2 µ A (TYP.)

Low input output pressure difference: typical value of 160 mV (output of 3.0V)

Product, when IOUT=50mA)

Large output current: can output 250mA (VIN ≥ VOUT+1v)

Built-in protection: built-in overcurrent protection and short-circuit protection circuit

Adopting small packaging: SOT-89-3, SOT-23-3, SOT23-3B

And the packaging required by the customer

■ Packaging

SOT-89-3

SOT-23-3L/SOT-23-3B
