PUR polyurethane anti-seawater corrosion cable resistant to decomposition of underwater microorganisms Marine cable tensile zero buoyancy robot umbilical cable

PUR polyurethane anti-seawater corrosion cable resistant to decomposition of underwater microorganisms Marine cable tensile zero buoyancy robot umbilical cable

Product features:

High flexibility, bending resistance, oil resistance, corrosion resistance, UV resistance, anti-aging, tensile resistance, cold resistance, low temperature resistance, anti-freezing, waterproof, waterproof solution and microbial resistance, oil and coolant resistance, radiation resistance, ozone resistance, weather resistance, salt spray corrosion, solvent resistance, scratch resistance, bending resistance, bending resistance and torsion resistance

Scope of application:

It is suitable for various types of underwater diving motor, underwater robot, underwater unmanned underwater vehicle, underwater monitoring, underwater operation, etc., as well as the use of military vessels and ships through the warehouse connection cable, the cable has good resistance to seawater corrosion and Marine microbial decomposition.

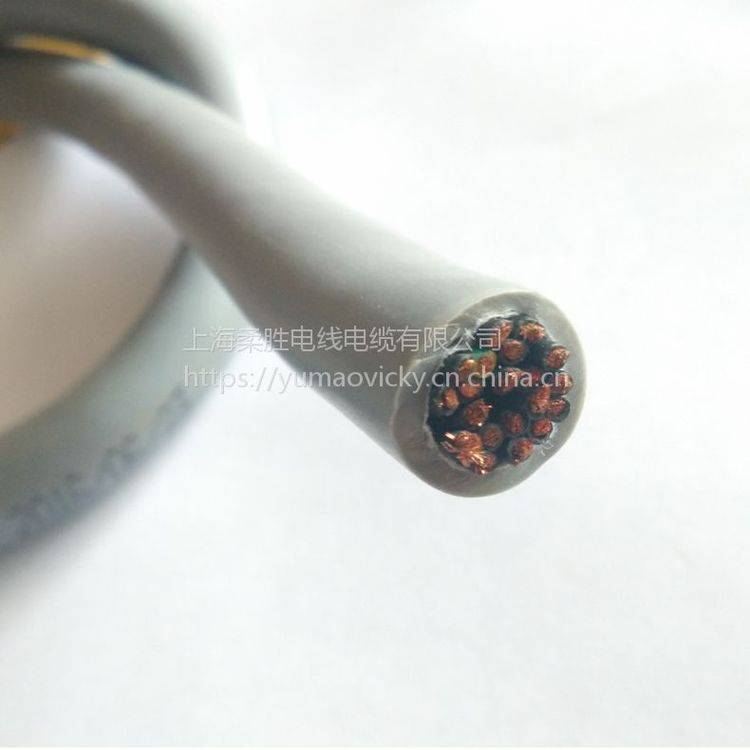

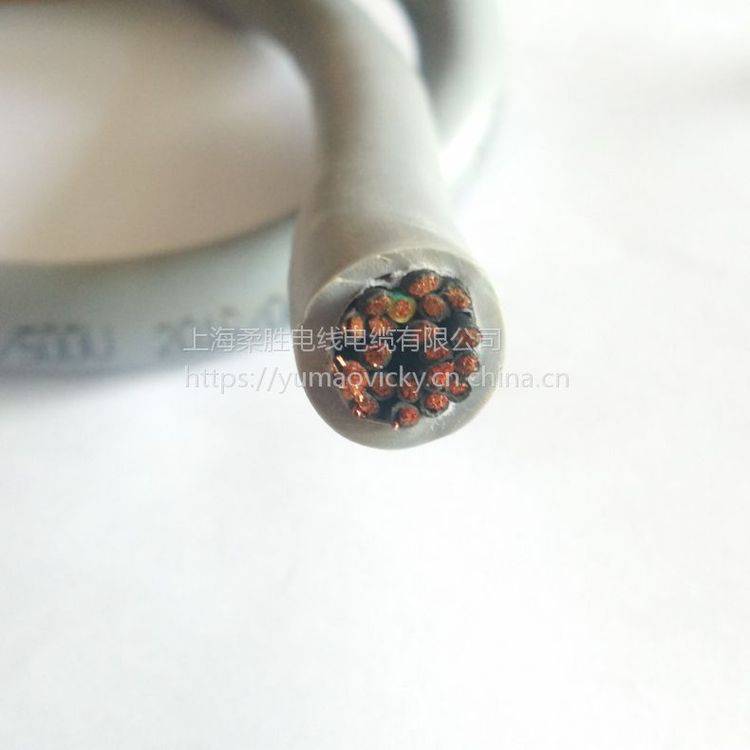

Cable structure:

Conductor: multi-strand ultrafined oxygen-free copper wire, conforming to VDE0295CLASS6 standard

Insulation: Special Acrylic PVC blend or TPE(optional)

Color: ≤0.5mm Color: Brown, black, blue, purple, pink, orange

≥0.5mm Color indicates: black number white number number, more than 3 cores with yellow-green ground cable (yellow-green optional)

Shielding: tinned copper wire textile shielding, density: 85% or more

Jacket: polyurethane (PUR) Color: black, gray, orange

Rated voltage: cross section

Test voltage: 2500V

Operating temperature range: fixed installation -50℃ to +105℃

Mobile installation: -30℃ to +90℃

Bending radius:

Fixed installation: 5 x cable diameter (D)

Mobile installation:

When the travel is less than 10 meters, the bending radius is 7.5×d

When the stroke is ≥10 meters, the bending radius is 10×D

Main products of Rousheng Company:

Zero buoyancy cable, anti-seawater cable, underwater robot cable, floating cable, underwater photoelectric composite cable, high flexible tow chain cable, Low temperature and cold resistant cable, cable, oil resistant cable, lift cable, high flexibility and torsion cable, polyurethane (PUR/TPU) tow chain cable, servo cable, driving handle line, video transmission cable, encoder cable, sensor signal line, robot cable, flat cable, elevator cable, crane cable, reel cable, grab machine cable, scraper cable, rock drill cable , gantry cable, sling cable, elevator cable, reel cable, tow chain cable, tow chain video cable

Product customization description:

Shanghai Rooseng cable can customize various types and specifications of special purpose wire and cable according to customer requirements, customers provide samples or design drawings, our company can process according to the drawing and sample, and inform the user in a timely manner, for the need to optimize our company will communicate and negotiate with the user in a timely manner, if not processed will inform the user and return the sample. Technical support, Mr. Gong, tel: 13482197396, Q2939591145, WEIXIN13482197396.
