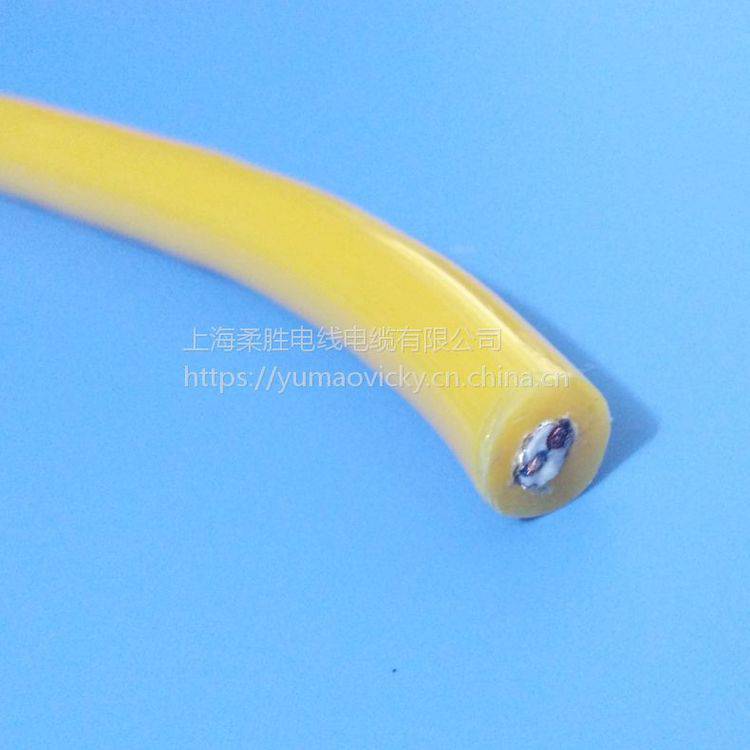

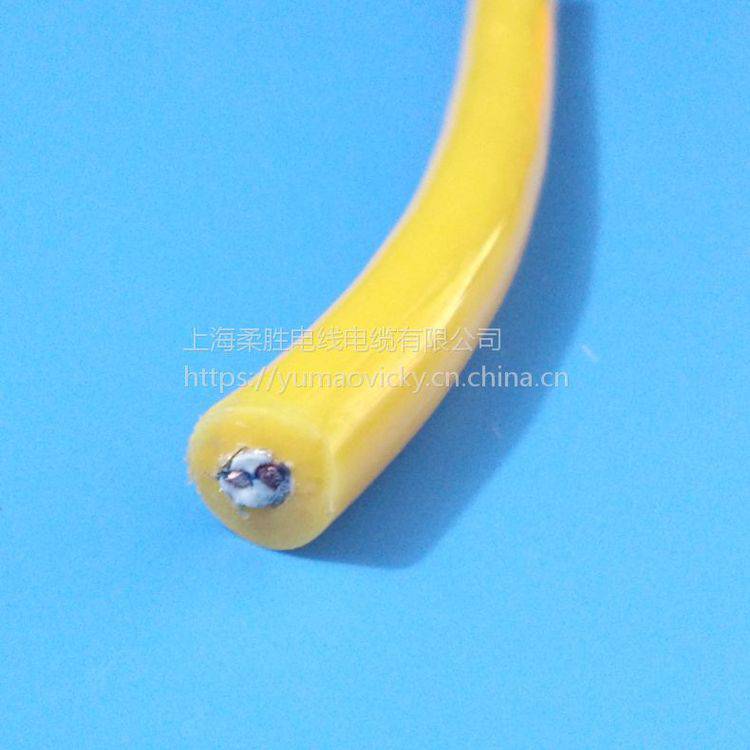

Polyurethane PUR Anti-seawater Corrosion Thickened ROV Umbilical Cable 2-core 0.75|1.0|1.5|2|2.5|3 Marine Underwater Cable

Polyurethane PUR anti-seawater corrosion thickened ROV umbilical cable 2-core 0.75|1.0|1.5|2|2.5|3 Marine Underwater cable

ROV umbilical cable manufacturers, products cover single-core -60 core, 0.1MM2-180MM2 of all series of products, special purpose ROV umbilical cable can be customized by telephone processing!

ROV umbilical cable Application scope: underwater unmanned submersible ROV and his underwater intelligent equipment

ROV umbilical cable application example: Underwater robot submersible motor underwater monitoring underwater mapping underwater archaeology

ROV umbilical cable performance: Short skein pitch, anti-crosstalk characteristics, suitable for high-speed signal circuit configuration

ROV umbilical cable features: anti-seawater, anti-oil, cold resistance, anti-corrosion, anti-UV, flame retardant, long bending life, suitable for underwater fast moving installation.

ROV umbilical cable structure:

Conductor: Using multiple strands of ultrafine fine stranded oxygen-free copper wire

Insulation: Special Acrylic PVC blend or TPE(optional)

Color: core line color separation

Yellow and green lines: Optional

Shielding: tinned copper wire textile shielding, density: 85% or more

Sheath: Polyurethane (PUR)

Color: Black, gray, orange

Rated voltage:

Cross section

Section ≥o.5mm2:300/500v/450/750v

Test voltage: 2500V

Operating temperature range:

Fixed installation -50℃ to +105℃

Mobile installation: -30℃ to +90℃

Bending radius:

Fixed installation: 5 x cable diameter (D)

Mobile installation: when the travel is less than 10 meters, the bending radius is 7.5×d; When the stroke is ≥10 meters, the bending radius is 10×D

Polyurethane PUR anti-seawater corrosion thickened ROV umbilical cable 2-core 0.75|1.0|1.5|2|2.5|3 Marine Underwater cable
