China Customized High Efficient Pulp Thickener for Gold Ore Concentration Tailing

FOB Price

US$ 2500 - 4500 / Set

1 Set(Min. Order)

Port Qingdao
Payment TermsT/T Credit Card PayPal Cash
Delivery Detail15 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Yuxiang Brand	Place of Origin	China
Model Number	Depend on the models	Certification	ISO
After-sales Service Provided	Engineers available to service machinery overseas	Warranty	12 months
Dimension(LWH)	Depend on the models	Application	Mining
Condition	New	Power(W)	15kw
Motor Type	AC Motor

Product Description

China customized high efficient pulp thickener for Gold ore concentration tailing

Product Description

Thickening or dewatering may be defined as the removal of a portion of the liquid from a pulp or slime made up of a mixture of finely divided solids and liquids. It is mainly used for the concentration of concentrates and dewatering of tailings in ore dressing plants.

Features:(1) Adding flocculants increases the particle size of settling solid particles, thereby accelerating the settling speed;
(2) Install inclined plates to shorten the settling distance of ore particles and increase the settling area;
(3) Give play to the role of flocculation, filtration, compression and improving the treatment capacity of the mud sediment dense phase layer;
(4) Equipped with complete automatic control facilities.

Specification

Specification	Thickening tank		Sedimentation area(m2)	Rotation of rake(r/min)	Motor		Capacity (t/d)
Specification	Diameter (m)	Depth(m)	Sedimentation area(m2)	Rotation of rake(r/min)	Model	Power	Capacity (t/d)
NZS1	1.8	1.8	2.55	0.5	Y9CL-6	1.1	1.3-5.6
NZS2.5	2.5	1.8	4.9	0.33	Y9CL-6	1.1	5-10.8
NZS3	3.6	1.8	10.2	0.33	Y9CL-6	1.1	5-22.4
NZS6	6	2.95	28	0.3	Y9CL-4	1.5	14-62
NZS8	8	3.318	50.2	0.27	Y132S-6	3
NZS9	9	3	63.5	0.25	Y132S-6	3	32-150
NZS12	12	3.6	113	0.19	Y132S-6	3	250
NZSG-2.5	2.5	1.85	4.9		Y9CL-6	1.1	5-22.4
NZSG-3A	3	1.8	7		Y100L-6	1.5	5-23.4
NZSG-3	3.6	1.8	10.2		Y100L-6	1.5	5-25
NZSG-5	5	2.956	16		Y9CL-4	1.5	16-90
NZSG-6	6	2.956	28.3		Y9CL-4	1.5	98
NZSG-7	7	3	38.5		Y112M-6	2.2
NZSG-8	8	3.318	50.2		Y132S-6	3
NZSG-9	9	3.376	63		Y132S-6	3	210
NZSG-12	12	3.6	113		Y132S-6	3	370
NZSG-15	15	3.6	176		Y132M2-6	5.5	580
NZSG-18	18	4.4	255		YCT200-413	7.5	960
NZSG-20	20	4.4	315		Y160M2-8	7.5	1400

Application

Thickeners are important and widely used for mineral processing to make concentrate from ROM (raw ore) . Specifically, thickeners are used to increase the solid content of concentrate slurry (concentrate + process water) so that we can effectively deliver the concentrated slurry and re-use the process water.

Working Principle

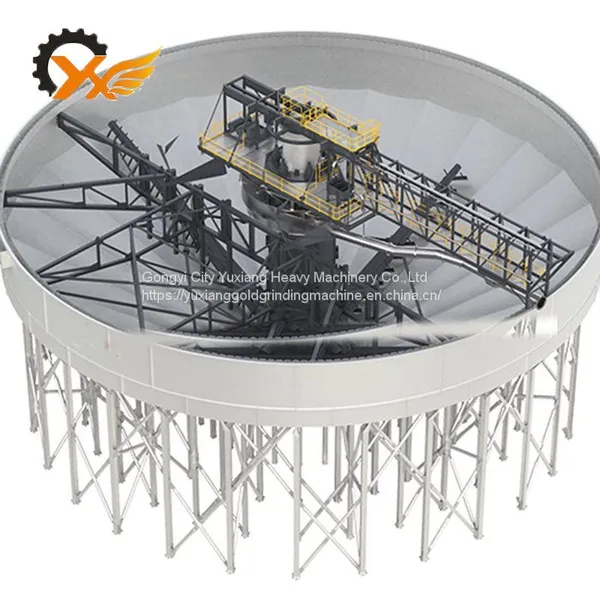

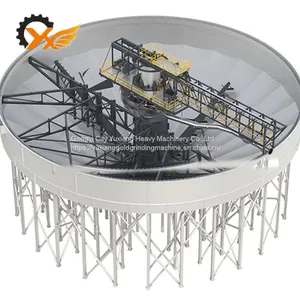

The thickener is mainly composed of round concentration basin and rake scraper. the solid particles hanging in the thickener fall down with the function of gravity, the pulp in the upper turn into clean water, so that the separation can be realized. The slurry deposited on the bottom of the concentration basin is discharged by the rake scraper to central discharging continuously, and the clean water will overflow along the upper edge of the concentration basin.

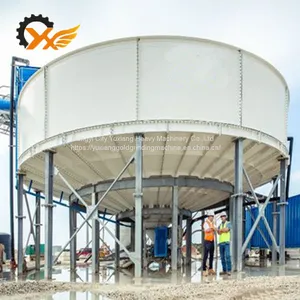

Product Case

Company Profile

GONGYI YUXIANG HEAVY MACHINERY CO.,LTD. is an professional manufacturer of wet pan mill&mining series machines,with R&D team, excellent technical team, sales team and strong production capability, we have been devoting our self to the development and promotion of gold mining machinery and all our products have got CE certificates.
