Cyclone Stable Operation Dust Collector Mineral Separator Clean Dust Air Hydrocyclone Hydro Cyclone Provided

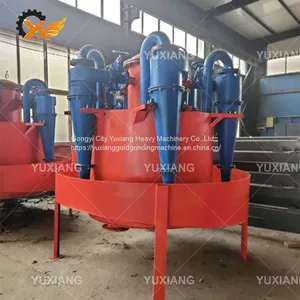

Cyclone Stable Operation Dust Collector Mineral Separator Clean Dust Air Hydrocyclone Hydro Cyclone Provided thumbnail-1
Cyclone Stable Operation Dust Collector Mineral Separator Clean Dust Air Hydrocyclone Hydro Cyclone Provided thumbnail-2
Cyclone Stable Operation Dust Collector Mineral Separator Clean Dust Air Hydrocyclone Hydro Cyclone Provided photo-1

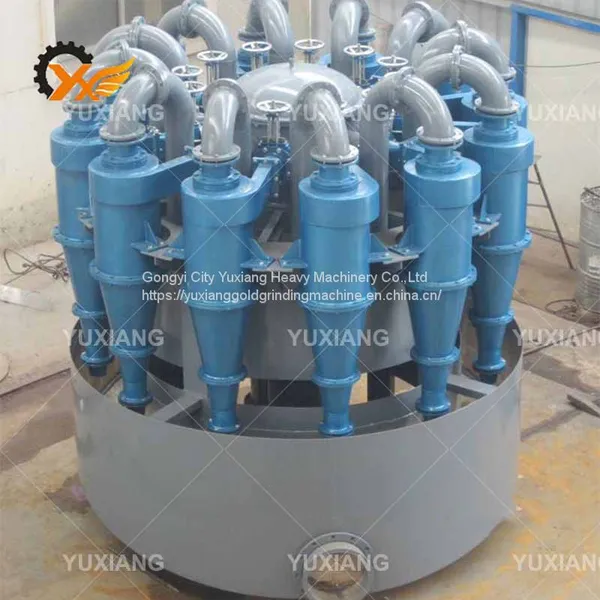

Cyclone Stable Operation Dust Collector Mineral Separator Clean Dust Air Hydrocyclone Hydro Cyclone Provided photo-2
US$ 4500 - 5500 MOQ: 1 Set
Key Specifications
Get Latest Price
Brand Name:
Yuxiang Brand
Place of Origin:
China
Model Number:
Hydrocyclone Separator
Contact Supplier Request Quote Chat Now
Gongyi City Yuxiang Heavy Machinery Co.,Ltd
Verified Business License
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
15 days

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Brand Name Yuxiang Brand
Place of Origin China
Model Number Hydrocyclone Separator
Type Other, Hydrocyclone separator
Certification EC, ISO
After-sales Service Provided Engineers available to service machinery overseas
Warranty 12 months
Weight Depend on the types
Dimension(L*W*H) Depend on the types
Voltage 380v/220v
Condition New
Power(W) 30kw

Cyclone Stable Operation Dust Collector Mineral Separator Clean Dust Air Hydrocyclone Hydro Cyclone

Product Description

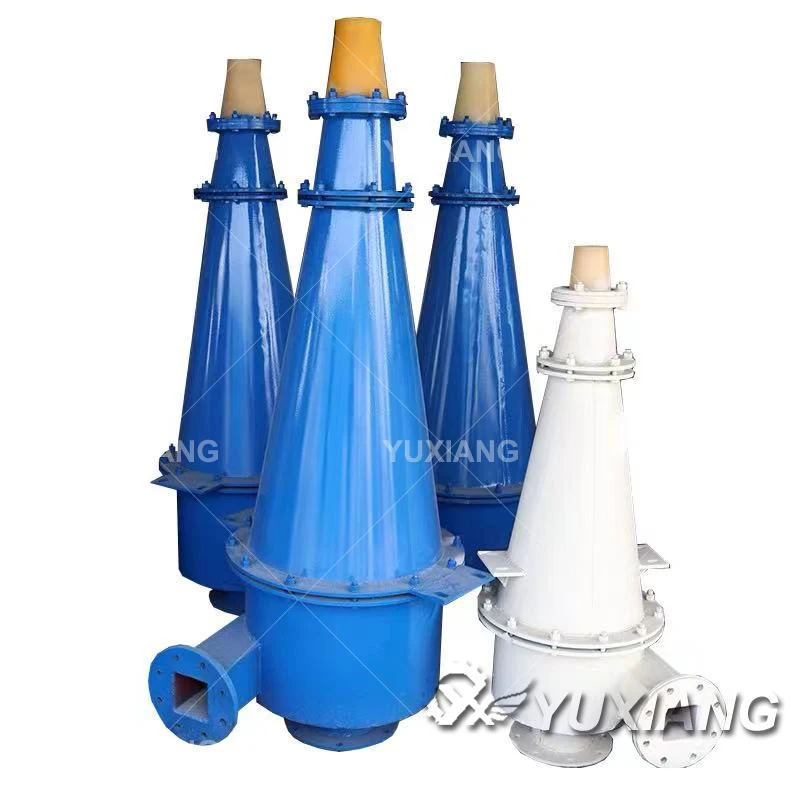

Hydro-cyclone separator machine
Hydrocyclone is a common separation and classification equipment, which is usually based on the principle of centrifugal sedimentation. It is widely used in powder process, cement, chemical, metallurgical and other industries. Trough continuous technical improvement
and proved by practical use, these kinds of powder concentrator are good in material distribution, reliable convenient in adjusting fineness, high efficient in separating, convenient in installation, easy to maintain.
Features:
1.The Hydro-cyclone Cluster adopts special wear-resistant materials, which have strong wear resistance and prolong service life.
2.The utility model has the advantages of simple structure, low cost and easy installation and operation.
3.Low investment cost,  big profit
4. High grading efficiency (up to 80% ~ 90%) and fine grading granularity.
5. Multiple sets can be used in parallel or in series to improve the classification efficiency and processing capacity.
6. Using polyurethane wear-resistant material, the service life is greatly improved.
Specification
Model
Spec_
Processing Capacity(m3/h)
Partition Size(um)
Diameter of Overflow Port(mm)
Diameter of Dust-Setting Nozzle(mm)
Inlet Pressure(MPa)
XC150
150
10-23
25-74
30-50
8-22
0.06-0.15
XC200
200
17-38
28-80
40-65
16-32
XC250
250
24-53
30-82
65-100
16-40
XC300
300
40-100
36-90
65-120
20-40
XC350
350
56-118
40-100
80-120
30-70
XC375
375
74-157
42-105
90-135
30-70
XC450
450
90-192
44-110
100-150
30-70
XC500
500
128-300
50-115
130-220
35-100
XC550
550
155-368
52-120
140-240
35-100
XC600
600
200-468
27-125
160-260
65-110
XC660
660
237-524
60-130
180-280
80-150

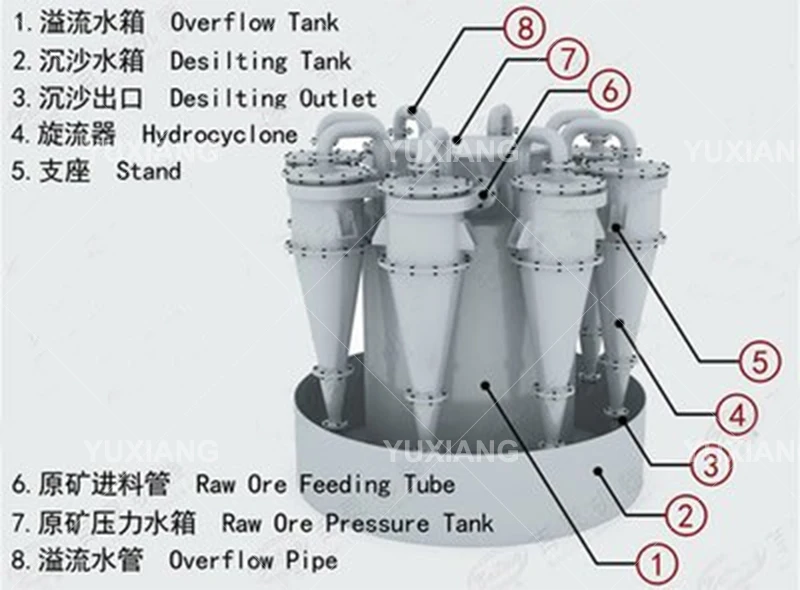

Product Structure
Application
Hydrocyclone is widely used in black and non-ferrous metal mines for grinding, grading, concentration, dewatering, desliming, ultra-fine grades, and tailings filling, damming, and recycling processes.
Structure
It is made up of overflow tank, desilting tank, desilting outlet, hydrocyclone, stand, feeding tube,  raw ore pressure tank and overflow pipe. the speed regulating motor drives the vertical drive shaft to rotate through the transmission device,and the material enters the powder dressing chamber through the inlet at the top of the separator.Then the pipe between the upper and lower cones of the medium coarse powder collecting cone falls on the distributing plate,which rotates with the vertical drive shaft,and the material is uniformly scattered around the area under the action of the inertia centrifugal force.Under the action of high-speed airflow through the inlet of the dispersed material,the coarse particles in the material are dumped to the inner wall of the powder dressing chamber by the action of inertial centrifugal force.After the collision, the kinetic energy slid down the wall and fell into the coarse powder collecting cone. The rest of the particles were rolled up by the swirling updraft, passing through the action zone of the gale leaves, under the impact of the gale leaves.

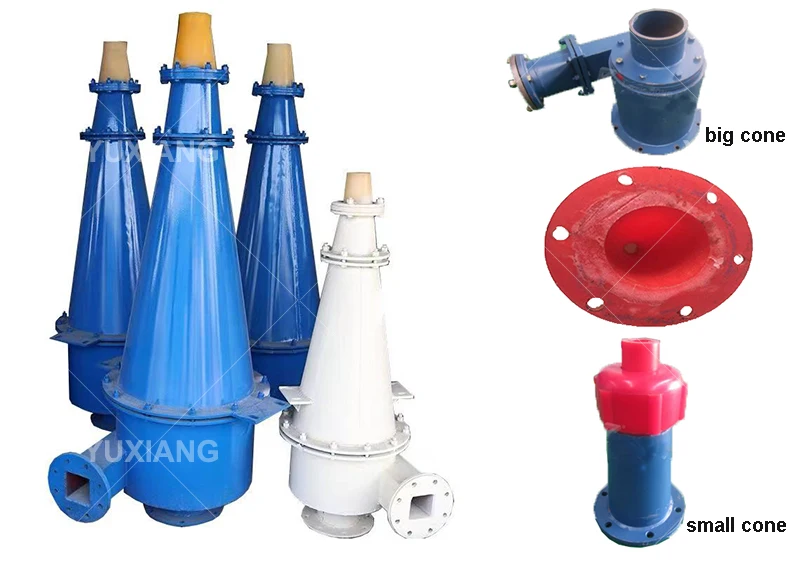

Spare Parts
